MDBH949AWS0 03 – DOOR AND LATCH PARTS – Aparts

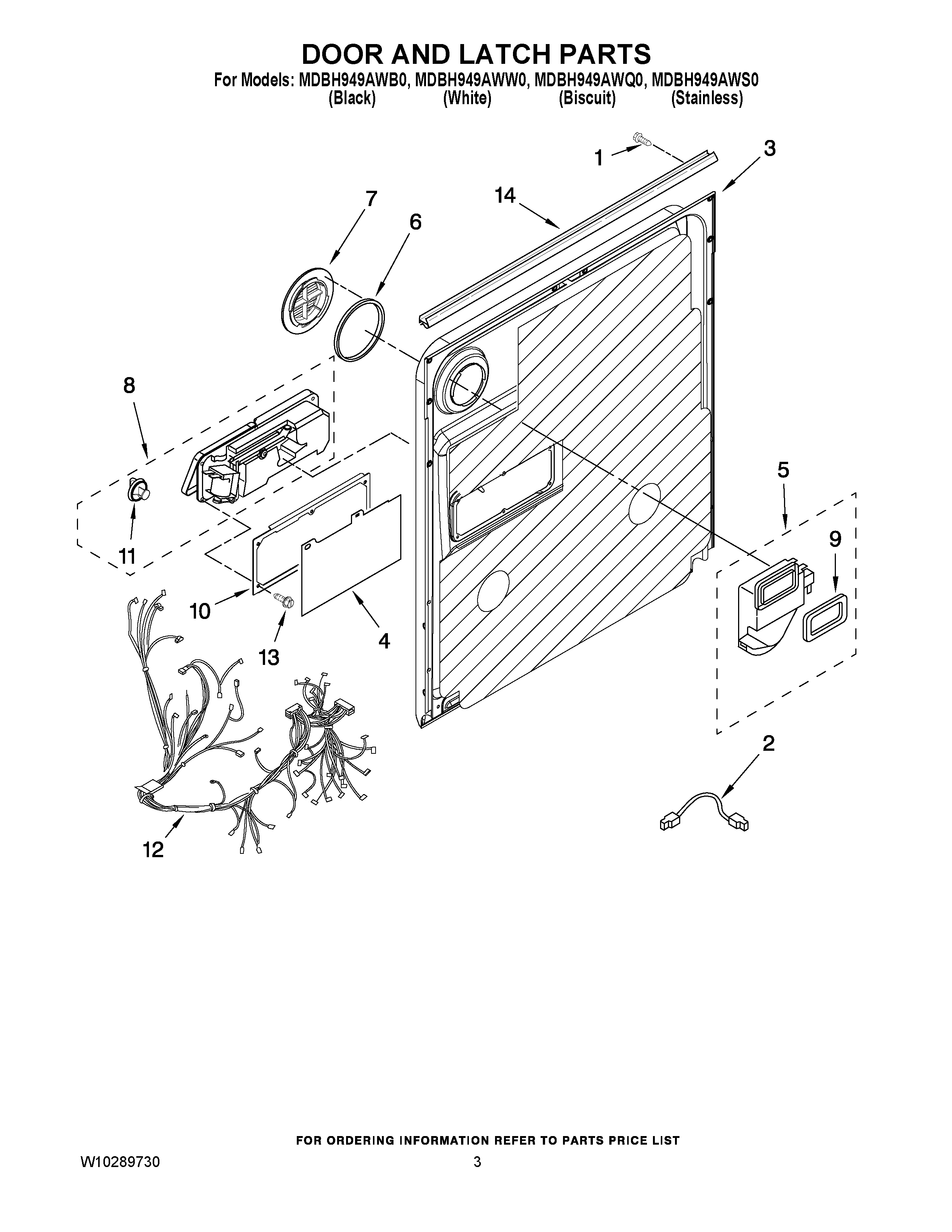

MDBH949AWS0 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	SCREW
2	MAY 8545608
3	INNER DOOR MASTIC ASSEMBLY
4	SHIELD, DISPENSER
5	VENT ASSEMBLY
6	MAY 8269259
7	MAY 8545535
8	MAY W10240176
9	SEAL, FRONT
10	BRACKET, DISPENSER
11	MAY W10199683
12	MAY 8573175
13	MAY W10177098
14	MAY 8269296
