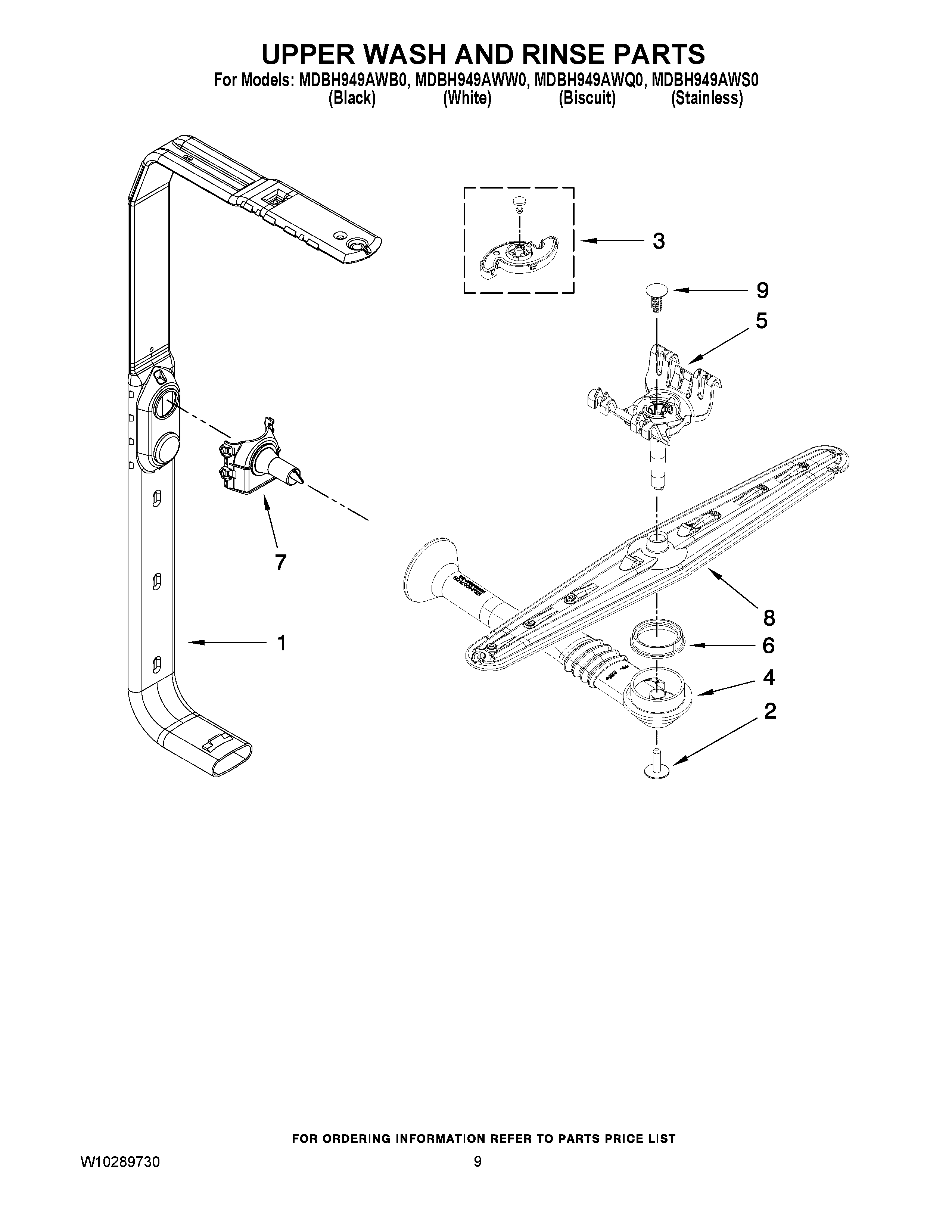

MDBH949AWS0 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1FEED TUBE SILVERWARE ZONE (ALSO INC. No.3)
2MAY 8533889
3SPRAYARM, 3RD LEVEL
4MAY W10240071
5MAY W10240072
6MAY 8268433
7NOZZLE-FEED
8SPRAY ARM
9RETAINER, PUSH-IN
