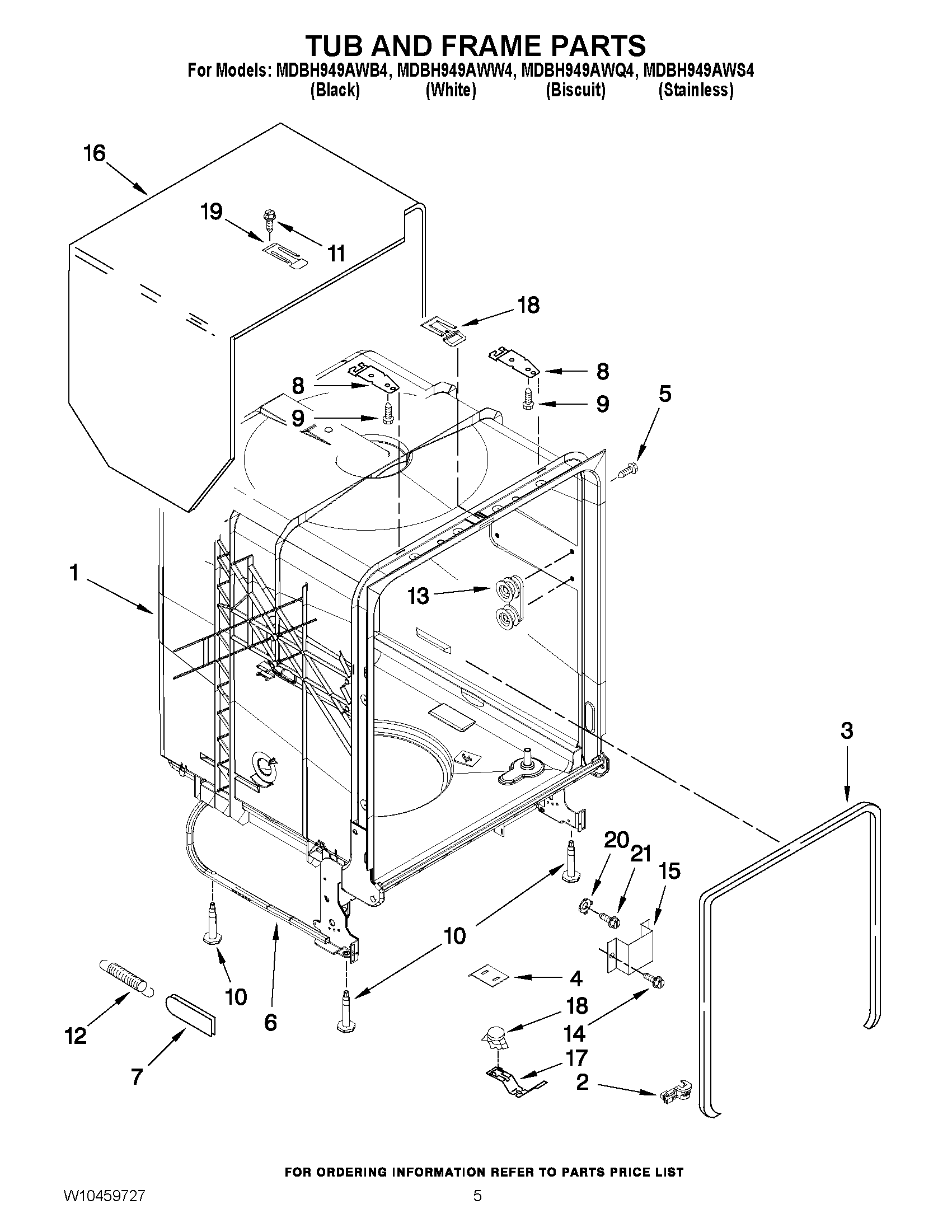

MDBH949AWS4 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	MAY W10284090
4	SHIELD, THERMOSTAT
5	SCREW
6	SUPPORT ASSEMBLY, BOTTOM
7	MAY 8268990
8	MAY 8269145
9	MAY 3367670
10	MAY 8524584
11	MAY W10165274
12	MAY 8524473
13	MAY 8270016
14	MAY 3400892
15	MAY 8268991
16	MAY 8573240
17	MAY 3378595
18	MAY W10339474
19	STRIKE, LATCH
20	WASHER, PRONGED CUP
21	MAY 3400014
