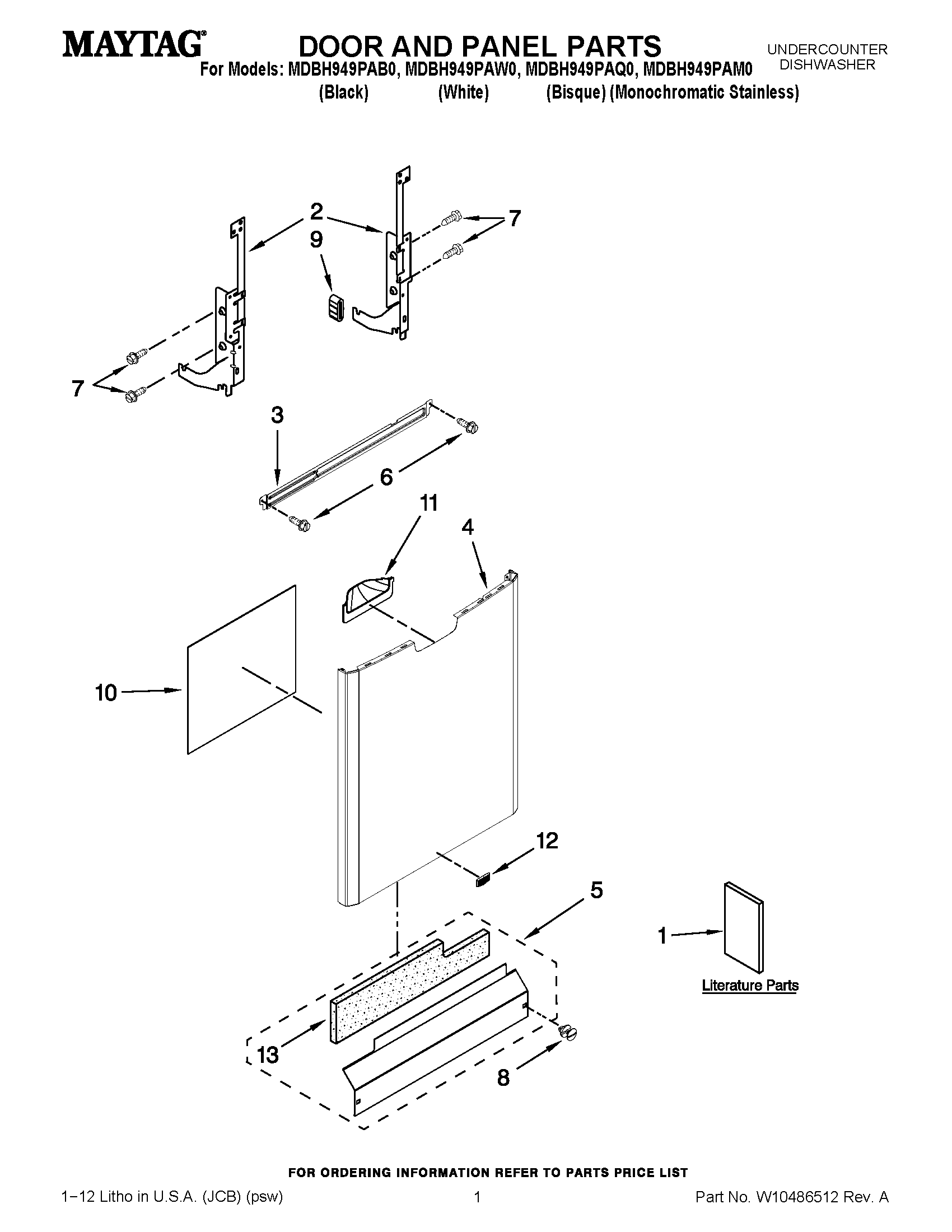

MDBH949PAB0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1	TECH SHEET (FRENCH)
1	MAY W10435039
1	MAY W10401489
1	MAY W10401493
2	ARM, HINGE (LEFT HAND)
2	ARM, HINGE (RIGHT HAND)
3	MAY W10195120
4	MAY W10438256
4	MAY W10438259
4	MAY W10438258
4	MAY W10438257
5	ACCESS PANEL (WHITE)
5	MAY W10369024
5	MAY W10369028
6	Screw
7	MAY 489470
8	SCREW (BLACK)
8	SCREW (WHITE)
8	SCREW (BISCUIT)
9	SLEEVE, FRICTION
10	MAY W10073520
11	POCKET, PANEL (BISCUIT/BISQUE)
11	MAY W10343322
11	MAY W10343320
12	BADGE (BLACK)
13	INSULATION, ACCESS PANEL
