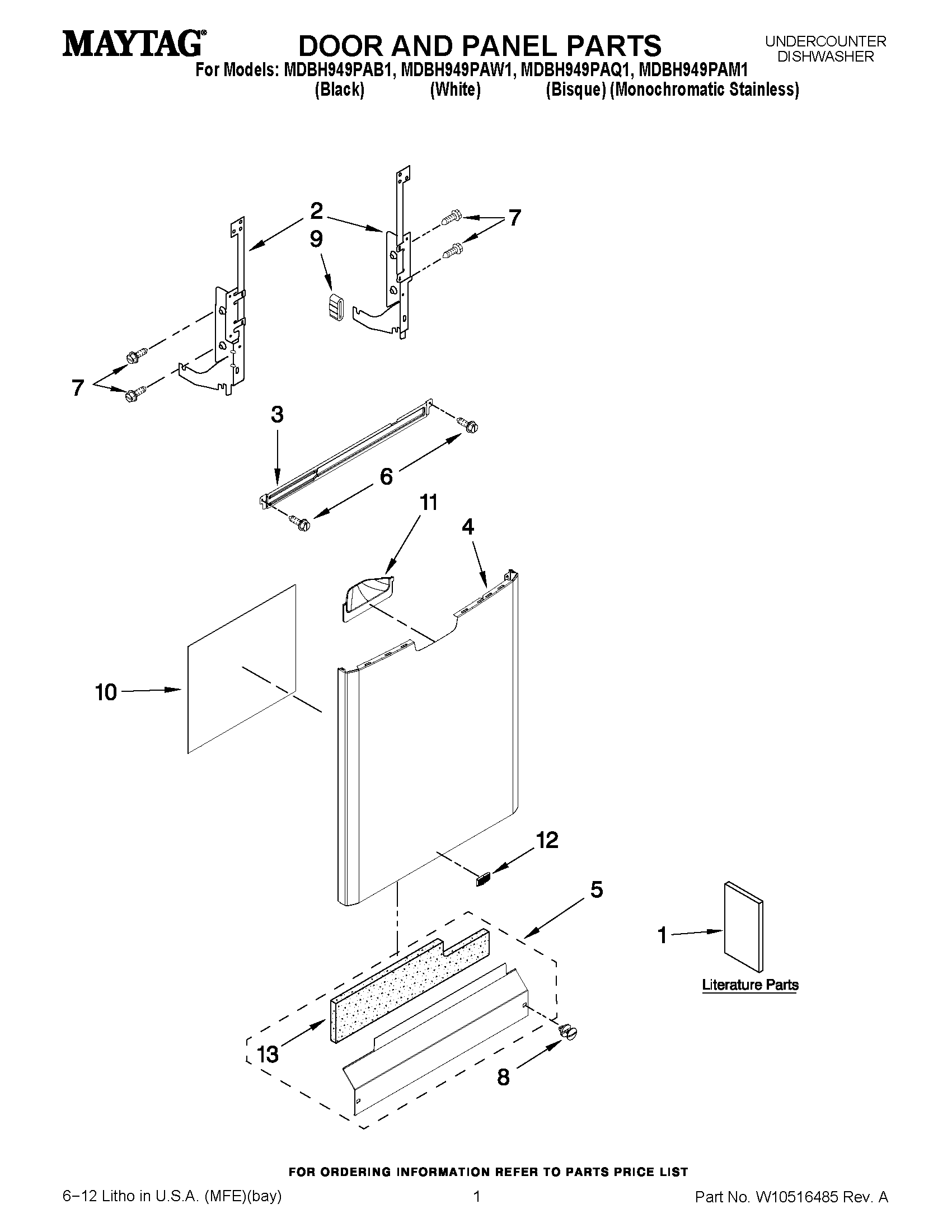

MDBH949PAB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10438313
1MAY W10490736
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1MAY W10435039
2ARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3MAY W10195120
4MAY W10438259
4MAY W10438258
4MAY W10438257
4MAY W10438256
5ACCESS PANEL (WHITE)
5MAY W10369028
5MAY W10369024
6Screw
7MAY 489470
8SCREW (BISCUIT)
8SCREW (BLACK)
8SCREW (WHITE)
9SLEEVE, FRICTION
10MAY W10073520
11MAY W10343322
11MAY W10424843
11POCKET, PANEL (BISCUIT/BISQUE)
11MAY W10343320
12BADGE (BLACK)
13INSULATION, ACCESS PANEL
