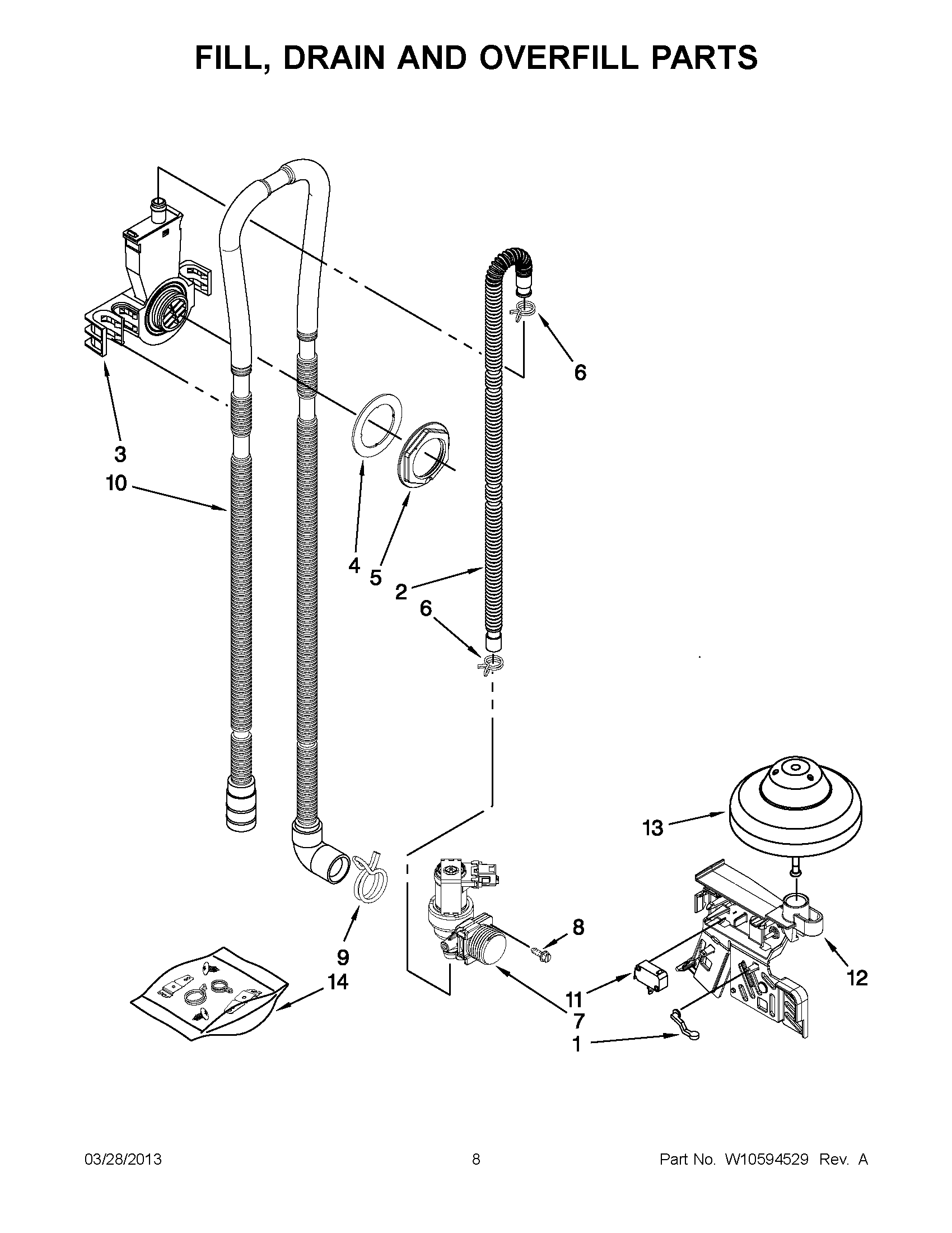

MDBH949PAB2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5MAY W10508676
6MAY 371505
7MAY W10195047
8Screw
9MAY 370445
10MAY W10418848
11MAY W10195039
12HOUSING, OVERFILL
13MAY W10346525
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
