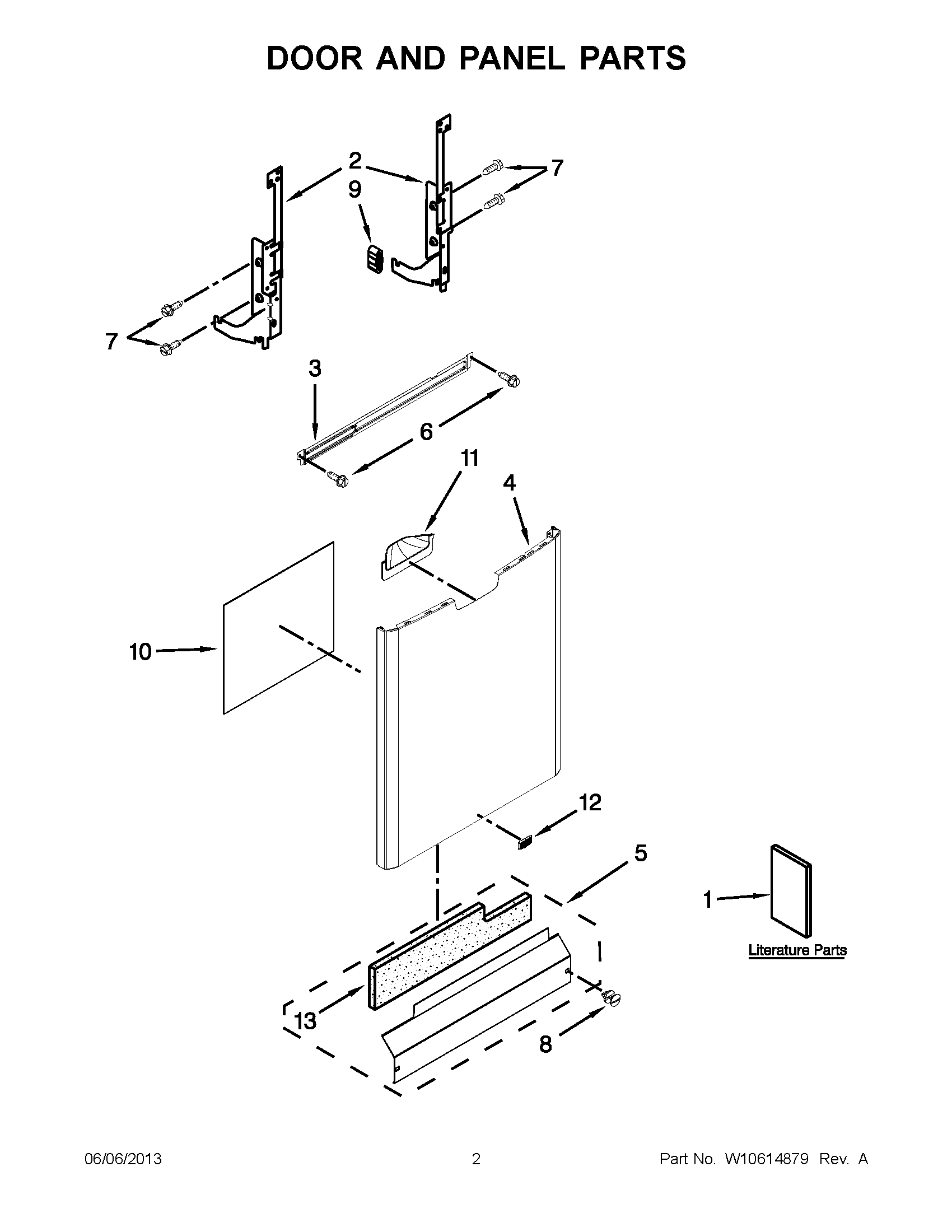

MDBH949PAB3 01 – DOOR AND PANEL PARTS

MDBH949PAB3 01 – DOOR AND PANEL PARTS

Written by

in

MDBH949PAB3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10596270
1	MAY W10580510
1	MAY W10435039
1	MAY W10490736
1	MAY W10580509
2	ARM, HINGE (LEFT HAND)
2	ARM, HINGE (RIGHT HAND)
3	MAY W10195120
4	MAY W10438256
4	MAY W10438257
4	MAY W10438258
4	MAY W10438259
5	ACCESS PANEL (WHITE)
5	MAY W10369028
5	MAY W10369024
6	Screw
7	MAY 489470
8	MAY W10503548
8	MAY W10503550
8	MAY W10503549
9	SLEEVE, FRICTION
10	MAY W10073520
11	POCKET, PANEL (BISCUIT/BISQUE)
11	MAY W10571386
11	MAY W10343320
11	MAY W10343322
12	BADGE (BLACK)
13	INSULATION, ACCESS PANEL
