MDBH949PAB4 02 – DOOR AND PANEL PARTS
Written by
in

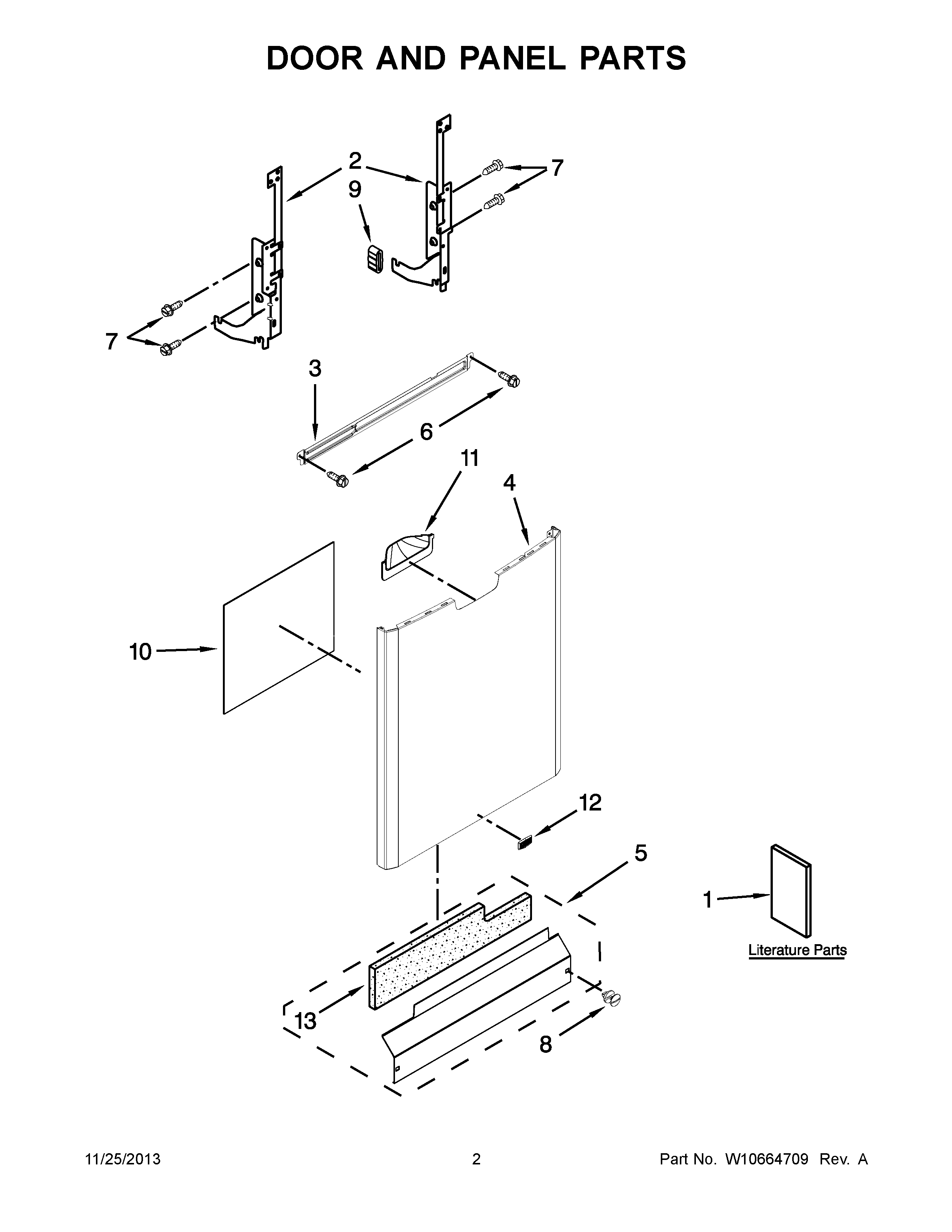

MDBH949PAB4 02 – DOOR AND PANEL PARTS
Products
Position
Product
1
MAY W10435039
1
MAY W10580510
1
MAY W10580509
1
MAY W10596270
1
MAY W10638718
2
ARM, HINGE (LEFT HAND)
2
ARM, HINGE (RIGHT HAND)
3
MAY W10195120
4
MAY W10438257
4
MAY W10438259
4
MAY W10438256
4
MAY W10438258
5
MAY W10369028
5
ACCESS PANEL (WHITE)
5
MAY W10369024
6
Screw
7
MAY 489470
8
MAY W10503549
8
MAY W10503550
8
MAY W10503548
9
SLEEVE, FRICTION
10
MAY W10073520
11
POCKET, PANEL (BISCUIT/BISQUE)
11
MAY W10343322
11
MAY W10343320
11
MAY W10402265
12
BADGE (BLACK)
13
INSULATION, ACCESS PANEL
←
