MDBH949PAB4 06 – TUB AND FRAME PARTS

MDBH949PAB4 06 – TUB AND FRAME PARTS

Written by

in

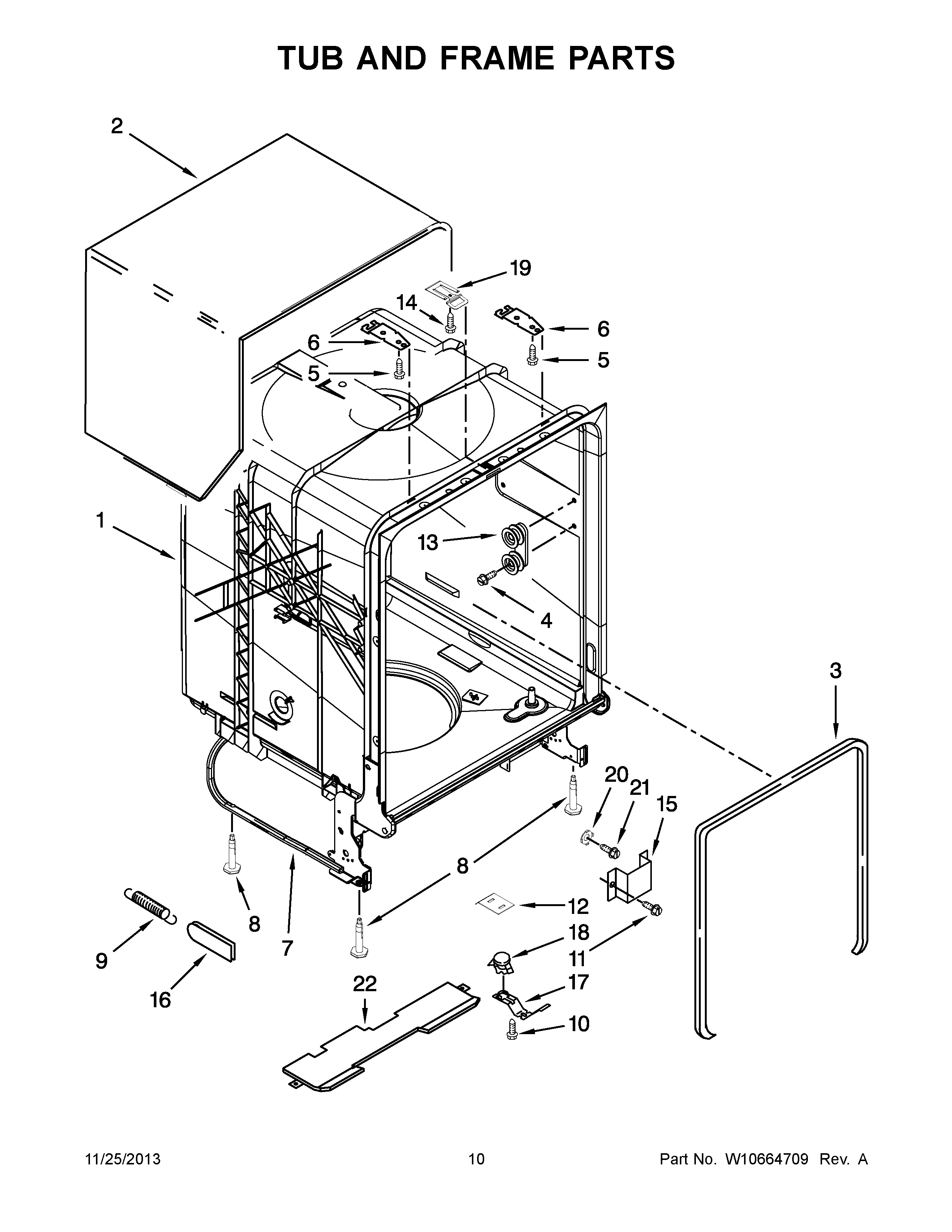

MDBH949PAB4 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10266935
2	MAY 8573239
3	MAY W10524469
4	MAY W10341745
5	MAY 3367670
6	MAY 8269145
7	MAY W10271695
8	MAY W10304228
9	MAY W10337934
10	SCREW
11	MAY W10165274
12	SHIELD, THERMOSTAT
13	MAY 8575897
14	MAY W10277003
15	MAY 8268991
16	MAY 8268990
17	MAY W10539489
18	MAY 3371618
19	MAY W10570656
20	WASHER, PRONGED CUP
21	MAY 3400014
22	INSULATION BOTTOM
