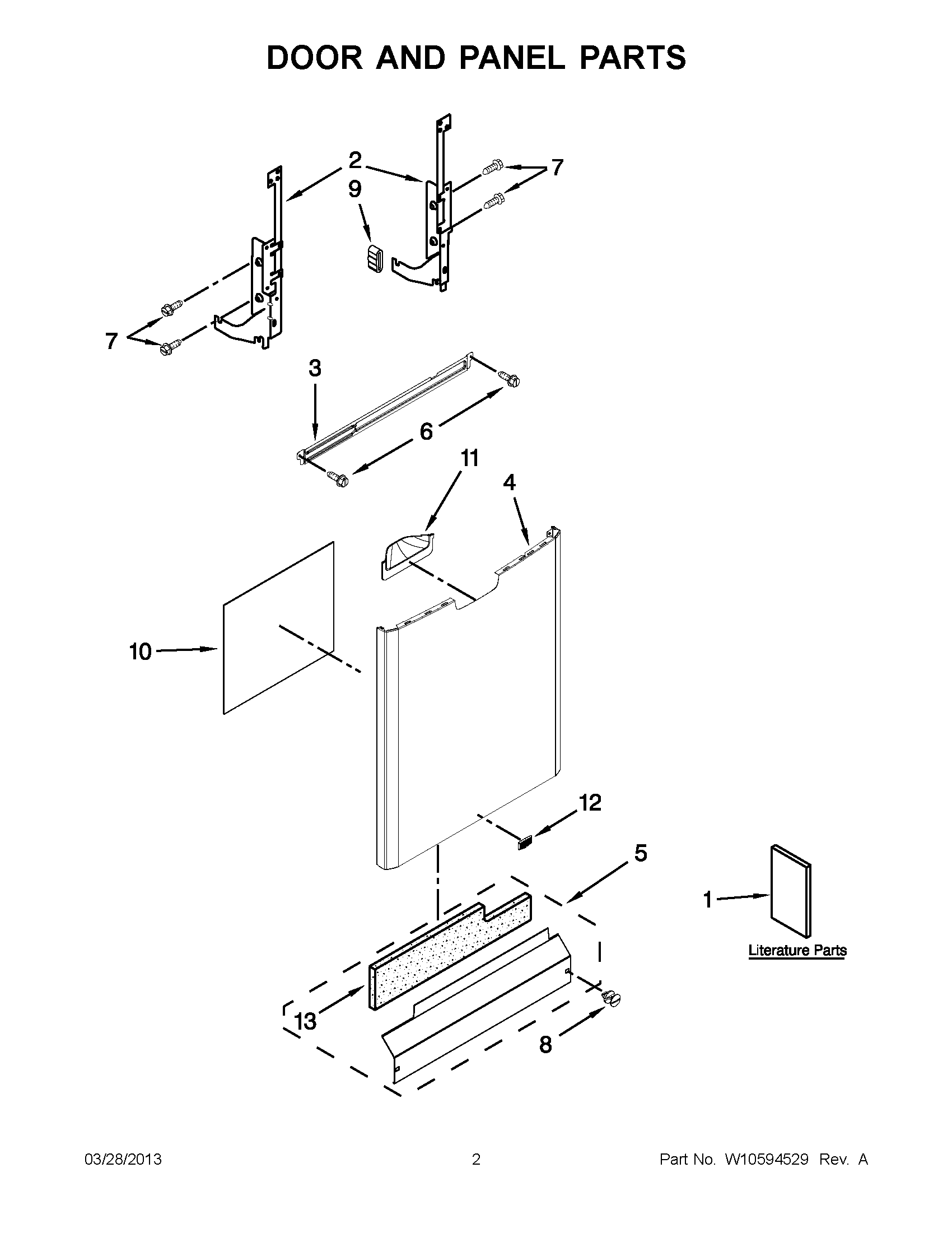

MDBH949PAM2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10438313
1MAY W10580510
1MAY W10435039
1MAY W10490736
1MAY W10580509
2ARM, HINGE (LEFT HAND)
2ARM, HINGE (RIGHT HAND)
3MAY W10195120
4MAY W10438256
4MAY W10438257
4MAY W10438258
4MAY W10438259
5ACCESS PANEL (WHITE)
5MAY W10369028
5MAY W10369024
6Screw
7MAY 489470
8MAY W10503548
8MAY W10503550
8MAY W10503549
9SLEEVE, FRICTION
10MAY W10073520
11POCKET, PANEL (BISCUIT/BISQUE)
11MAY W10343320
11MAY W10424843
11MAY W10343322
12BADGE (BLACK)
13INSULATION, ACCESS PANEL
