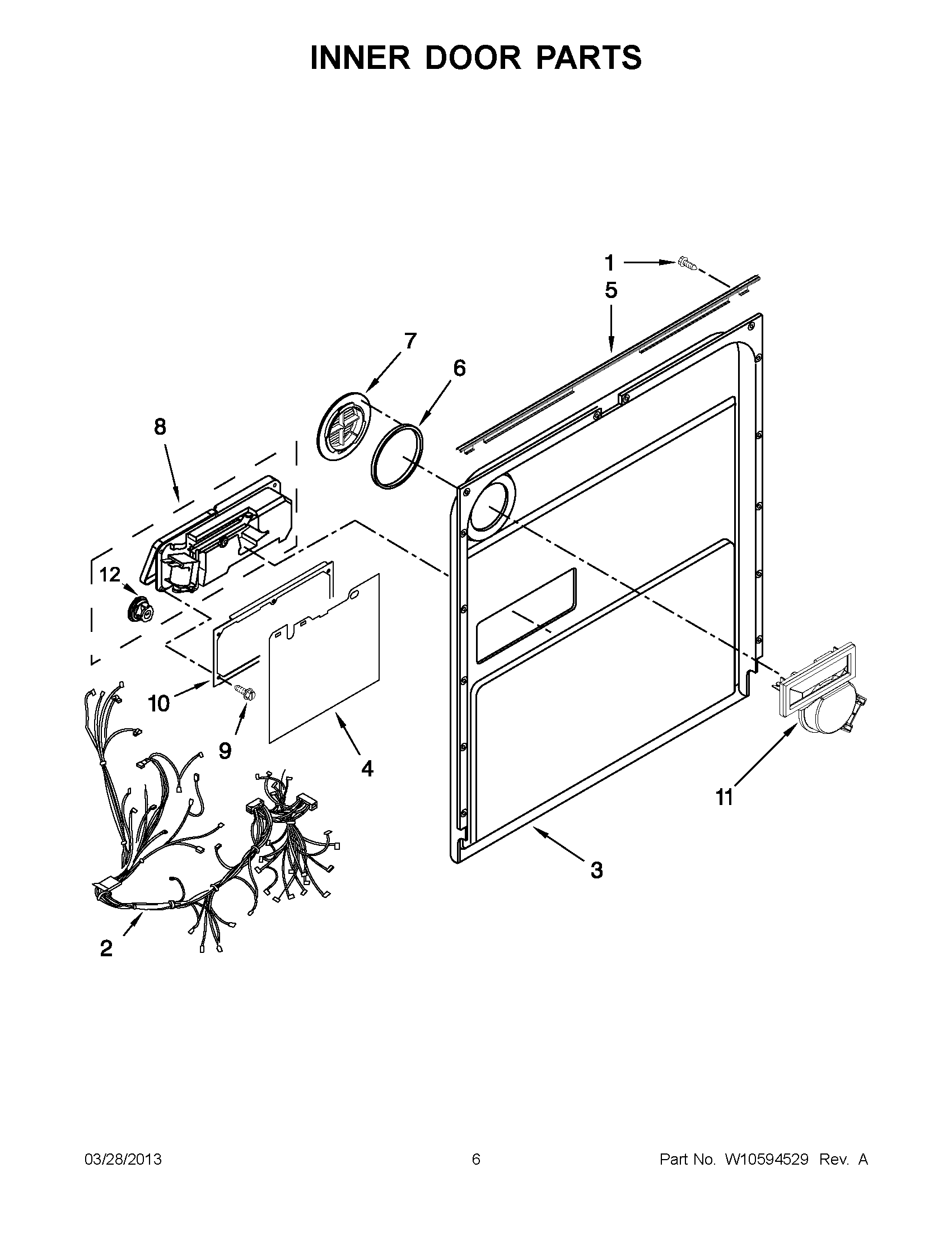

MDBH949PAM2 03 – INNER DOOR PARTS

Products

PositionProduct
1MAY W10348413
2MAY W10496101
3INNER DOOR
4MAY W10482094
5SEAL, DOOR
6MAY 8269259
7COVER, VENT
8DISPENSER ASSEMBLY
9MAY W10177098
10BRACKET, DISPENSER
11VENT ASSEMBLY
12MAY W10524922
