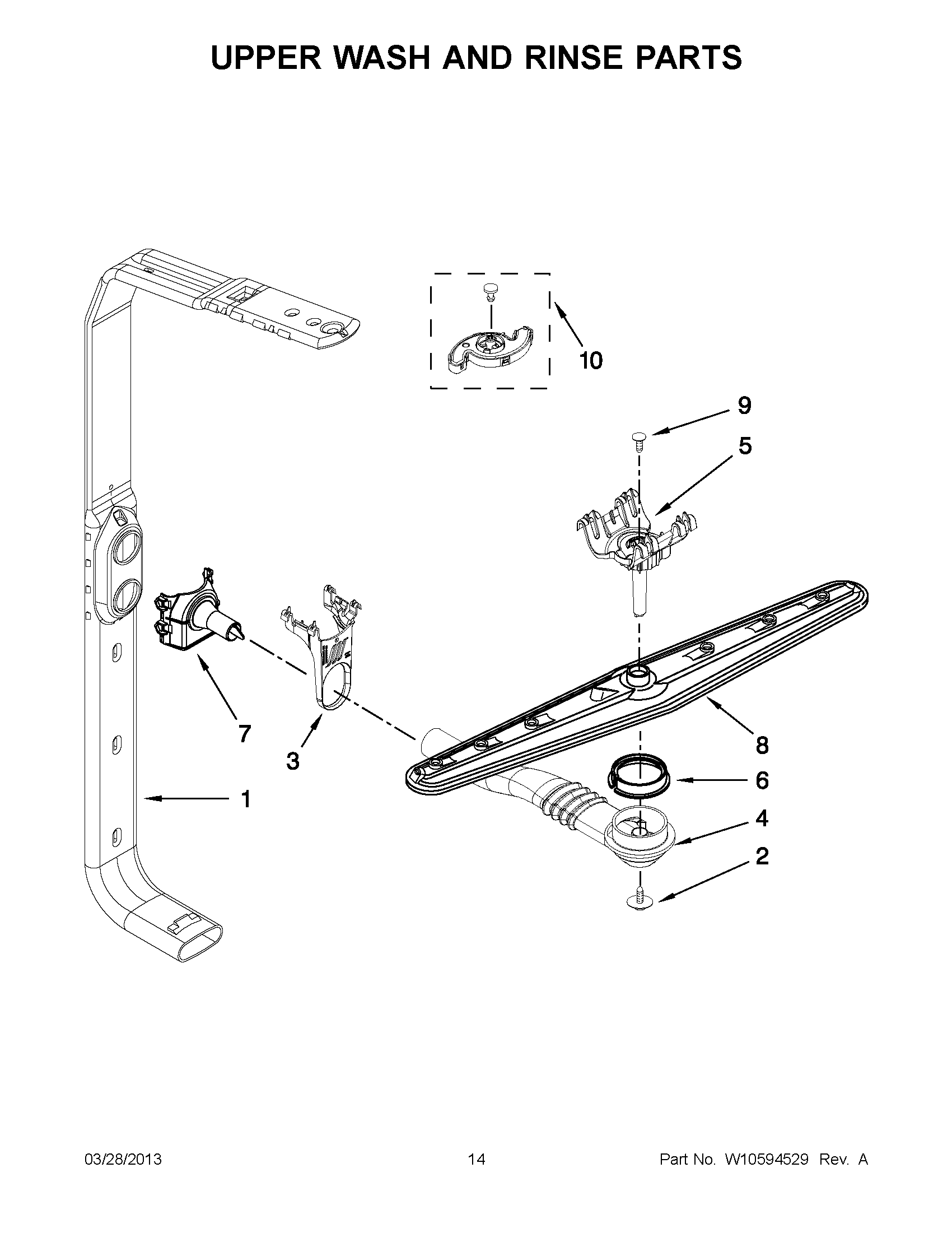

MDBH949PAM2 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	FEED TUBE ASSEMBLY (INCLUDES ITEM 3)
2	MAY W10349488
3	MAY W10199809
4	MAY W10199810
5	MAY W10199808
6	MAY 8268433
7	PROBE, MANIFOLD
8	SPRAY ARM
9	RETAINER, PUSH-IN
10	SPRAYARM, 3RD LEVEL
