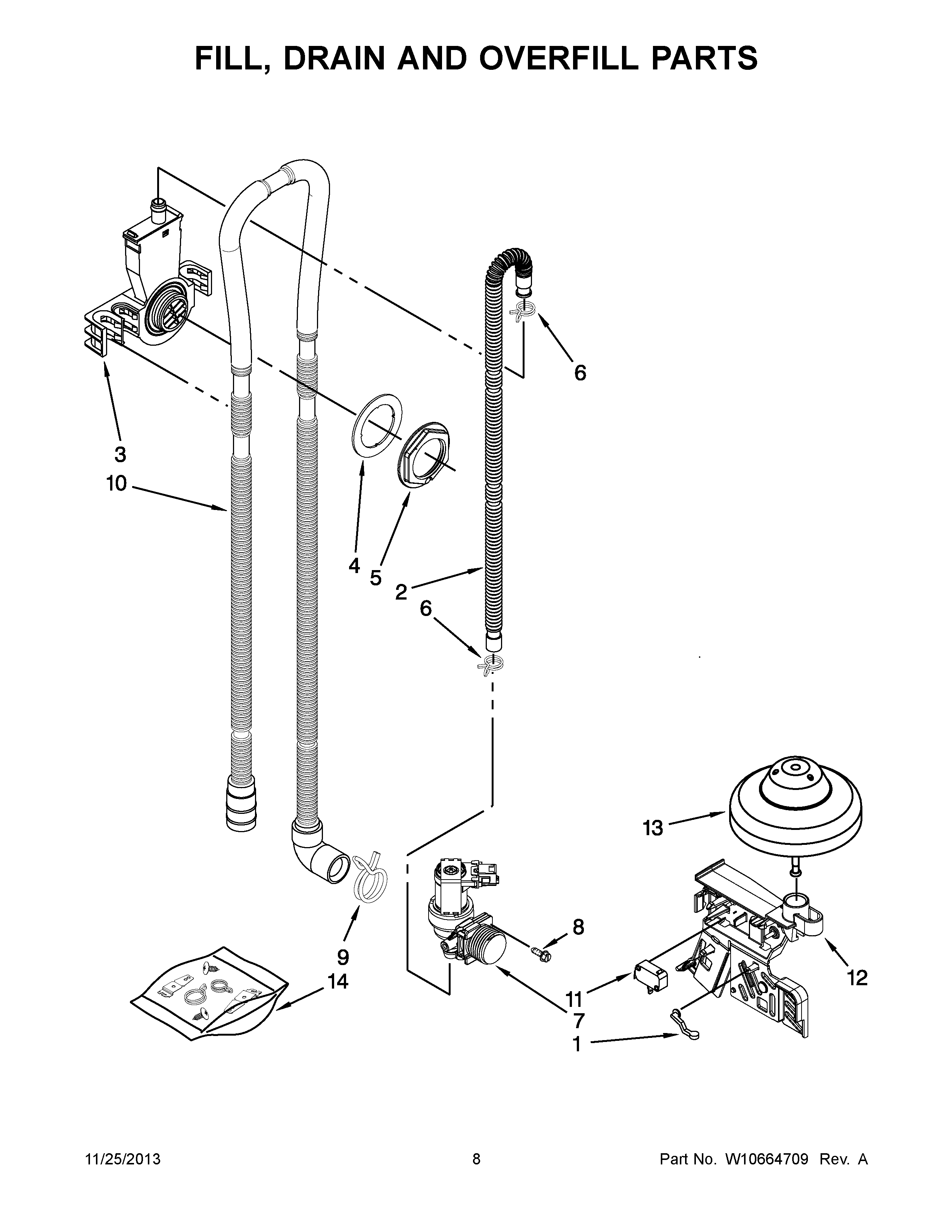

MDBH949PAQ4 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

Products

Position	Product
1	LEVER, OVERFILL SWITCH
2	MAY 8531412
3	WATER INLET (ALSO ORDER ITEMS 4)
4	MAY 8531323
5	MAY W10508676
6	MAY 371505
7	MAY W10327250
8	Screw
9	MAY 370445
10	MAY W10481093
11	MAY W10195039
12	HOUSING, OVERFILL
13	MAY W10346525
14	MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
