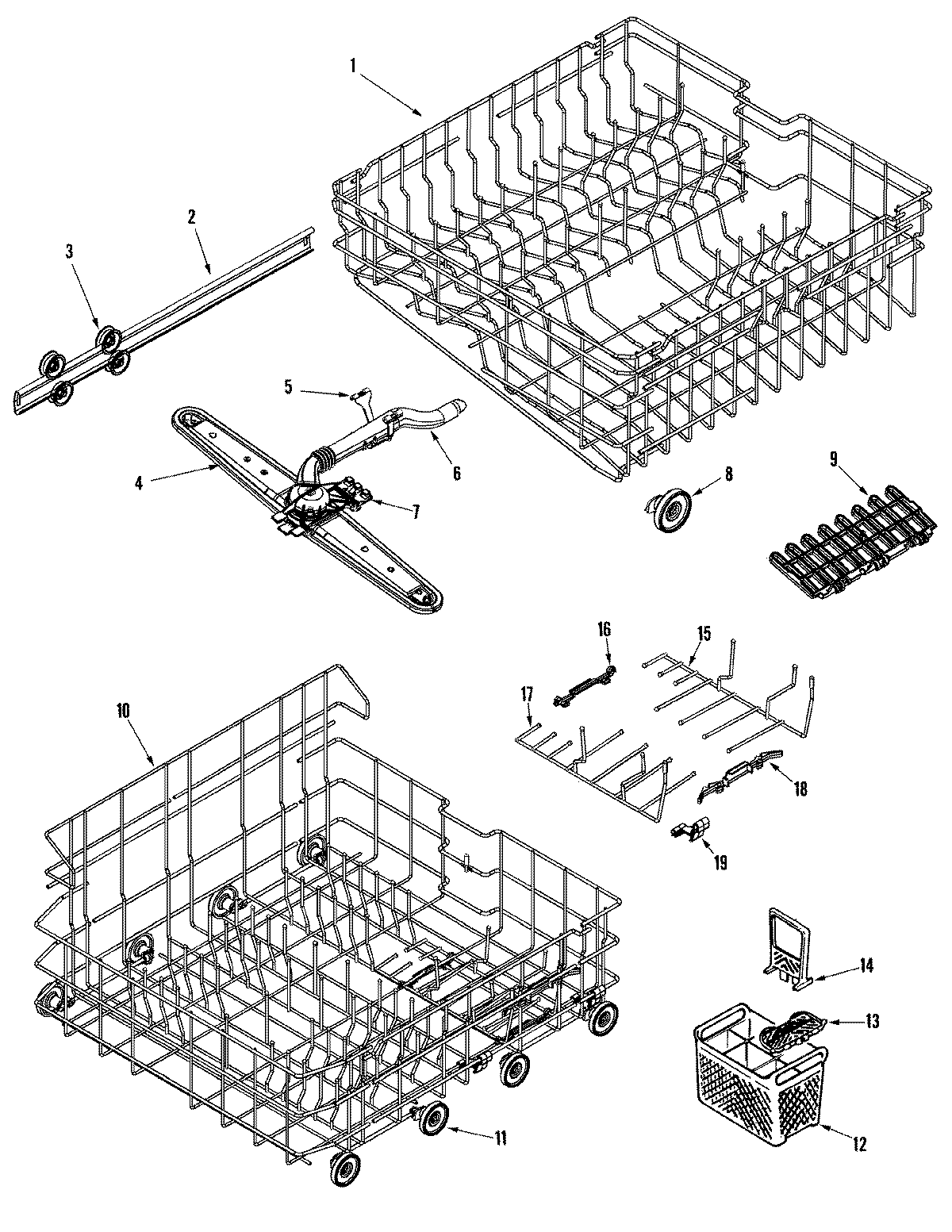

MDBH950AWB 05 – TRACK & RACK ASSEMBLY

MDBH950AWB 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBH950AWB 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003018
1MAY 99002615
2TRACK, RACK
2WPW10261227 Whirlpool Dishwasher Stop Assembly
3WP99002947 Whirlpool Tub Wheel
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
4SCREW, TRUSS HEAD (10-18X.75)
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8WP99002781 Whirlpool Dishwasher Wheel
9MAY 99002671
10MAY 99002814
10MAY 99002965
10MAY 99002017
11WP99002780 Whirlpool Lower Wheel Assembly
12WP6-918873 Whirlpool Silverware Basket
13MAY 99002618
14MAY 99002619
16WP99002687 Whirlpool Tine Pivot Clip
1712002750 Whirlpool Dishwasher Convertible Tine Kit
18WP99002688 Whirlpool Dishwasher Convertible Tine Latch
19MAY 99002689
