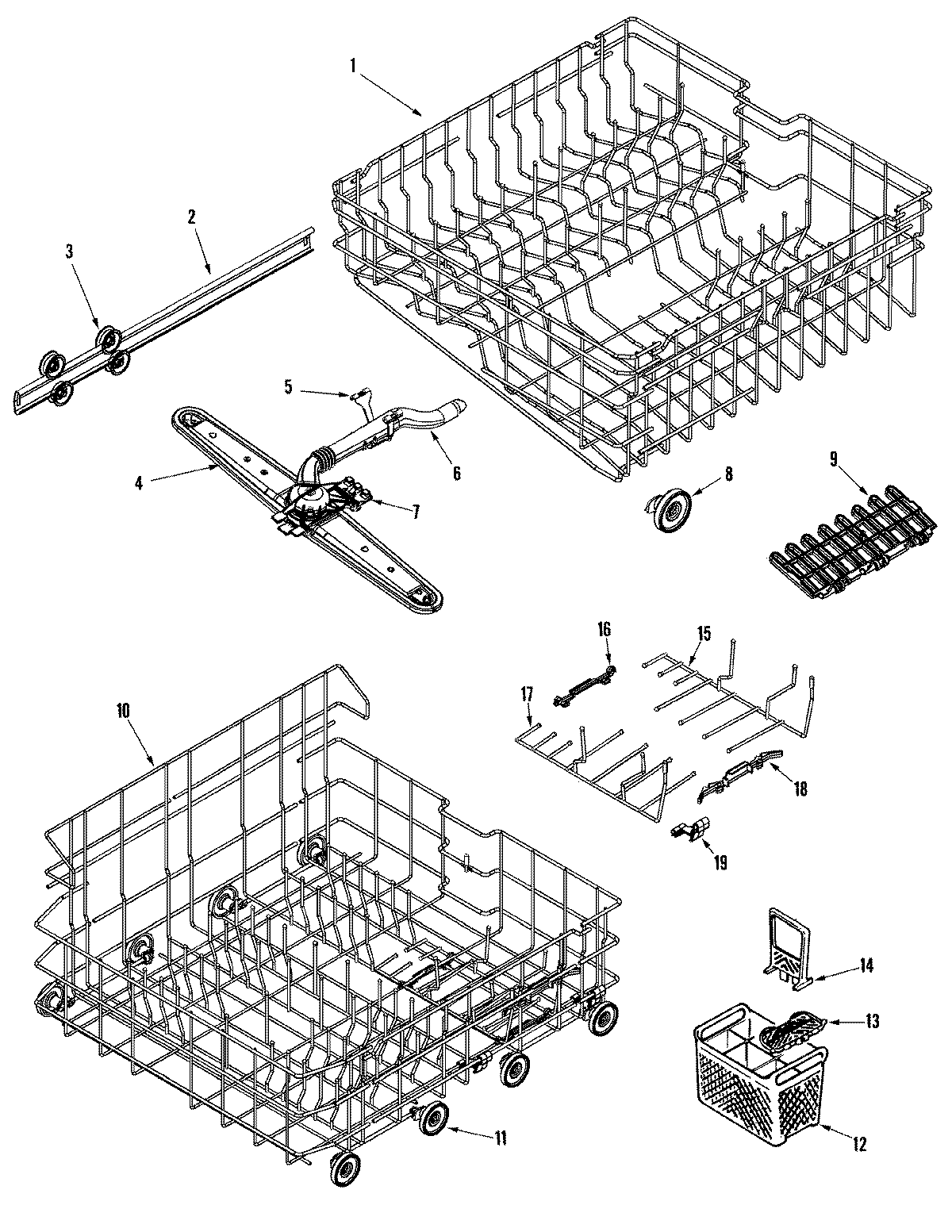

MDBH950AWS 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003018
1	MAY 99002615
2	TRACK, RACK
2	WPW10261227 Whirlpool Dishwasher Stop Assembly
3	WP99002947 Whirlpool Tub Wheel
3	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4	WP99003070 Whirlpool Dishwasher Wash Arm
4	SCREW, TRUSS HEAD (10-18X.75)
5	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6	WASH MANIFOLD ASSY (UPR)
7	CLIP, UPR WASH MANIFOLD (FRT)
8	WP99002781 Whirlpool Dishwasher Wheel
9	MAY 99002671
10	MAY 99002814
10	MAY 99002965
10	MAY 99002017
11	WP99002780 Whirlpool Lower Wheel Assembly
12	WP6-918873 Whirlpool Silverware Basket
13	MAY 99002618
14	MAY 99002619
16	WP99002687 Whirlpool Tine Pivot Clip
17	12002750 Whirlpool Dishwasher Convertible Tine Kit
18	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
19	MAY 99002689
