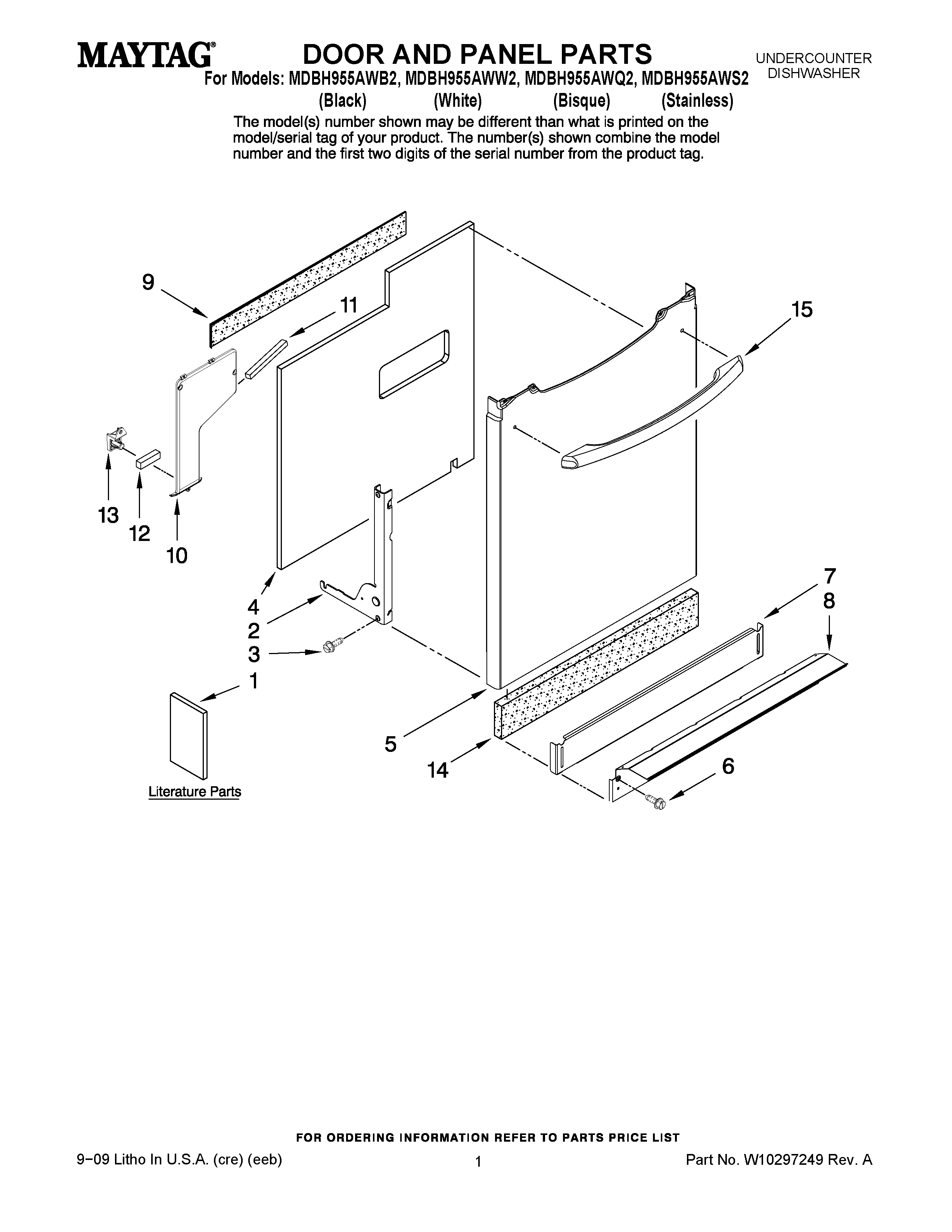

MDBH955AWB2 01 – DOOR AND PANEL PARTS

MDBH955AWB2 01 – DOOR AND PANEL PARTS

Written by

in

MDBH955AWB2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10157789
1MAY W10157790
1MAY W10212195
1MAY W10260100
2MAY W10202227
2MAY W10202226
3MAY 99001075
4INSULATION, DOOR
5MAY 6-917693
5MAY 6-917694
5MAY 6-917695
5MAY 6-917696
6WP6-912366 Whirlpool Dishwasher Screw
7PANEL, TOE (W/DAMPER-BLK)
7MAY 99002767
7MAY 99002766
8SUPPORT, FRONT (W/SEALS)(BLK)
8SUPPORT, FRONT (W/SEALS)(WHT)
9MAY W10117748
10MAY W10185633
11Foam Strip(Long)
12MAY 99003482
13MAY 99003541
14WP6-920587 Whirlpool Dishwasher Shield
15MAY W10189707
15MAY W10189706
15MAY W10189705
