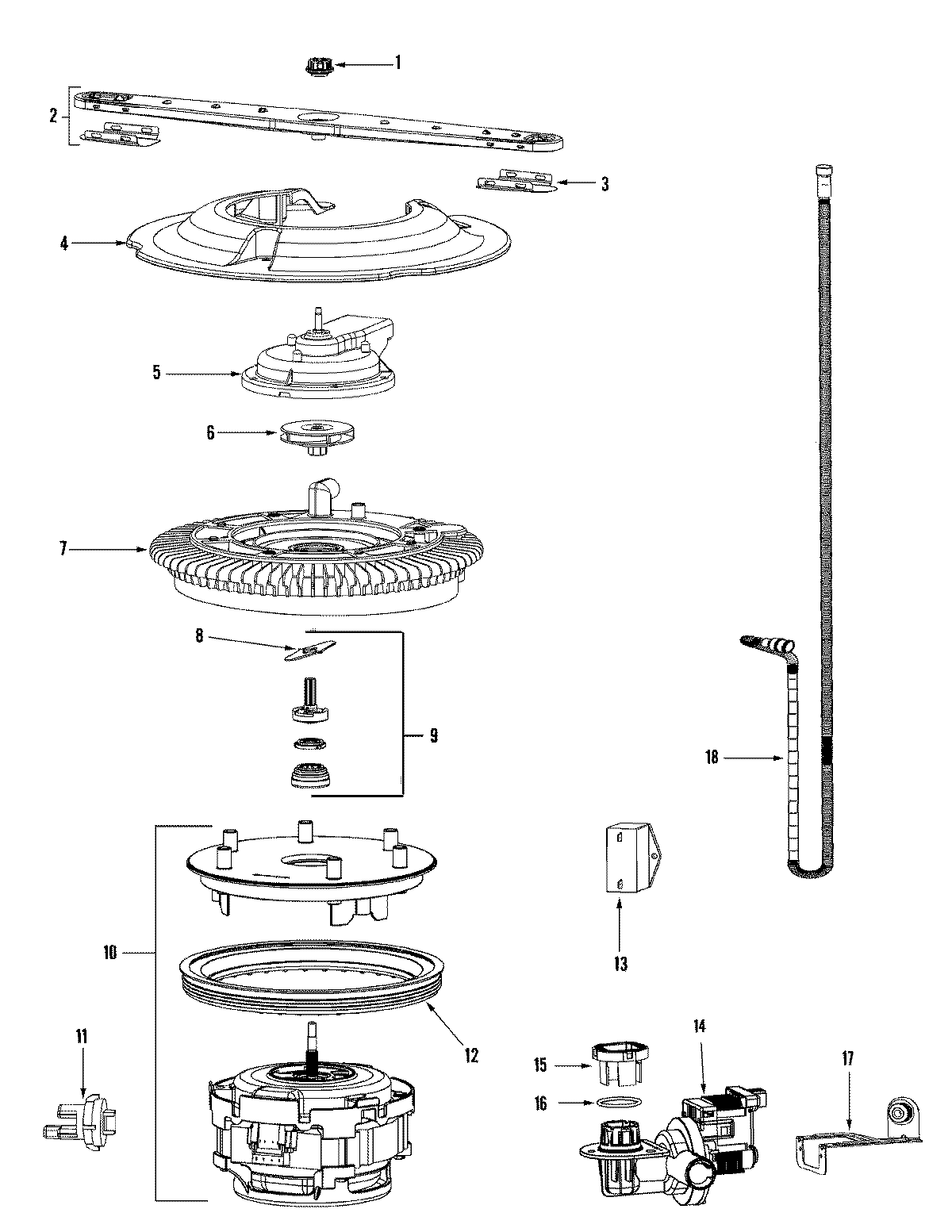

MDBH955AWS 03 – PUMP & MOTOR

Products

Position	Product
1	WP99002654 Whirlpool Nut
2	WP6-917642 Whirlpool Dishwasher Wash Arm
3	MAY 99002653
4	WPW10166788 Whirlpool Dishwasher Filter Frame
4	MAY 99002666
5	SCREW, DISCHARGE HOUSING
5	DISCHARGE HOUSING ASSY (UPR)
6	MAY 99002660
6	WP99002659 Whirlpool Impeller
7	WPW10192799 Whirlpool Dishwasher Accumulator
7	SCREW, STAINLESS PAN HEAD
8	MAY 99003427
9	MAY 99003341
10	WASH MOTOR ASSY SEAL NOT INCL
11	MAY 99003613
11	WP3400065 Whirlpool Refrigerator Screw
11	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11	WPW10120019 Whirlpool Dishwasher Sensor
12	GASKET, PUMP
13	MAY 99003440
13	SCREW 10-32X.400 (T-20 HEAD)
13	CAPACITOR, MOTOR
14	MAY 99002815
14	MAY 99002750
14	MAY W10200518
15	MAY 99003309
16	MAY 99002857
17	MAY 99002752
17	MAY 99002657
18	WP99002652 Whirlpool Drain Hose
18	WP99002656 Whirlpool Dishwasher Drain Clamp
