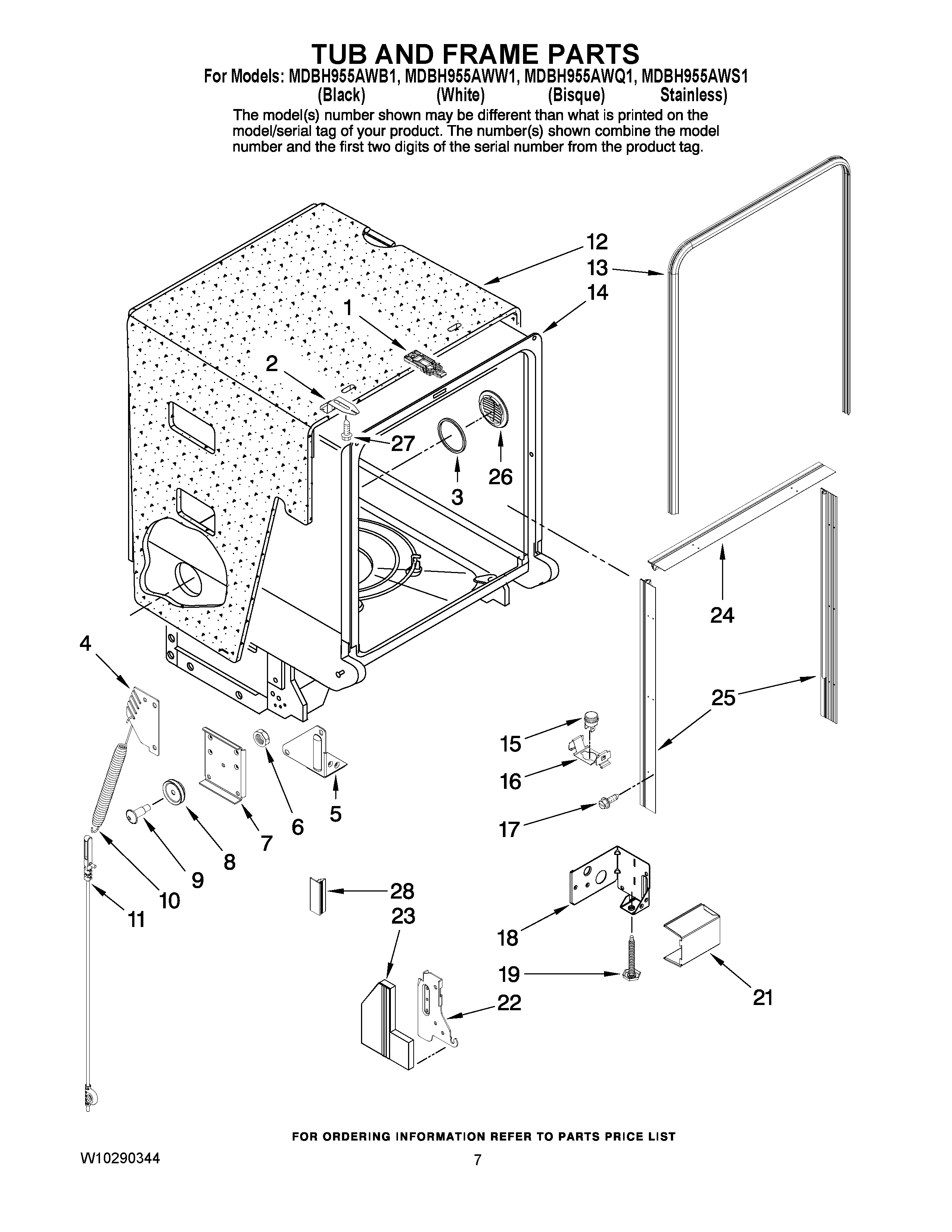

MDBH955AWS1 07 – TUB AND FRAME PARTS

MDBH955AWS1 07 – TUB AND FRAME PARTS

Written by

in

MDBH955AWS1 07 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10119337
2MAY 6-916881
3MAY 6-919082
46-918346 Whirlpool Dishwasher Bracket
5BRACKET, SUPPORT LEFT
6MAY 99003688
7MAY W10173920
8WP99002608 Whirlpool Dishwasher Cable Roller
9MAY 99003687
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12WPW10223013 Whirlpool Dishwasher Insulation Pad
13MAY 99002588
14MAY W10199093
15MAY 99002633
16MAY 99002634
17MAY 99002692
18BRACKET, JUNCTION BOX SUPPORT
19MAY W10143258
21MAY 99002638
22MAY W10137495
22MAY W10137496
23MAY W10174581
23MAY W10174569
24STRIP, TRIM TOP
25TRIM, STRIP
26MAY W10169388
27MAY 6-912799
28Gap Seal, Toe Kick (Black)
28Gap Seal, Toe Kick (White)
28Gap Seal, Toe Kick (Bisque)
