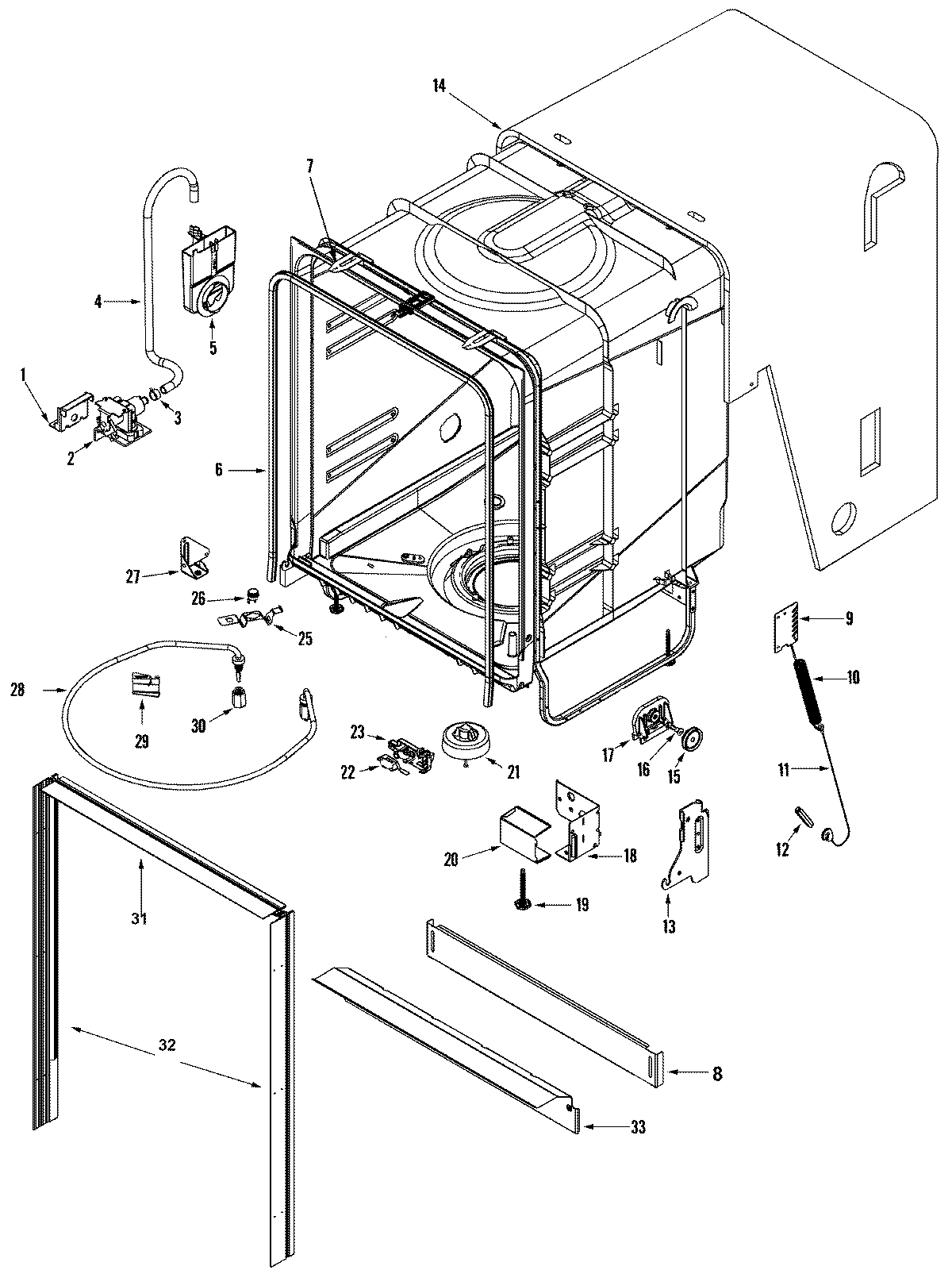

MDBH965AWS 06 – TUB

Products

Position	Product
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99002645
5	MAY 99002646
6	MAY 99002588
7	MAY 99002648
8	SUPPORT, FRONT (W/SEALS)(BLK)
9	6-918346 Whirlpool Dishwasher Bracket
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
13	MAY 99002927
13	MAY 99002928
14	WPW10223013 Whirlpool Dishwasher Insulation Pad
14	FASTENER, INSULATION
15	WP99002608 Whirlpool Dishwasher Cable Roller
16	MAY 99002609
16	MAY 99003688
16	MAY 99003687
17	MAY 99003686
17	MAY 99002607
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY 99002638
20	MAY 912365
21	MAY 99002630
22	WP3390631 Whirlpool Screw
22	MAY 99002943
23	MAY 99002631
25	MAY 99002634
26	MAY 99002633
27	SCREW 10-32X.400 (T-20 HEAD)
27	BRACKET, SUPPORT (LT)
28	W10283681 Whirlpool Dishwasher Heater
28	MAY 99002973
29	WP6-917262 Whirlpool Dishwasher Heater Bracket
30	WP6-920168 Whirlpool Dishwasher Heater Nut
31	MAY 99002723
32	TRIM STRIP ASSEMBLY (RT)
32	MAY 99002692
32	TRIM STRIP ASSEMBLY (LT)
33	WP6-912366 Whirlpool Dishwasher Screw
33	PANEL, TOE (W/DAMPER-BLK)
