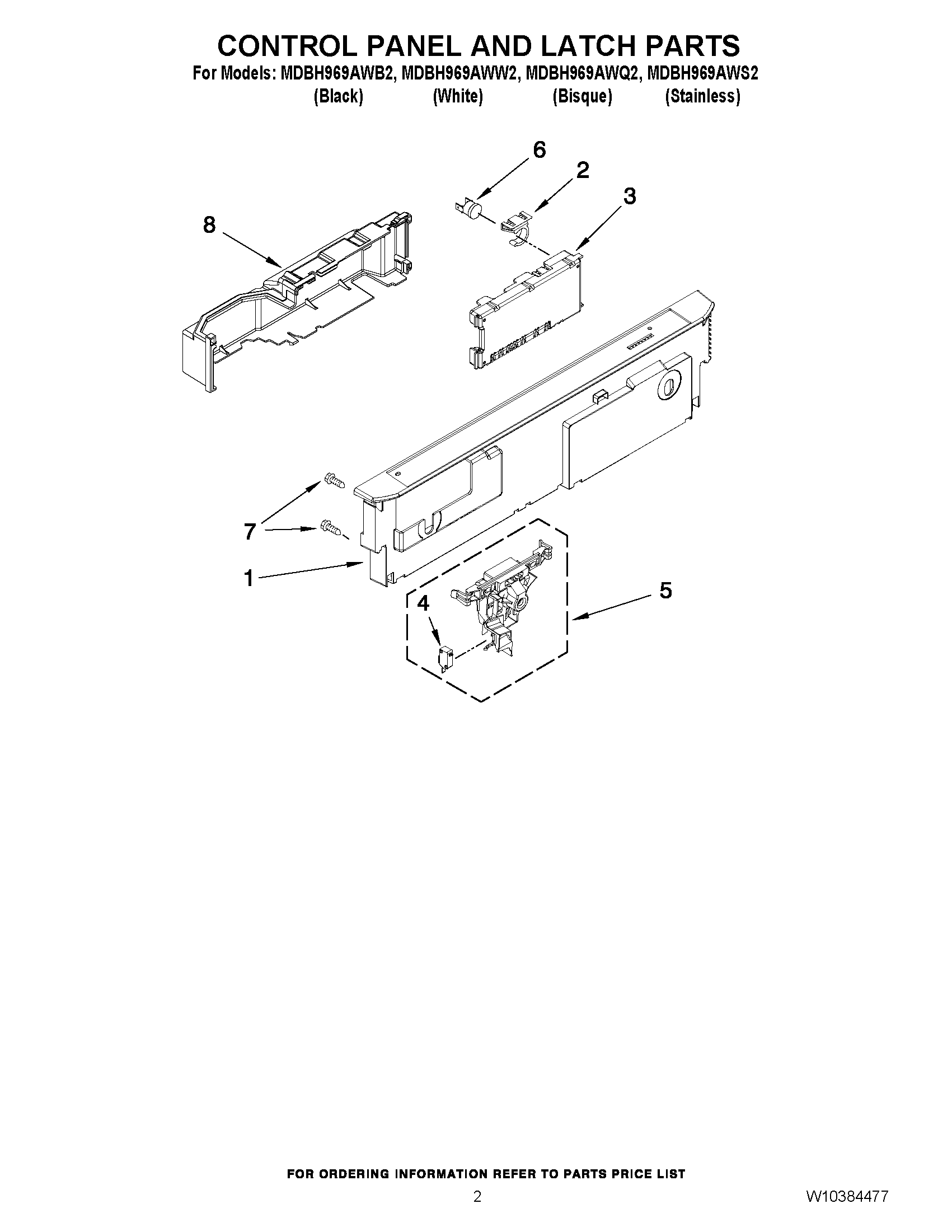

MDBH969AWQ2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (STAINLESS)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISQUE)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
2MAY 8546546
3CONTROL ELECTRONIC
4DOOR SWITCH
5LATCH ASSEMBLY
6MAY W10344801
7SCREW
8COVER, CONTROL ASSEMBLY
