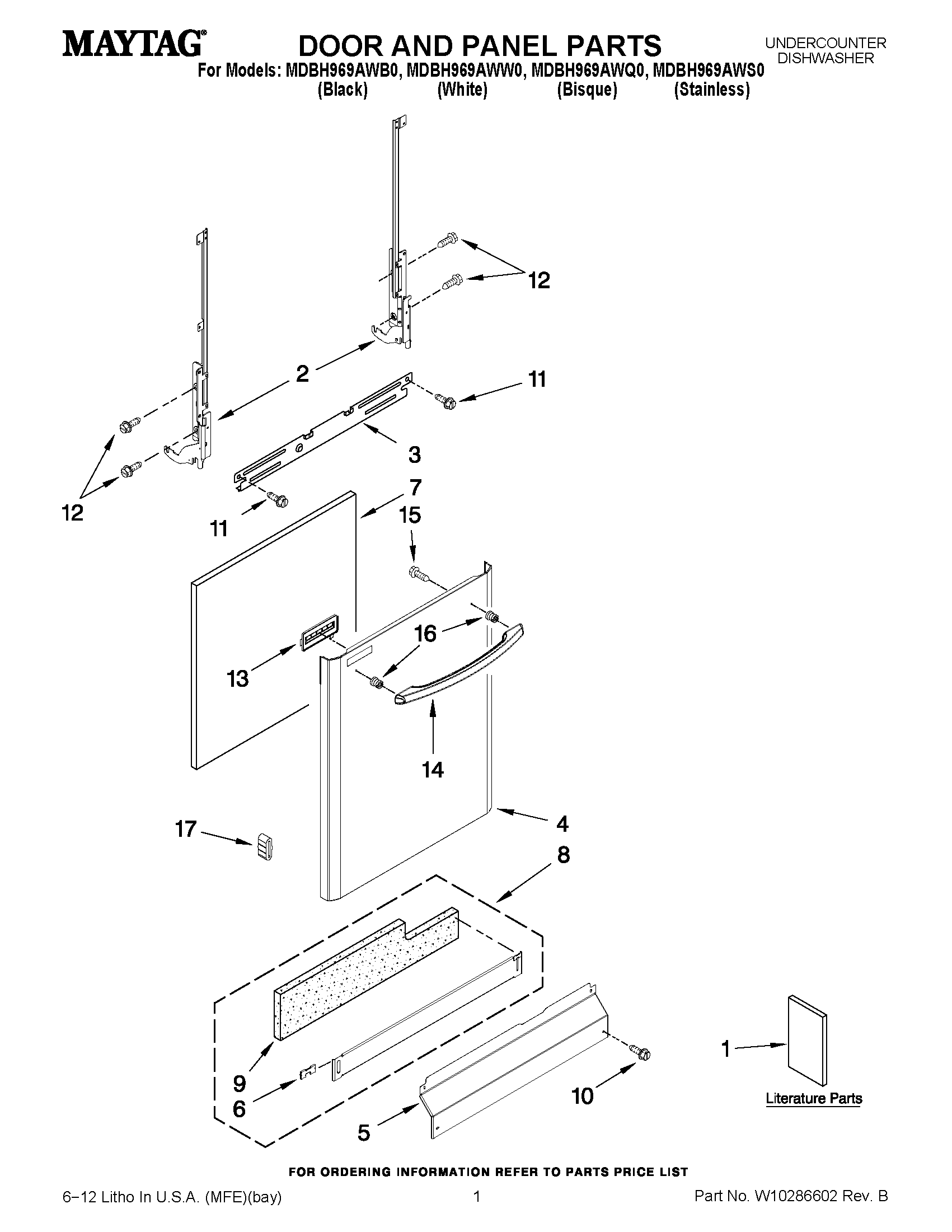

MDBH969AWS0 01 – DOOR AND PANEL PARTS

MDBH969AWS0 01 – DOOR AND PANEL PARTS

Written by

in

MDBH969AWS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10398587
1MAY W10240117
1MAY W10240116
1TECH SHEET
1MAY W10290309
2MAY W10143374
2MAY W10143373
3MAY 8268983
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BLACK)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BISQUE)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (STAINLESS)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (WHITE)
5ACCESS PANEL (BLACK)
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
11Screw
12MAY 489470
13MAY W10201656
13MAY W10201655
13VENT ASSEMBLY (BLACK)
13MAY W10201654
14MAY W10199639
14MAY W10199637
14MAY W10199635
14HANDLE (BISQUE)
15MAY W10123421
16STUD, MOUNTING
17SLEEVE, FRICTION
