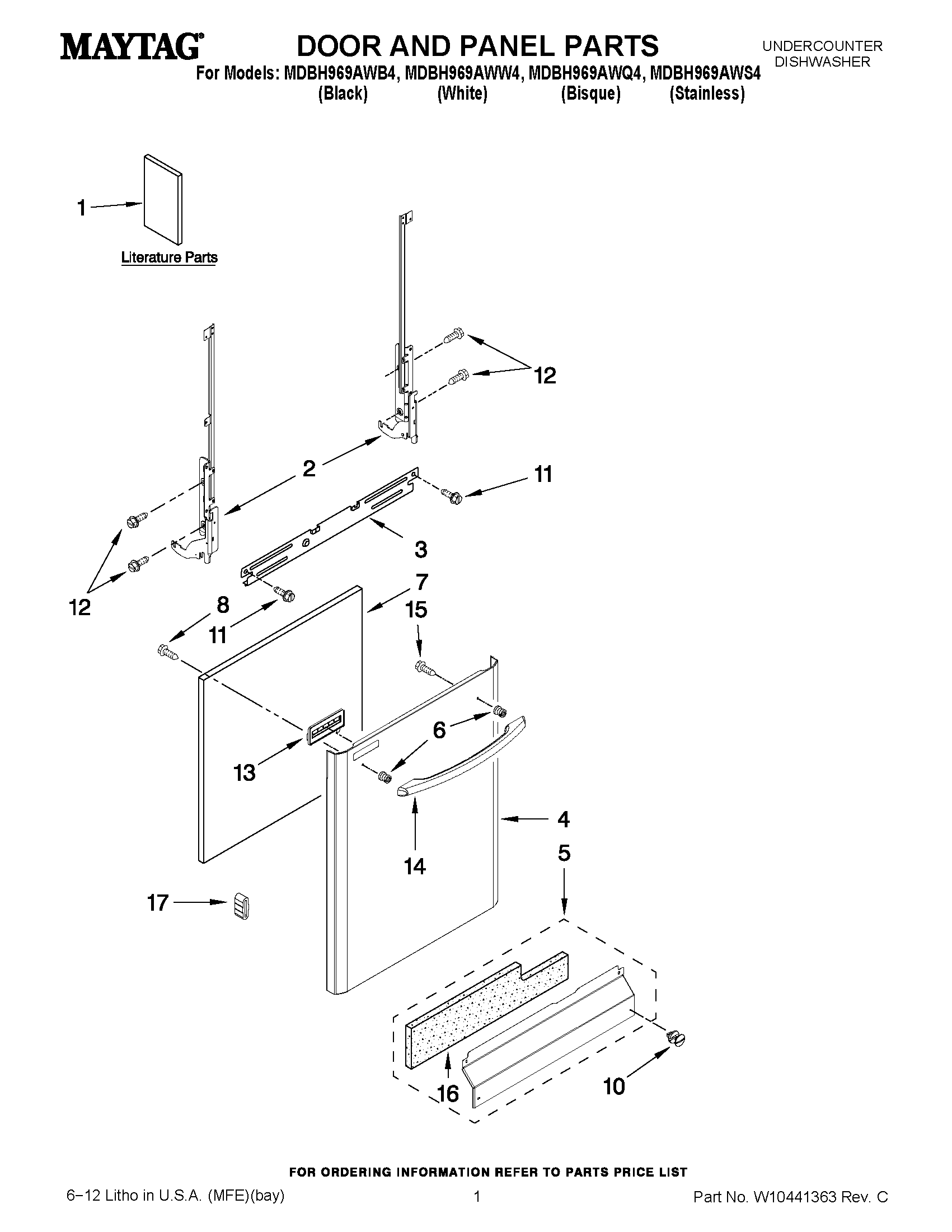

MDBH969AWS4 01 – DOOR AND PANEL PARTS

MDBH969AWS4 01 – DOOR AND PANEL PARTS

Written by

in

MDBH969AWS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10401503
1MAY W10398587
1MAY W10240117
1MAY W10240116
1TECH SHEET
2MAY W10143374
2MAY W10143373
3MAY 8268983
4PANEL FRONT (INCLUDES ITEMS 13 & 15) (BISQUE)
4PANEL FRONT (INCLUDES ITEMS 13 & 15) (STAINLESS)
4PANEL FRONT (INCLUDES ITEMS 13 & 15) (WHITE)
4PANEL FRONT (INCLUDES ITEMS 13 & 15) (BLACK)
5MAY W10369024
6MAY W10195726
7MAY W10073520
8MAY W10316572
10SCREW (BLACK)
11Screw
12MAY 489470
13MAY W10201655
13MAY W10201654
13VENT ASSEMBLY (BLACK)
13MAY W10201656
14HANDLE (BISQUE)
14MAY W10324630
14MAY W10324628
14MAY W10324627
15SCREW, SET
16INSULATION, ACCESS PANEL
17SLEEVE, FRICTION
