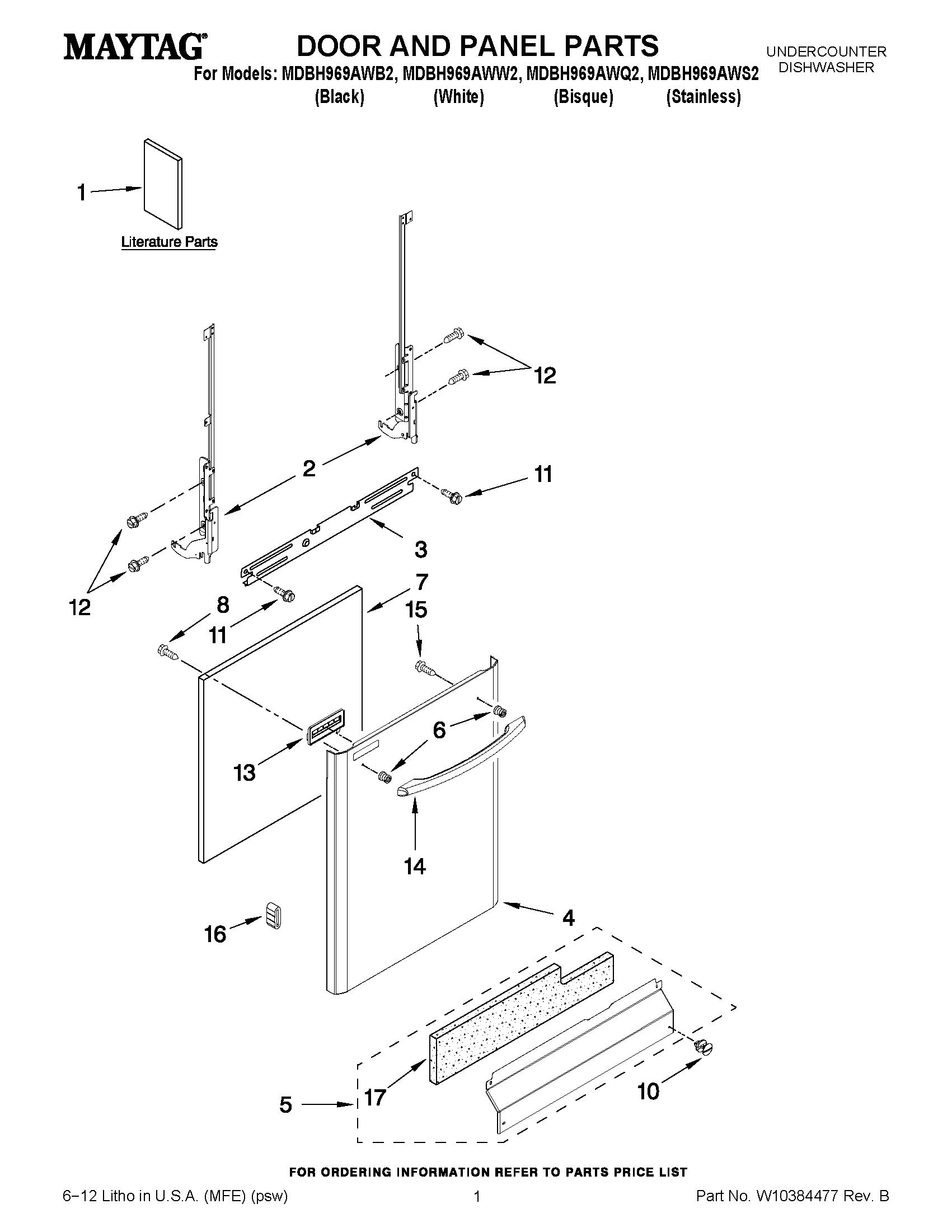

MDBH969AWW2 01 – DOOR AND PANEL PARTSadmin2025-04-26T10:12:03+00:00MDBH969AWW2 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10490730 |
| 1 | MAY W10240117 |
| 1 | MAY W10240116 |
| 1 | TECH SHEET |
| 1 | MAY W10401503 |
| 2 | MAY W10143373 |
| 2 | MAY W10143374 |
| 3 | MAY 8268983 |
| 4 | PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BLACK) |
| 4 | PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (WHITE) |
| 4 | PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BISQUE) |
| 4 | PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (STAINLESS) |
| 5 | MAY W10369024 |
| 6 | STUD, MOUNTING |
| 7 | MAY W10073520 |
| 8 | MAY W10123421 |
| 10 | SCREW (BLACK) |
| 11 | Screw |
| 12 | MAY 489470 |
| 13 | MAY W10201655 |
| 13 | VENT ASSEMBLY (BLACK) |
| 13 | MAY W10201656 |
| 13 | MAY W10201654 |
| 14 | MAY W10199637 |
| 14 | MAY W10199635 |
| 14 | MAY W10199639 |
| 14 | HANDLE (BISQUE) |
| 15 | SCREW, SET |
| 16 | SLEEVE, FRICTION |
| 17 | INSULATION, ACCESS PANEL |
