MDBH969AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

MDBH969AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

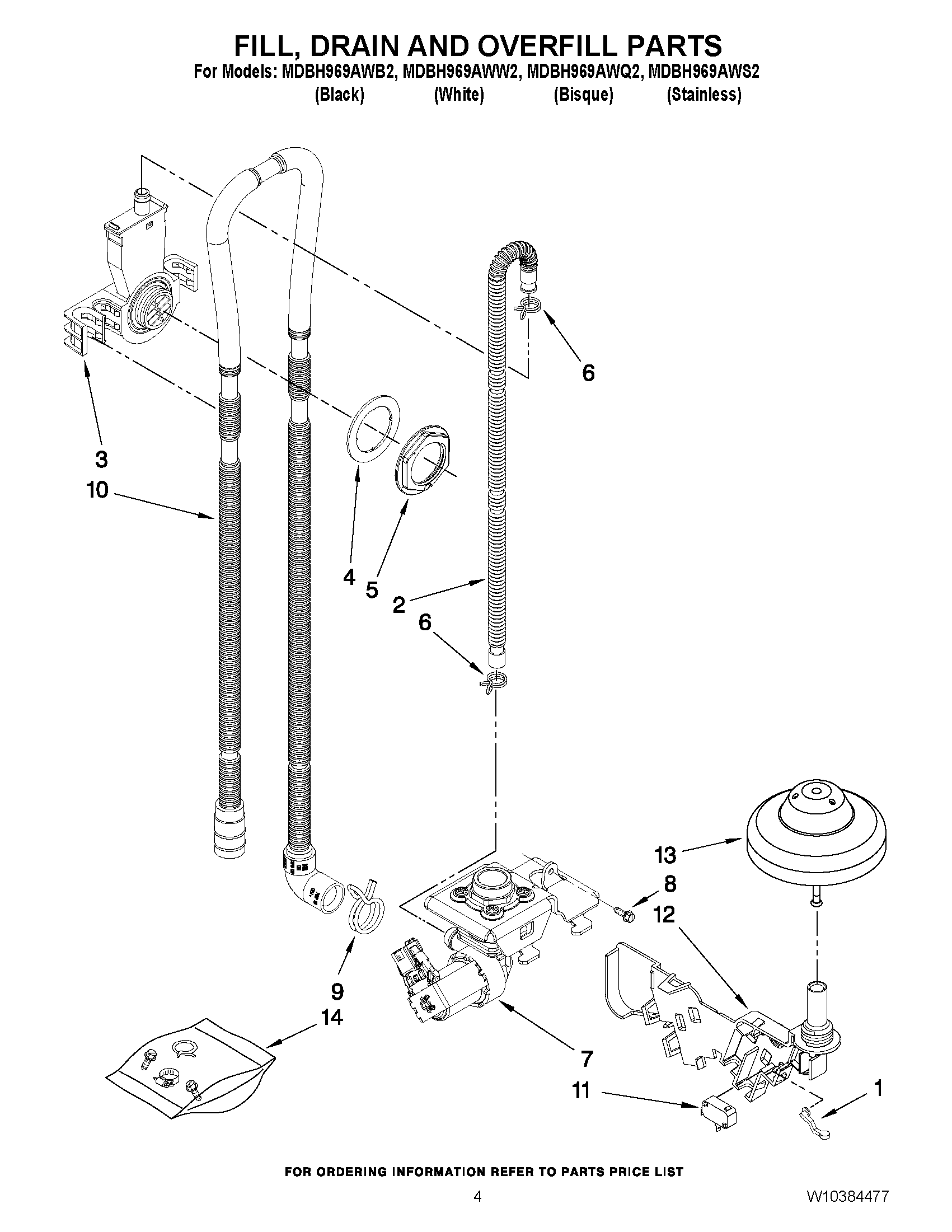

MDBH969AWW2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFLOW SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5MAY 8531327
6HOSE CLAMP
7MAY W10195049
8Screw
9MAY 356138
10MAY W10137608
11SWITCH, OVERFILL
12STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
13MAY 8268895
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
