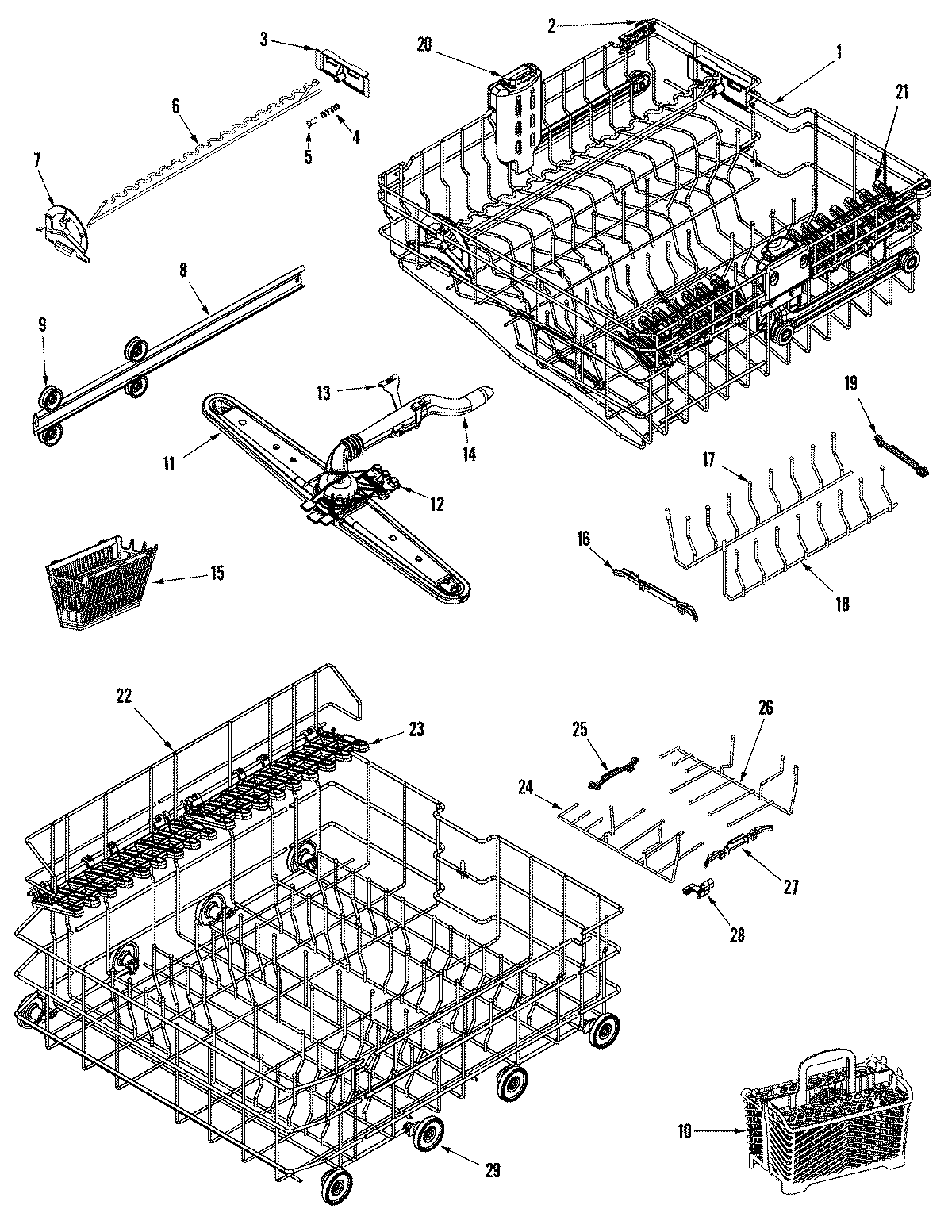

MDBH970AWB 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002818
1	MAY 99003232
2	MAY 99002853
4	MAY 99002715
5	MAY 99002714
6	MAY 99002822
7	MAY 99002711
8	WPW10261227 Whirlpool Dishwasher Stop Assembly
8	TRACK, RACK
9	WP99002947 Whirlpool Tub Wheel
10	WP6-918873 Whirlpool Silverware Basket
10	MAY 99002683
10	MAY 99002697
11	SCREW, TRUSS HEAD (10-18X.75)
11	WP99003070 Whirlpool Dishwasher Wash Arm
12	CLIP, UPR WASH MANIFOLD (FRT)
13	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
14	WASH MANIFOLD ASSY (UPR)
15	W11175758 Whirlpool Dishwasher Basket Ware
16	WP99002710 Whirlpool Dishwasher Fold-Down Latch
17	WP99003496 Whirlpool Convertible Row Tine
18	MAY 99002820
19	WP99002709 Whirlpool Tine Pivot Clip
20	MAY 99003009
20	MAY 99002783
20	MAY 99002782
20	MAY 99003008
20	MAY 99003011
20	MAY 99003020
20	MAY 99003010
20	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
21	MAY 99002671
22	MAY 99002017
22	MAY 99002682
22	MAY 99002969
23	MAY 99002672
24	12002750 Whirlpool Dishwasher Convertible Tine Kit
25	WP99002687 Whirlpool Tine Pivot Clip
27	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
28	MAY 99002689
29	WP99002780 Whirlpool Lower Wheel Assembly
