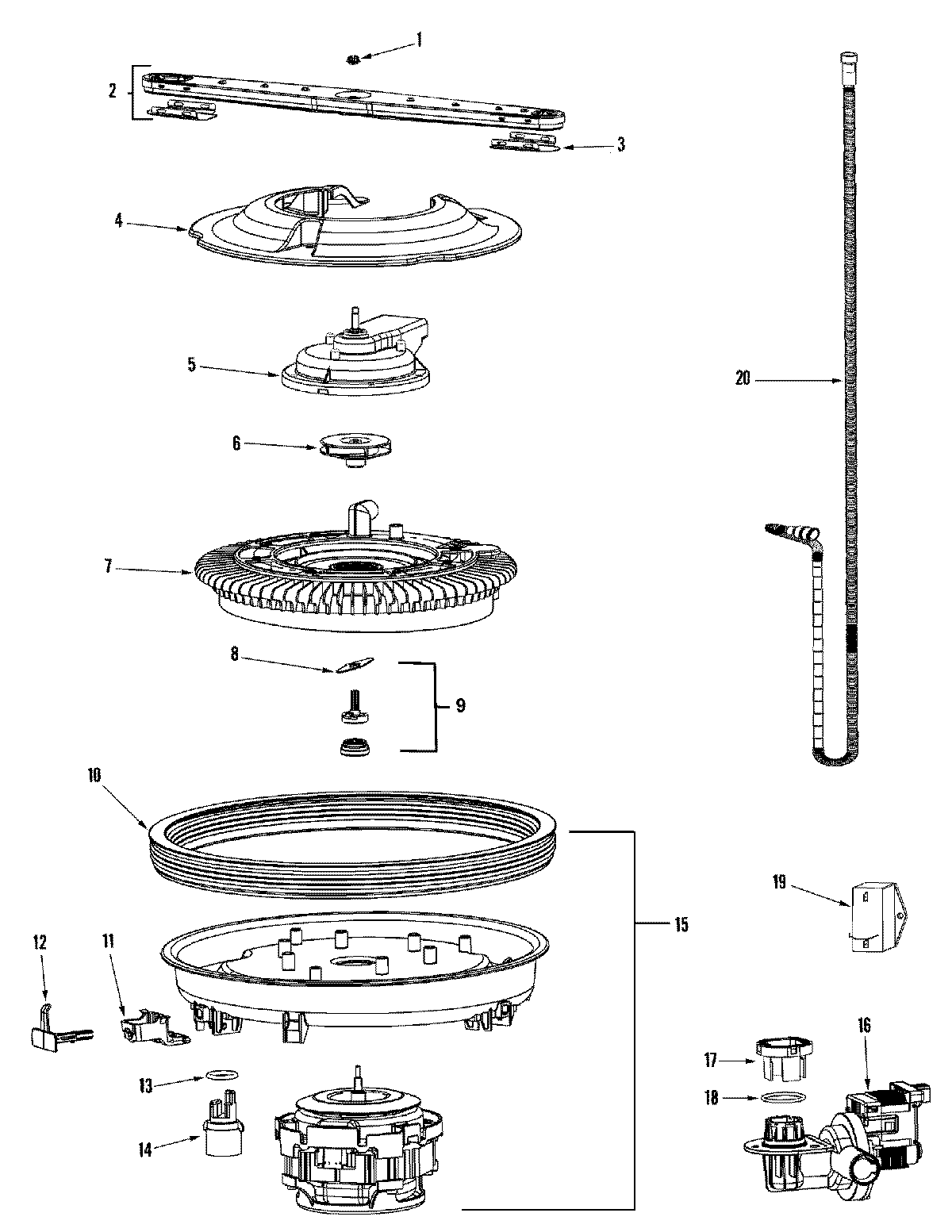

MDBH975AWS 03 – PUMP & MOTOR

Products

Position	Product
1	WP99002654 Whirlpool Nut
2	WP6-917642 Whirlpool Dishwasher Wash Arm
3	MAY 99002653
4	MAY 99002666
4	WPW10166788 Whirlpool Dishwasher Filter Frame
5	SCREW, DISCHARGE HOUSING
5	DISCHARGE HOUSING ASSY (UPR)
6	MAY 99002987
6	WP99002659 Whirlpool Impeller
7	WPW10192799 Whirlpool Dishwasher Accumulator
7	SCREW, STAINLESS PAN HEAD
8	MAY 99003427
9	MAY 99003341
10	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
11	MAY 99003056
12	MAY 99003057
13	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
14	WPW10120019 Whirlpool Dishwasher Sensor
14	MAY 99003613
14	WP3400065 Whirlpool Refrigerator Screw
15	Wash Motor Assy.
16	MAY 99002815
16	DRAIN PUMP ASSEMBLY
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY 99003309
18	MAY 99002857
19	CAPACITOR, MOTOR
19	SCREW 10-32X.400 (T-20 HEAD)
19	MAY 99003440
20	WP99002652 Whirlpool Drain Hose
20	WP99002656 Whirlpool Dishwasher Drain Clamp
