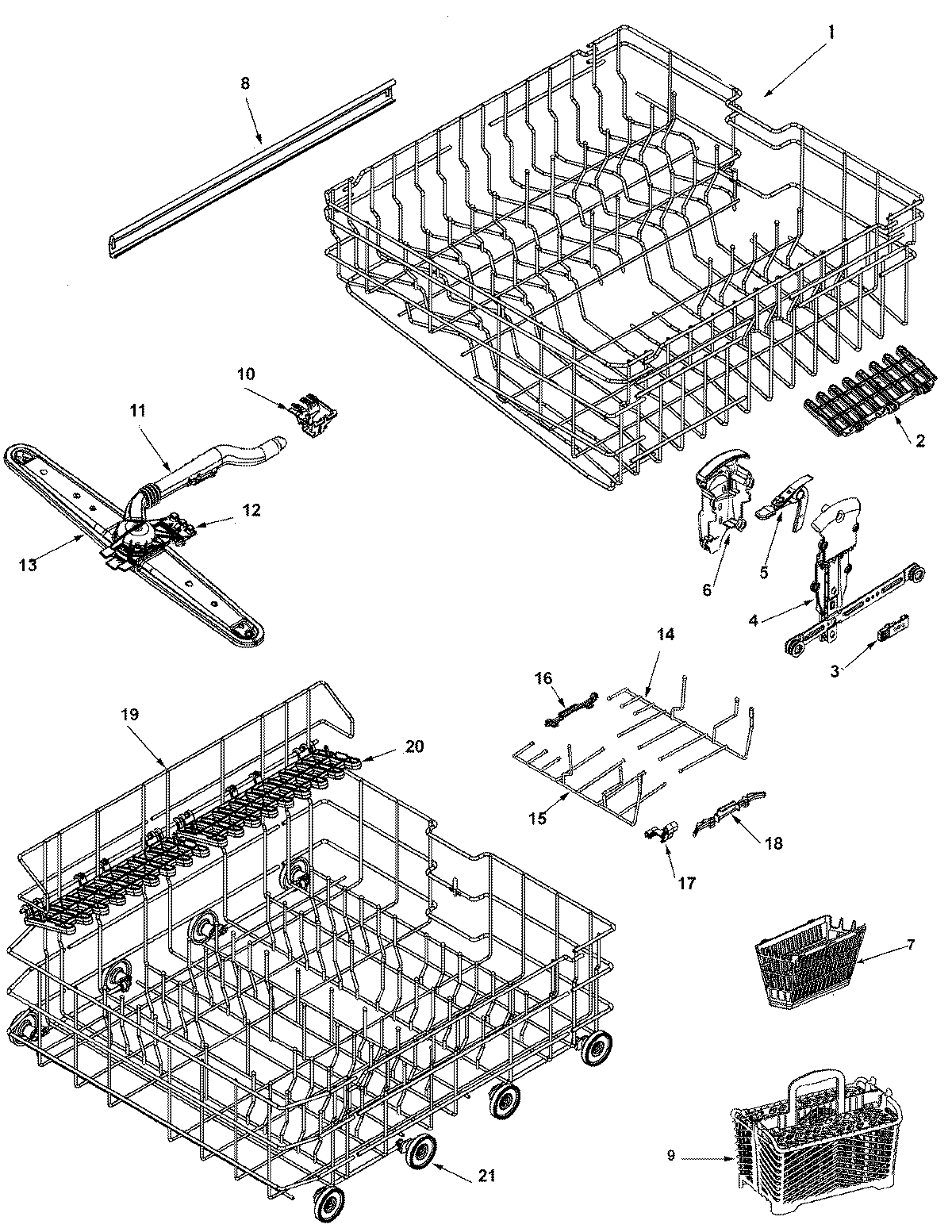

MDBH975AWS 05 – TRACK & RACK ASSEMBLY

MDBH975AWS 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBH975AWS 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003459
1MAY 99003460
1MAY 99003053
1MAY 99003052
1MAY 99002905
1MAY 99003480
2MAY 99002671
3MAY 99003020
4MAY 99003587
4WPW10153533 Whirlpool Dishwasher Adjuster
4MAY 99003010
599003178 Whirlpool Dishwasher Adjuster Lever (Blue)
6MAY 99003011
7W11175758 Whirlpool Dishwasher Basket Ware
8WP99003068 Whirlpool Dishwasher Bearing
8MAY 99003476
8MAY 99003069
8MAY 99003066
9WP6-918873 Whirlpool Silverware Basket
9MAY 99002697
9MAY 99002683
1099002945 Whirlpool Dishwasher Upper Wash Manifold Clip
11SCREW, TRUSS HEAD (10-18X.75)
11WP99003070 Whirlpool Dishwasher Wash Arm
12CLIP, UPR WASH MANIFOLD (FRT)
13WASH MANIFOLD ASSY (UPR)
14WP99003496 Whirlpool Convertible Row Tine
15WP99003497 Whirlpool Dishwasher Tine Row
16WP99002687 Whirlpool Tine Pivot Clip
17MAY 99003003
18WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
19MAY 99003461
20MAY 99002672
21WP99002780 Whirlpool Lower Wheel Assembly
