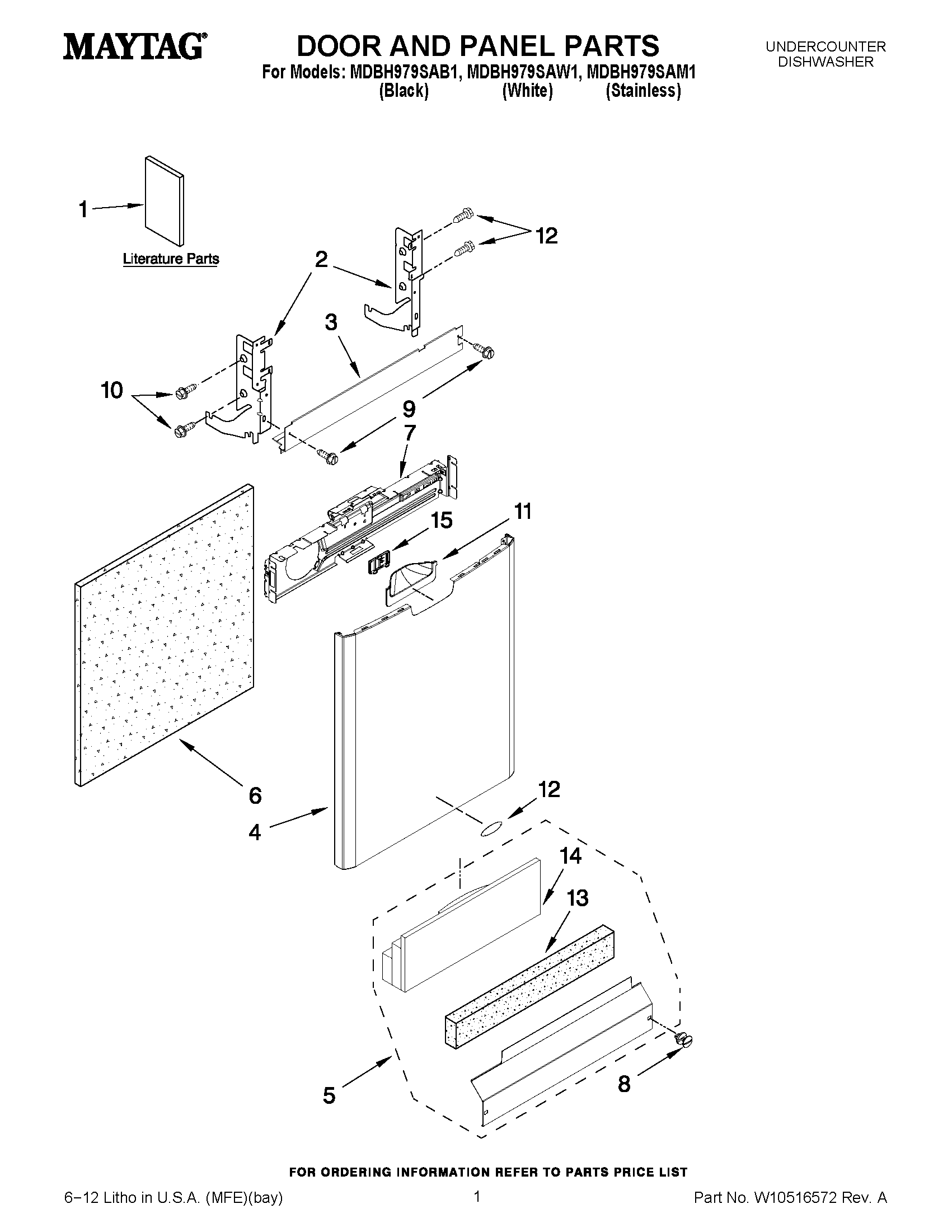

MDBH979SAB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10401504
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1MAY W10490737
1MAY W10438314
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
5MAY W10368715
5MAY W10368716
6MAY W10073520
7BRACKET, CONTROL
8SCREW (WHITE)
8SCREW (BLACK)
9Screw
10SCREW
11MAY W10343320
11MAY W10343322
11MAY W10424843
12BADGE (BLACK)
13INSULATION, TOE PANEL
14MAY W10350437
15MAY W10463662
