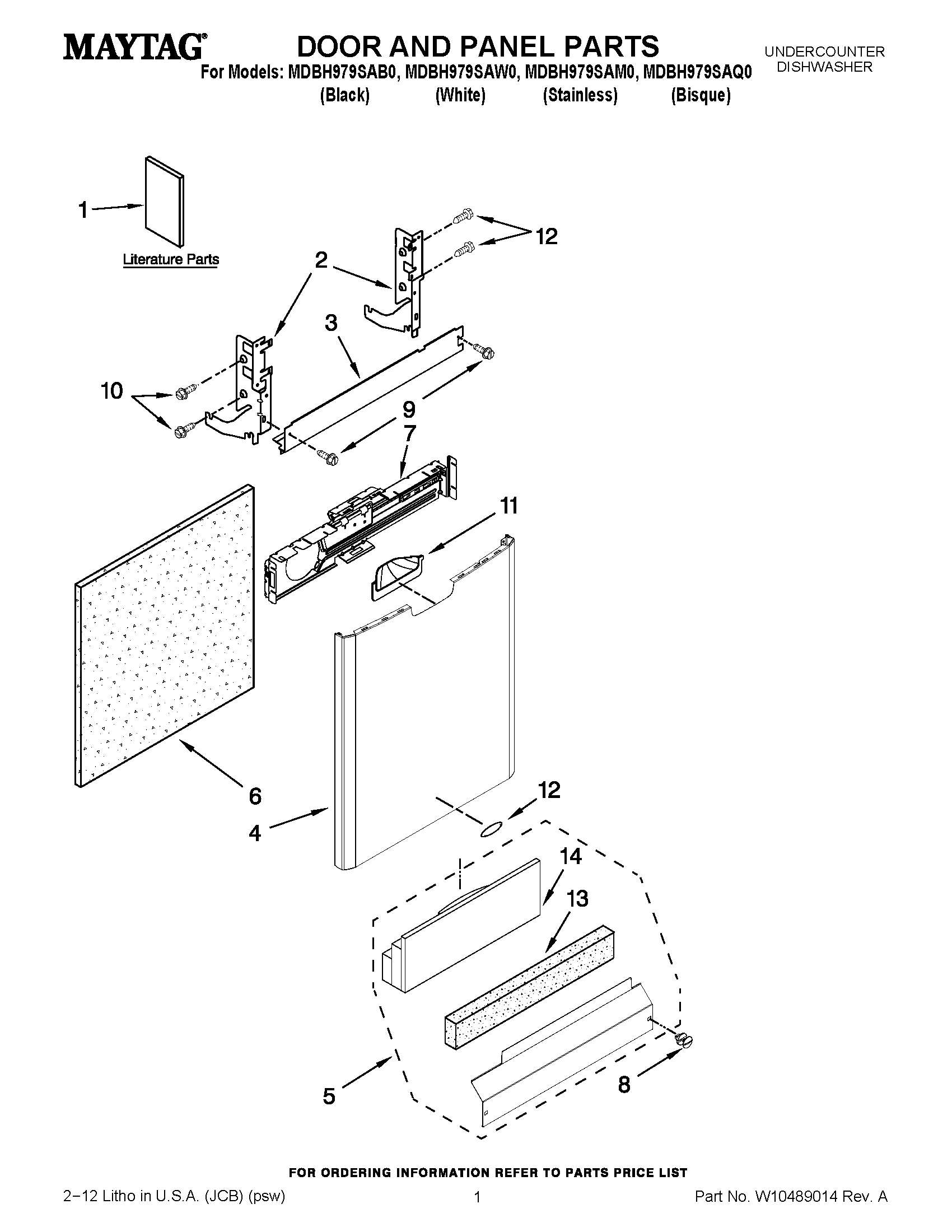

MDBH979SAM0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1MAY W10401491
1MAY W10401504
1MAY W10401494
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4MAY W10402265
4MAY W10402223
4MAY W10402224
5MAY W10368716
5MAY W10368717
5MAY W10368715
6MAY W10073520
7BRACKET, CONTROL
8SCREW (BLACK)
8SCREW (WHITE)
8SCREW (BISCUIT)
10SCREW
11MAY W10424843
11POCKET, PANEL (BISCUIT/BISQUE)
11MAY W10343322
11MAY W10343320
12BADGE (BLACK)
13INSULATION, TOE PANEL
14MAY W10350437
