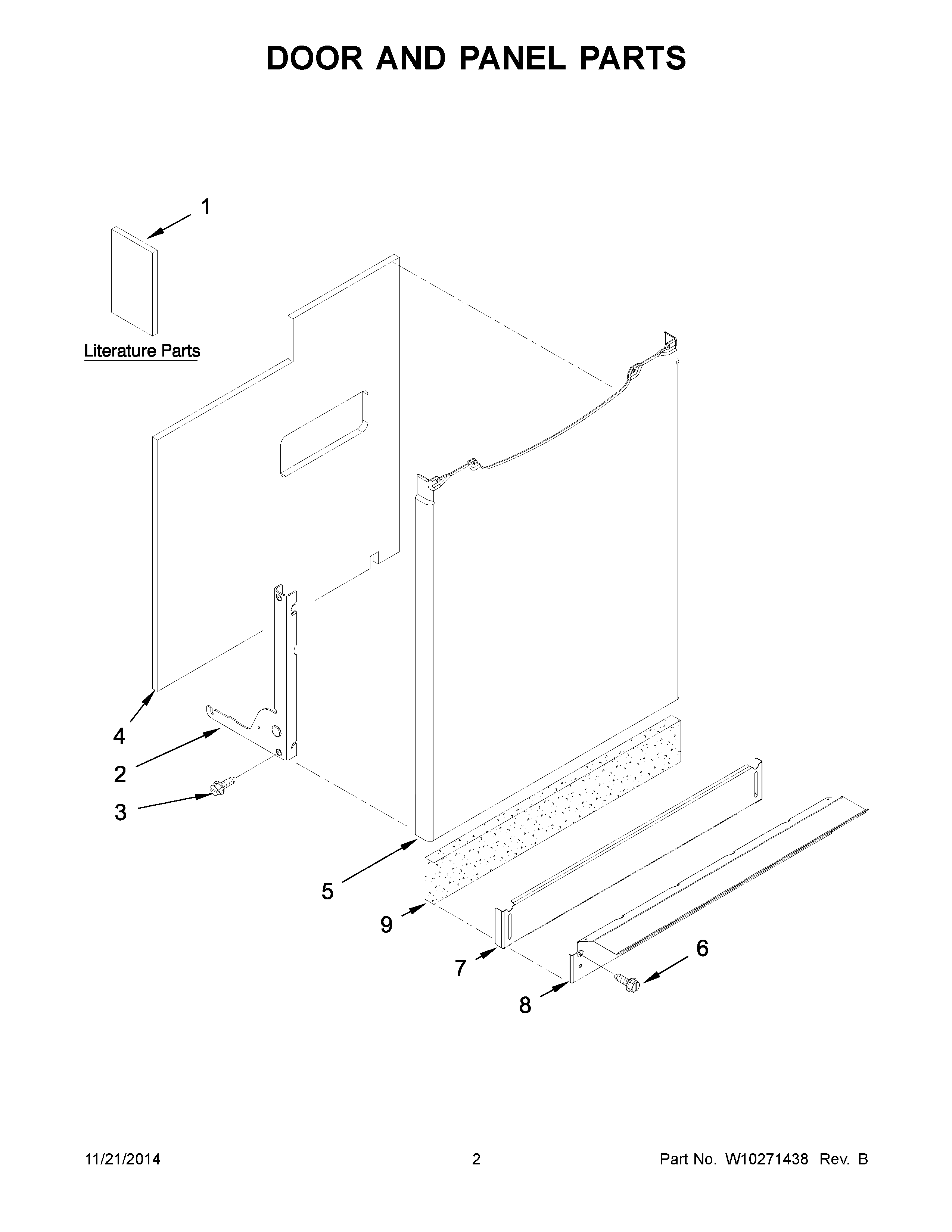

MDBH980AWB1 02 – DOOR AND PANEL PARTS

MDBH980AWB1 02 – DOOR AND PANEL PARTS

Written by

in

MDBH980AWB1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BMAY W10157791
1MAY W10212195
1AMAY W10260107
2AMAY W10118638
2MAY W10118637
3MAY 99001075
4INSULATION, DOOR
5MAY W10235722
5AMAY W10235723
5BMAY W10235724
5CMAY W10235725
6WP6-912366 Whirlpool Dishwasher Screw
7AMAY 99002766
7PANEL, TOE (W/DAMPER-BLK)
7BMAY 99002767
8ASUPPORT, FRONT (W/SEALS)(WHT)
8SUPPORT, FRONT (W/SEALS)(BLK)
9WP6-920587 Whirlpool Dishwasher Shield
