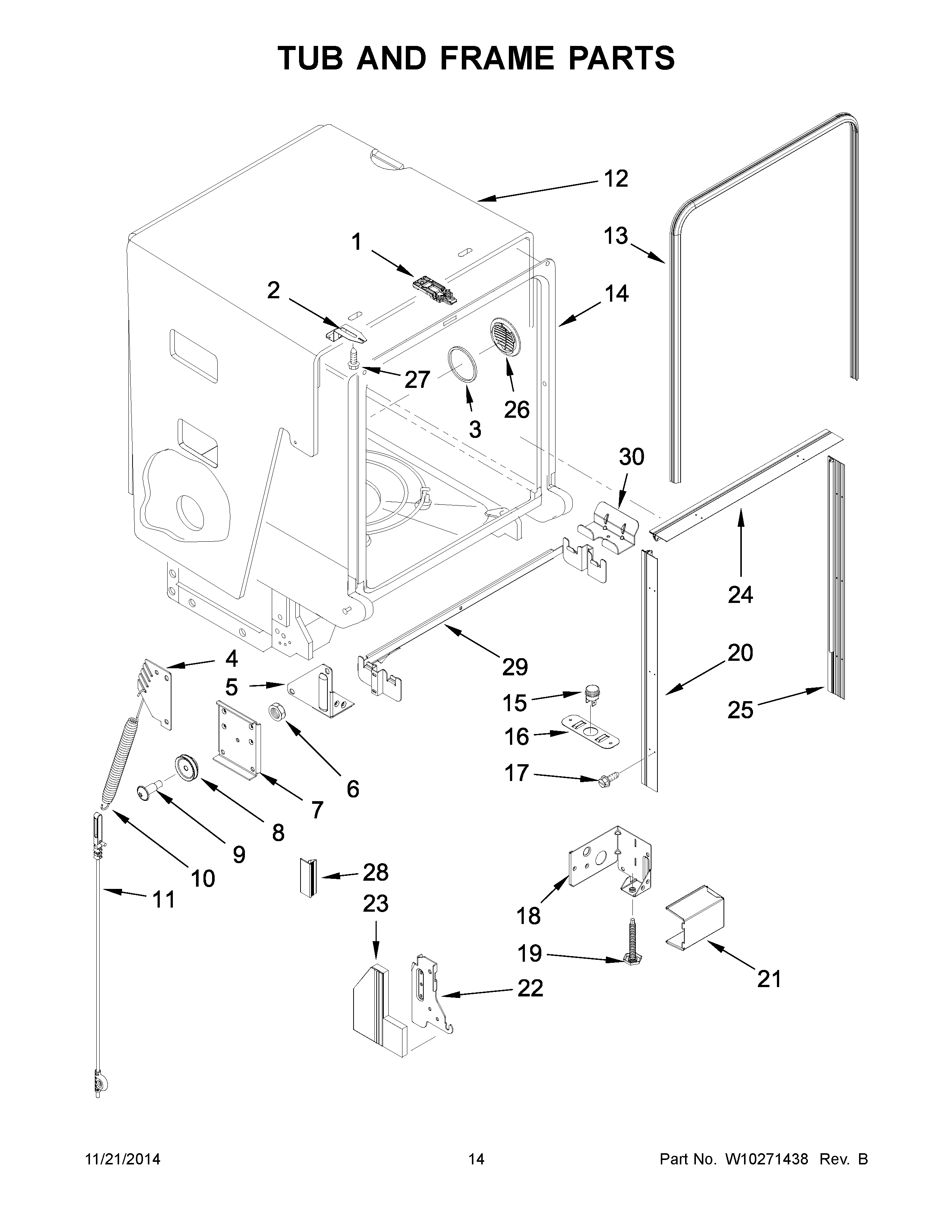

MDBH980AWB1 08 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 6-916881
3	WP99002150 Whirlpool Dishwasher Air Seal
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT LEFT
6	MAY 99003688
7	MAY W10173920
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	WP99003337 Whirlpool Door Seal
14	LINER (NOT A SERVICEABLE PART)
15	MAY 99002633
16	MAY W10167658
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	MAY W10143258
20	STRIP, TRIM LEFT
21	MAY 99002638
22A	MAY W10117484
22	MAY W10117485
23A	MAY W10174581
23	MAY W10174569
24	MAY W10164702
25	STRIP, TRIM RIGHT
26	MAY 99003078
27	MAY 6-912799
28	Gap Seal, Toe Kick (Black)
28A	Gap Seal, Toe Kick (White)
28B	Gap Seal, Toe Kick (Bisque)
29	MAY W10167660
30	MAY W10167916
