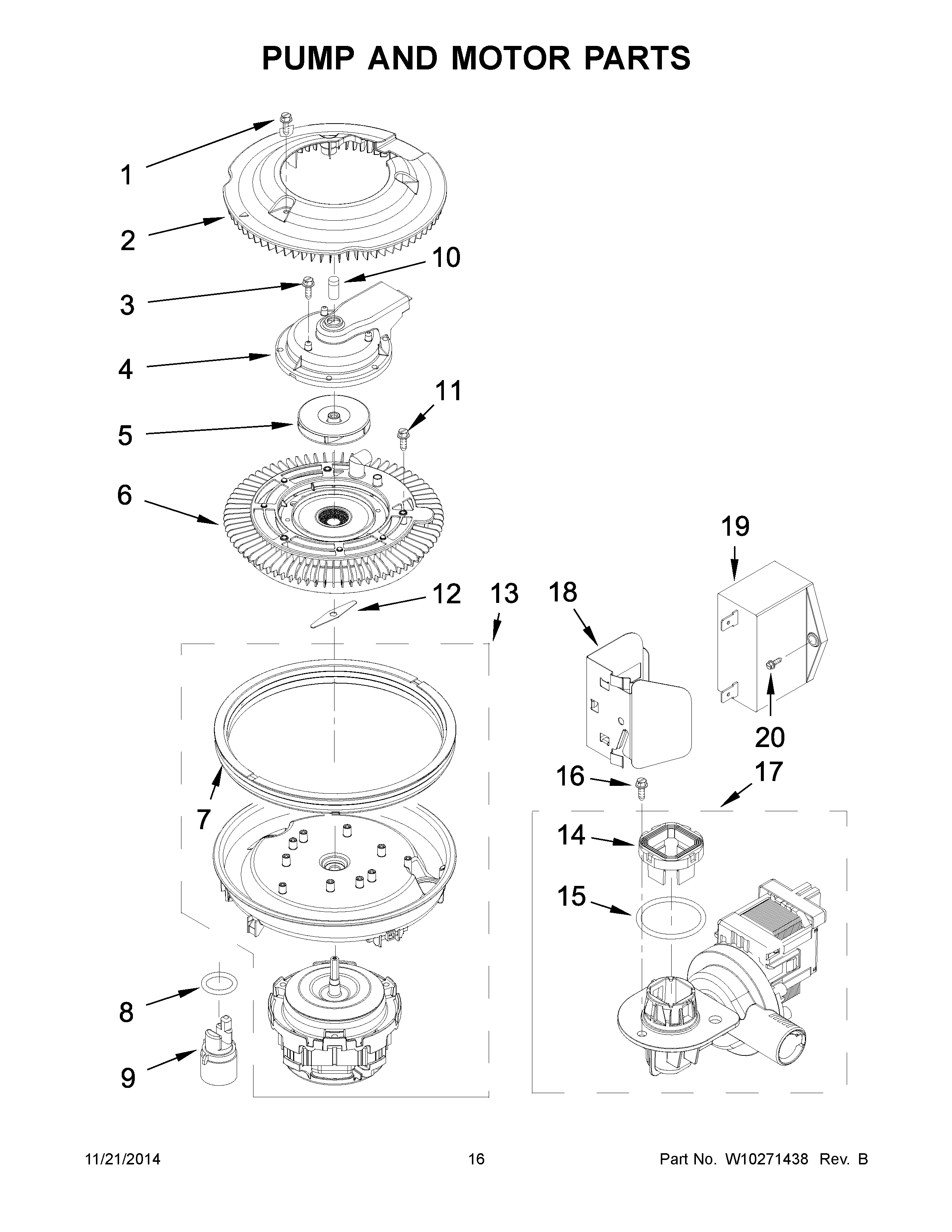

MDBH980AWB1 09 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	MAY W10166790
4	MAY W10212444
5	WP99002659 Whirlpool Impeller
6	MAY W10192800
7	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9	MAY W10120019
10	MAY 99003697
11	SCREW, STAINLESS PAN HEAD
12	MAY 99003427
13	MAY W10118627
14	MAY 99003309
15	MAY 99002857
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY W10200518
18	MAY W10167912
19	CAPACITOR, MOTOR
20	SCREW 10-32X.400 (T-20 HEAD)
