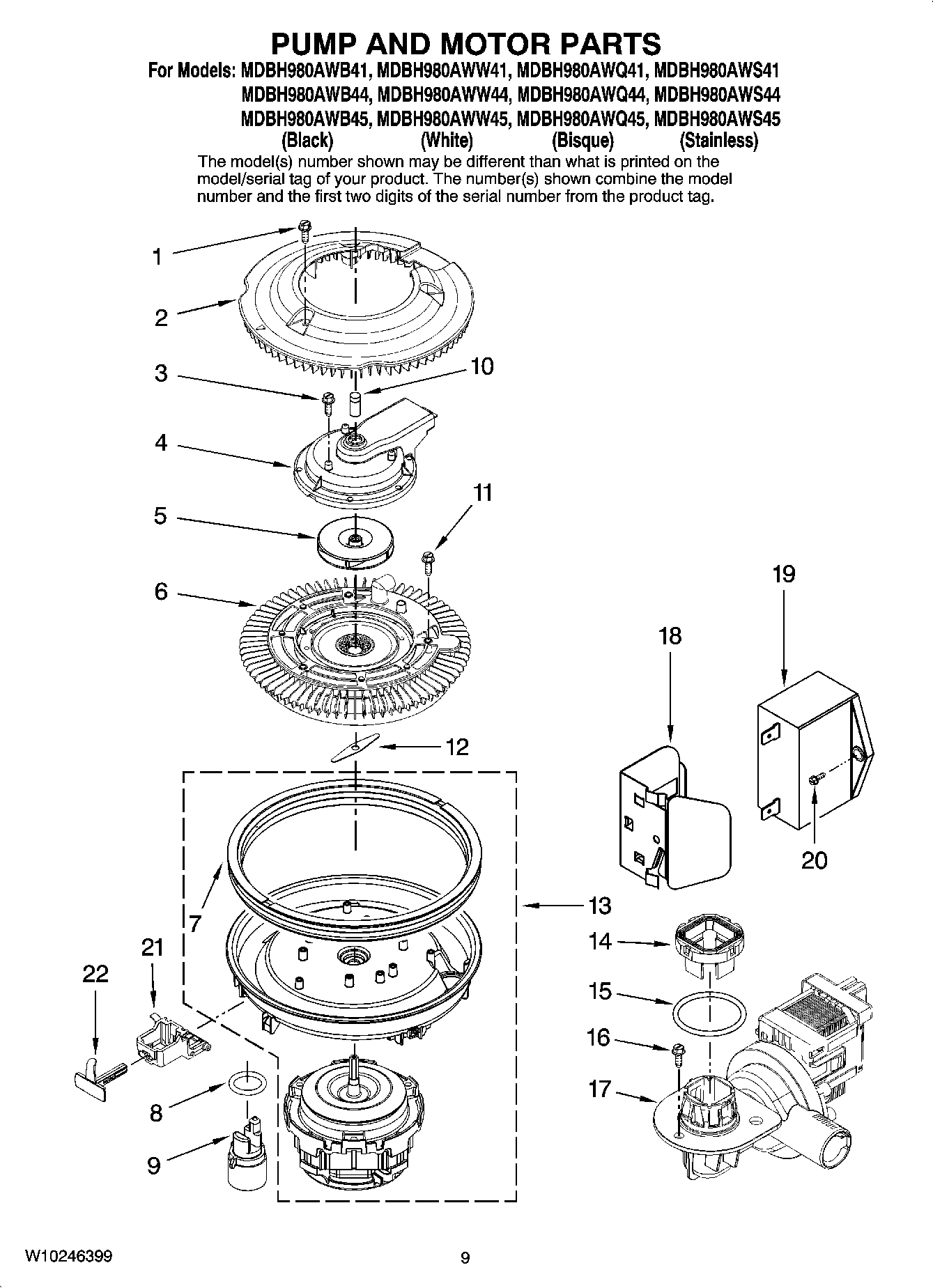

MDBH980AWB44 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	GUARD, FILTER (DARK GREY)
3	SCREW, STAINLESS PAN HEAD
4	MAY 99003145
5	WP99002659 Whirlpool Impeller
6	MAY W10142623
7	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9	MAY W10120019
10	MAY 99003697
11	SCREW, DISCHARGE HOUSING
12	MAY 99003427
13	WASH MOTOR ASSY SEAL NOT INCL
14	MAY 99003309
15	MAY 99002857
15	MAY 6-919963
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY W10200518
18	MAY W10167912
19	CAPACITOR, MOTOR
20	SCREW 10-32X.400 (T-20 HEAD)
22	MAY W10117485
32	MAY 99002698
