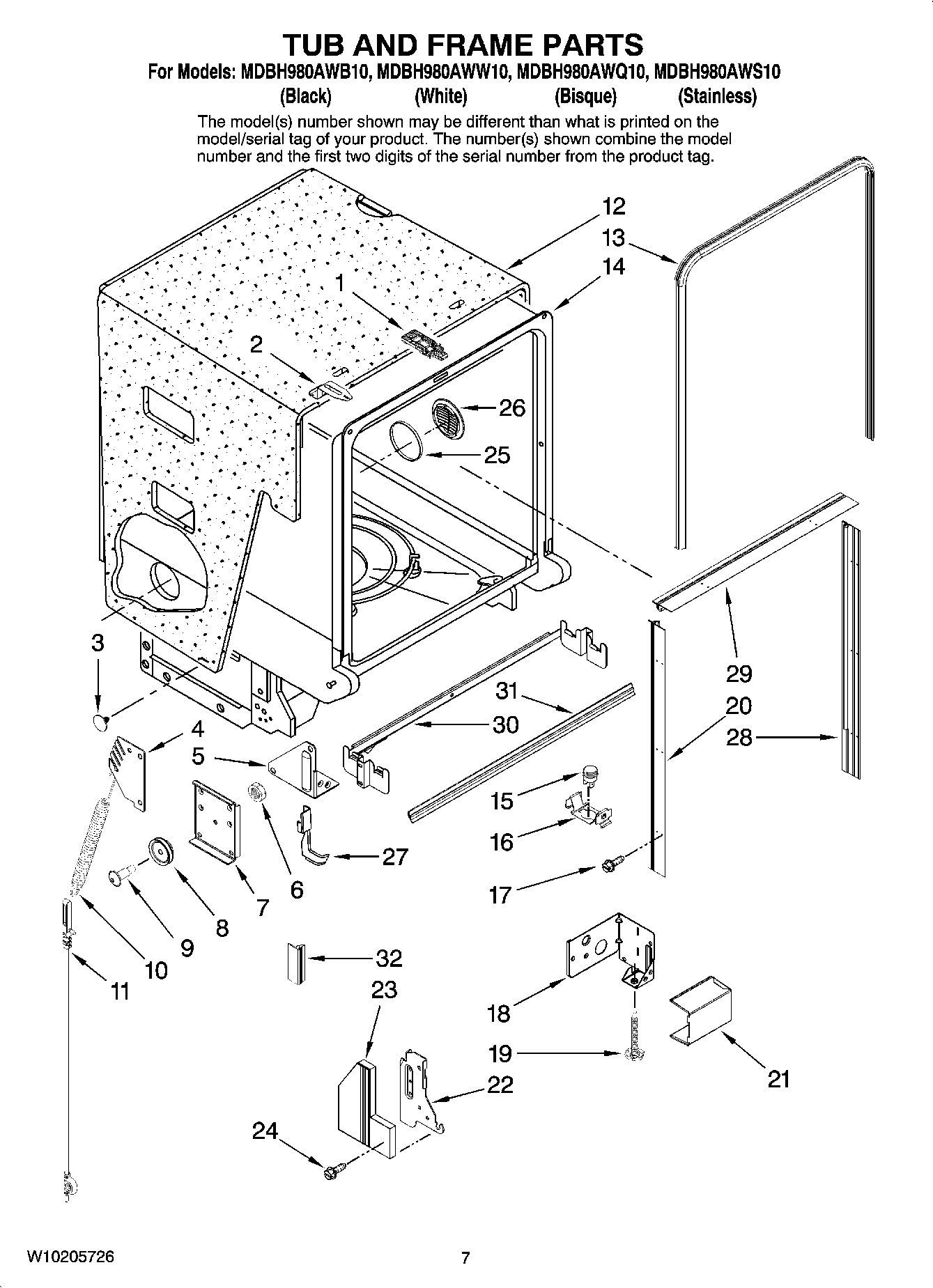

MDBH980AWS10 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 99002648
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
6	MAY 99003688
7	MAY 99003686
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	WP99003337 Whirlpool Door Seal
14	Tub Assembly
15	MAY 99002633
16	MAY 99001008
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	BRACKET, SUPPORT (LT)
20	MAY 99003034
21	MAY 99002638
22	MAY W10117484
22	MAY W10117485
23	BACKER, HINGE SEAL (RT)
23	BACKER, HINGE SEAL (LT)
24	SCREW 10-32X.400 (T-20 HEAD)
25	WP99002150 Whirlpool Dishwasher Air Seal
26	MAY 99003078
27	MAY 99003038
27	WP99003039 Whirlpool Dishwasher Trim
28	MAY 99003035
29	MAY 99003036
30	MAY W10167660
31	WP99003041 Whirlpool Dishwasher Trim
32	MAY 99002698
32	Damper, Toe Panel (Black)
