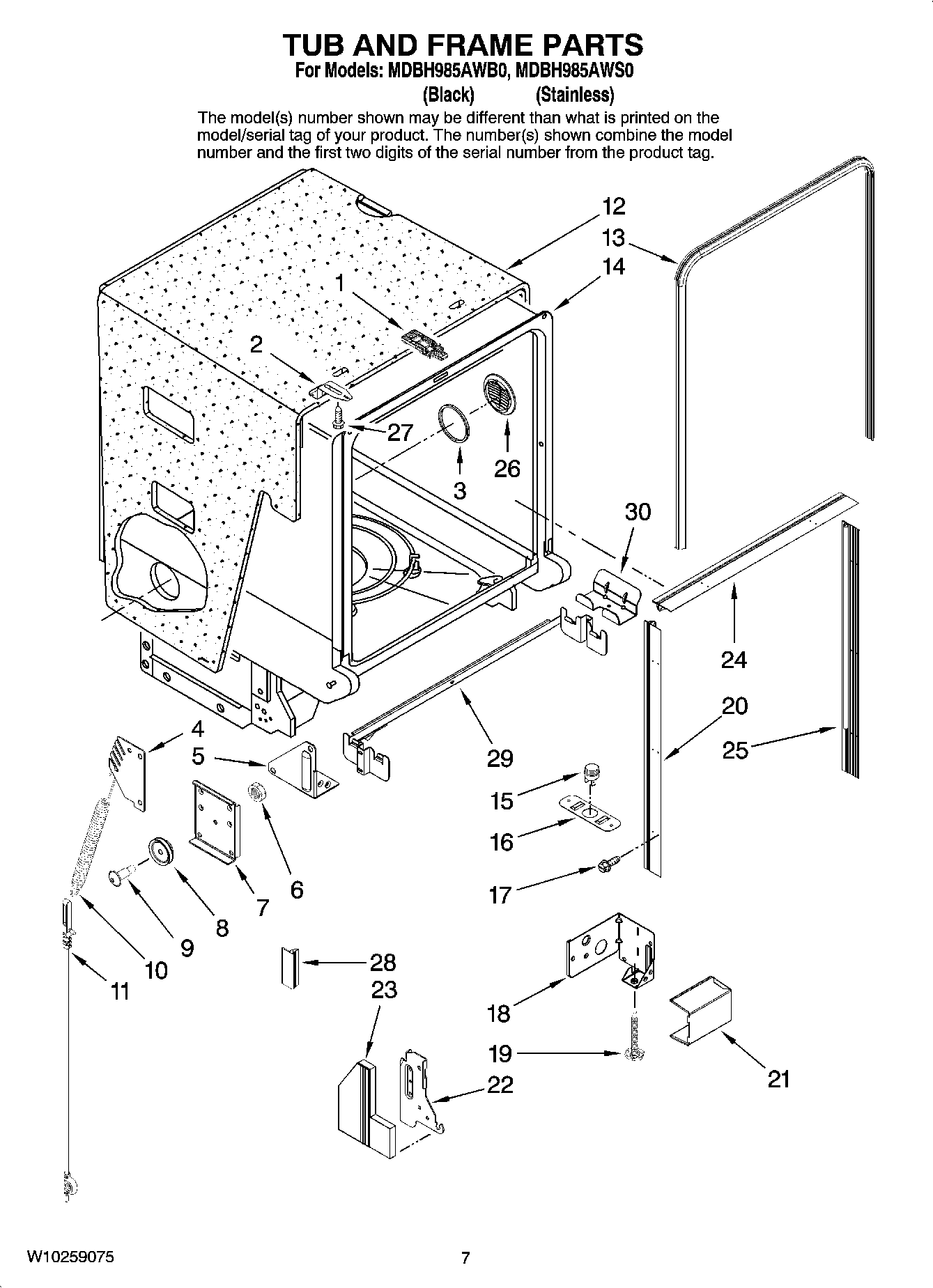

MDBH985AWB0 07 – TUB AND FRAME PARTS

MDBH985AWB0 07 – TUB AND FRAME PARTS

Written by

in

MDBH985AWB0 07 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10119337
2MAY 6-916881
3WP99002150 Whirlpool Dishwasher Air Seal
46-918346 Whirlpool Dishwasher Bracket
5BRACKET, SUPPORT LEFT
6MAY 99003688
7MAY W10173920
8WP99002608 Whirlpool Dishwasher Cable Roller
9MAY 99003687
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12WPW10223013 Whirlpool Dishwasher Insulation Pad
13WP99003337 Whirlpool Door Seal
15MAY 99002633
16MAY W10167658
17MAY 99002692
18BRACKET, JUNCTION BOX SUPPORT
19MAY W10143258
20STRIP, TRIM LEFT
21MAY 99002638
22MAY W10117485
22MAY W10117484
23MAY W10174569
23MAY W10174581
24MAY W10164702
25STRIP, TRIM RIGHT
26MAY W10259618
27MAY 6-912799
28Gap Seal, Toe Kick (Black)
28Gap Seal, Toe Kick (White)
28Gap Seal, Toe Kick (Bisque)
29MAY W10167660
30MAY W10167916
