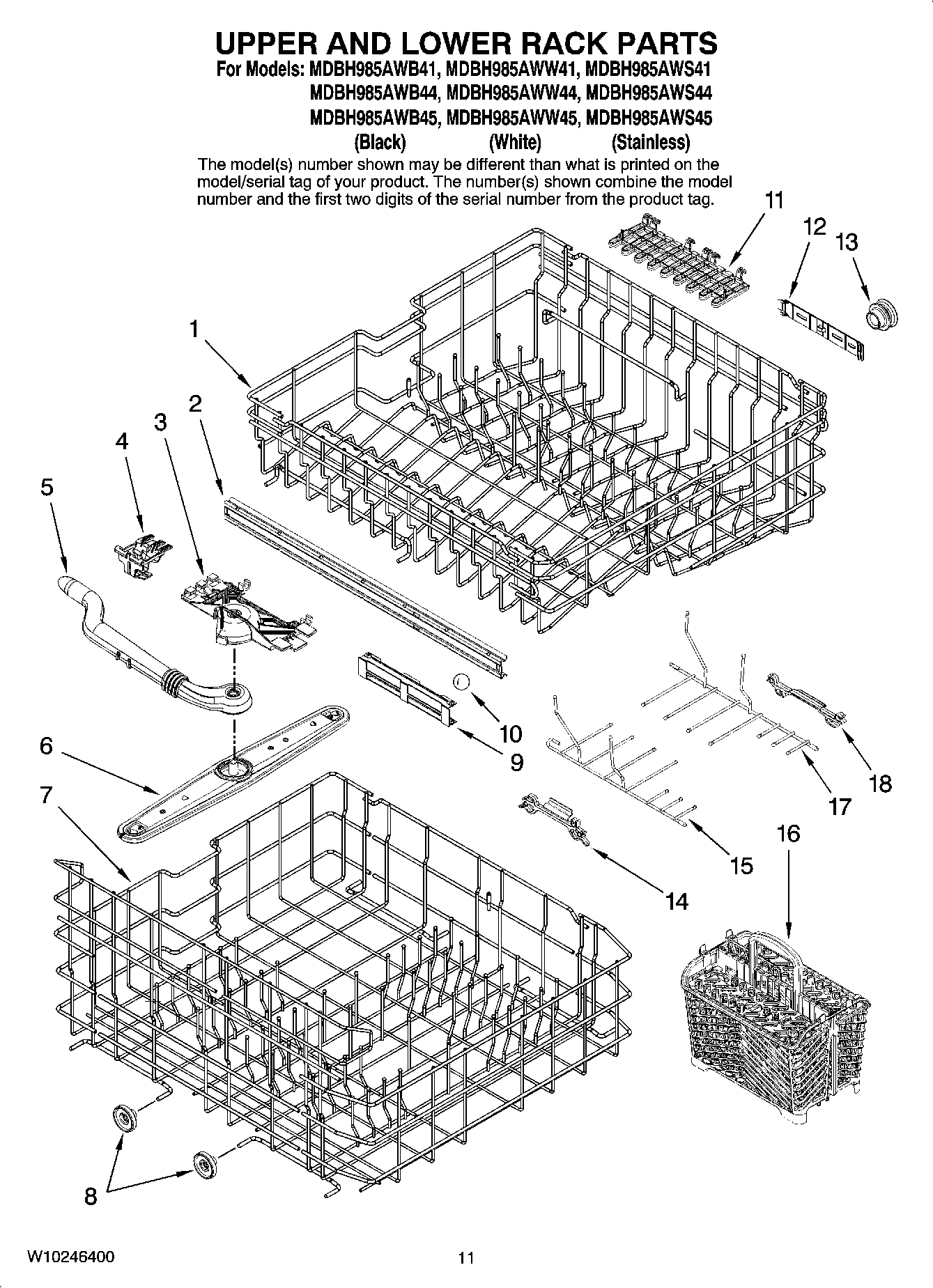

MDBH985AWB41 09 – UPPER AND LOWER RACK PARTS

MDBH985AWB41 09 – UPPER AND LOWER RACK PARTS

Written by

in

MDBH985AWB41 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10131669
2MAY 99003066
3CLIP, UPR WASH MANIFOLD (FRT)
499002945 Whirlpool Dishwasher Upper Wash Manifold Clip
5WASH MANIFOLD ASSY (UPR)
6WP99003070 Whirlpool Dishwasher Wash Arm
7MAY W10120550
8WP99002780 Whirlpool Lower Wheel Assembly
9MAY 99003069
10WP99003068 Whirlpool Dishwasher Bearing
11MAY 99002671
12MAY 99003053
12MAY 99003052
13WP99003147 Whirlpool Dishwasher Upper Rack Wheel
14WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
15WP99003497 Whirlpool Dishwasher Tine Row
16MAY 99002683
17WP99003496 Whirlpool Convertible Row Tine
18WP99002687 Whirlpool Tine Pivot Clip
