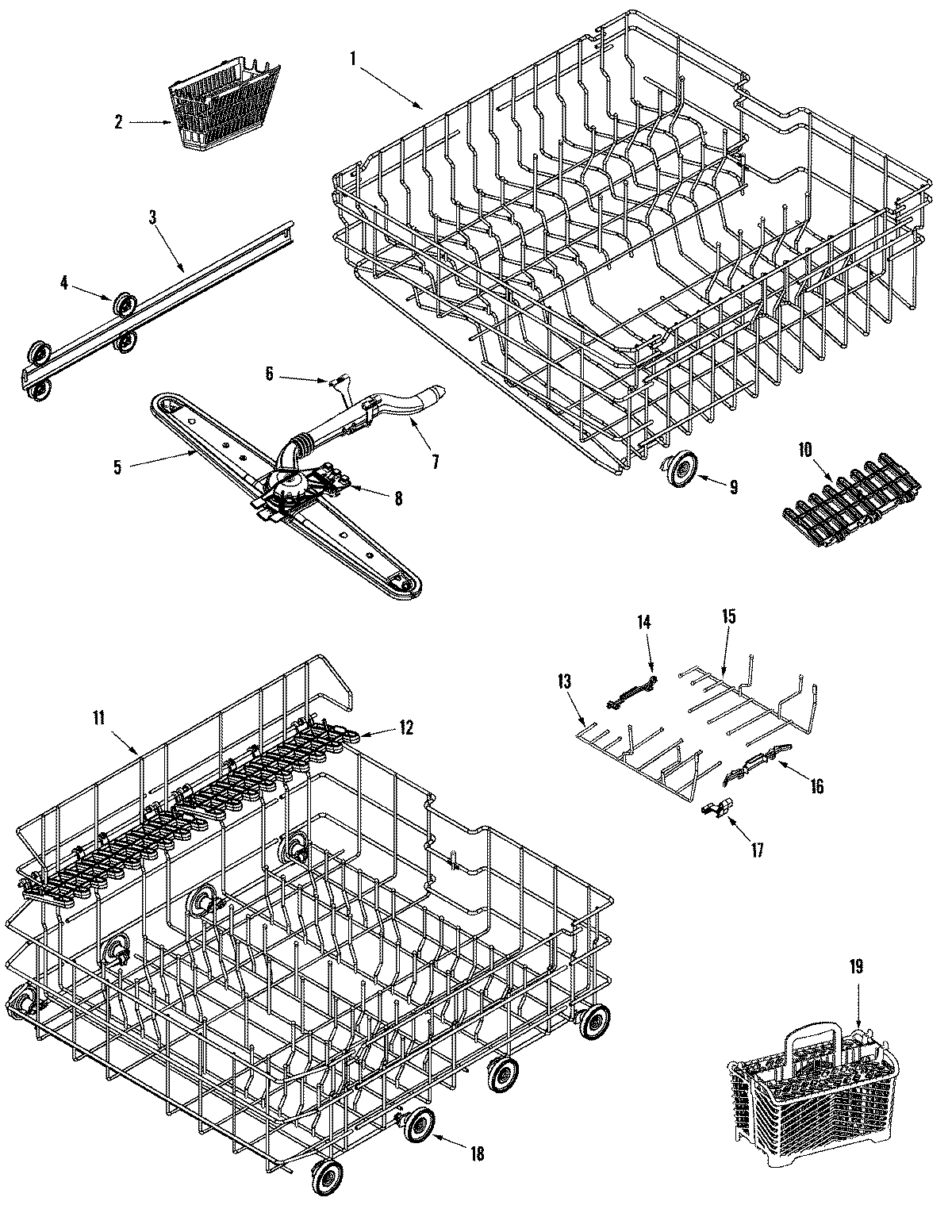

MDBM601AWB 05 – TRACK & RACK ASSEMBLY

Written by

Products

Position	Product
1	MAY 99002017
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99002954
5	MAY 99002867
5	MAY 99002647
5	MAY 99002646
5	MAY 99002645
5	MAY 99002955
6	MAY 99002588
7	MAY 99002648
8	PANEL, TOE (W/DAMPER-BLK)
9	6-918346 Whirlpool Dishwasher Bracket
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WP6-912366 Whirlpool Dishwasher Screw
12	SUPPORT, FRONT (W/SEALS)(BLK)
13	SCREW 10-32X.400 (T-20 HEAD)
13	MAY 99002927
13	MAY 99002928
32	TRIM STRIP ASSEMBLY (RT)
