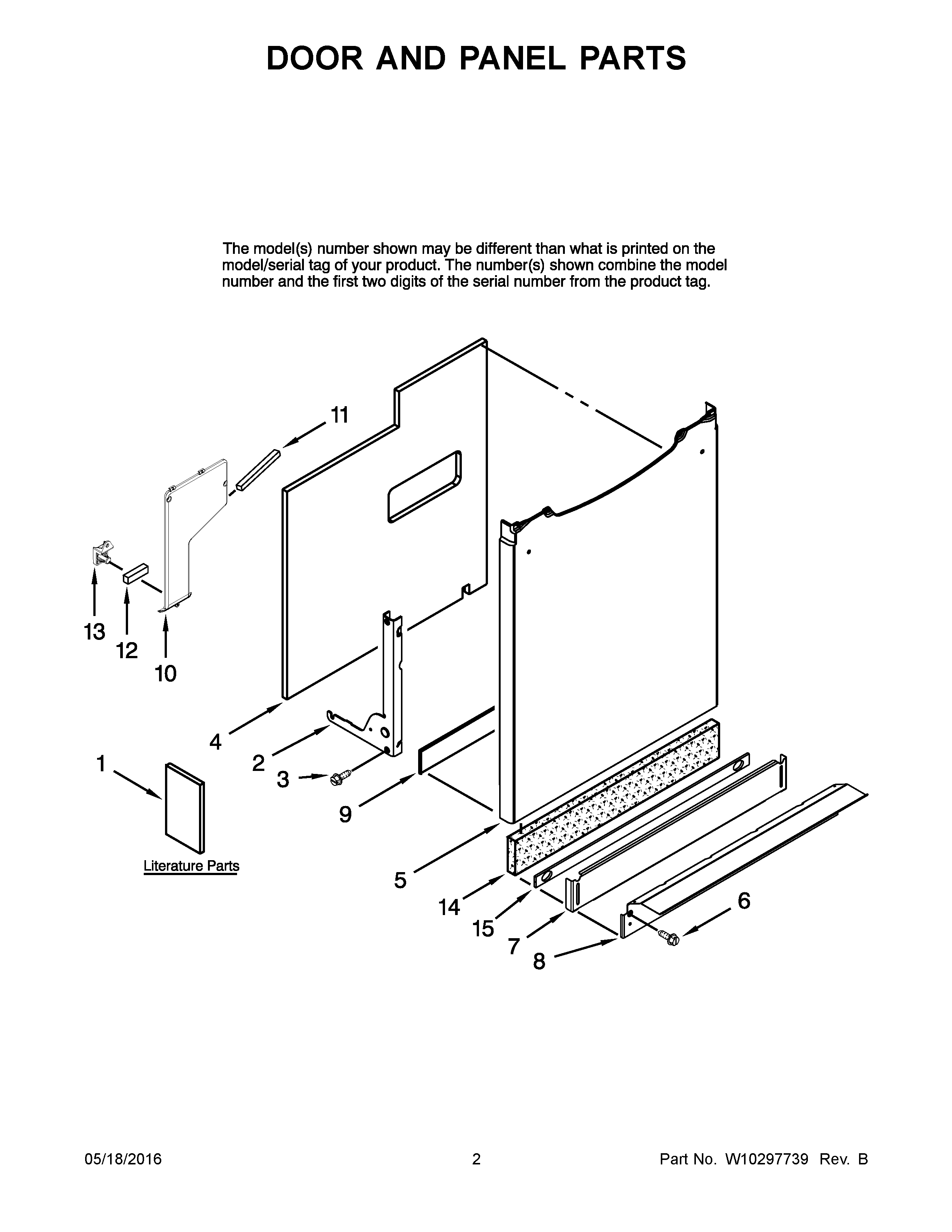

MDBM601AWB3 02 – DOOR AND PANEL PARTS

MDBM601AWB3 02 – DOOR AND PANEL PARTS

Written by

in

MDBM601AWB3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10260100
1MAY W10212195
1BMAY W10157790
2AMAY W10202227
2MAY W10202226
3MAY 99001075
4INSULATION, DOOR
5MAY 99003299
5AMAY 99003300
5BMAY 99003302
6ASCREW, ACCESS PANEL
6WP6-912366 Whirlpool Dishwasher Screw
7AMAY 99002766
7PANEL, TOE (W/DAMPER-BLK)
8AMAY 99002593
8MAY 99002591
9MAY W10117748
10MAY W10185633
11Foam Strip(Long)
12MAY 99003482
13MAY 99003541
14WP6-920587 Whirlpool Dishwasher Shield
15Damper, Toe Panel (Black)
15AMAY 99002698
