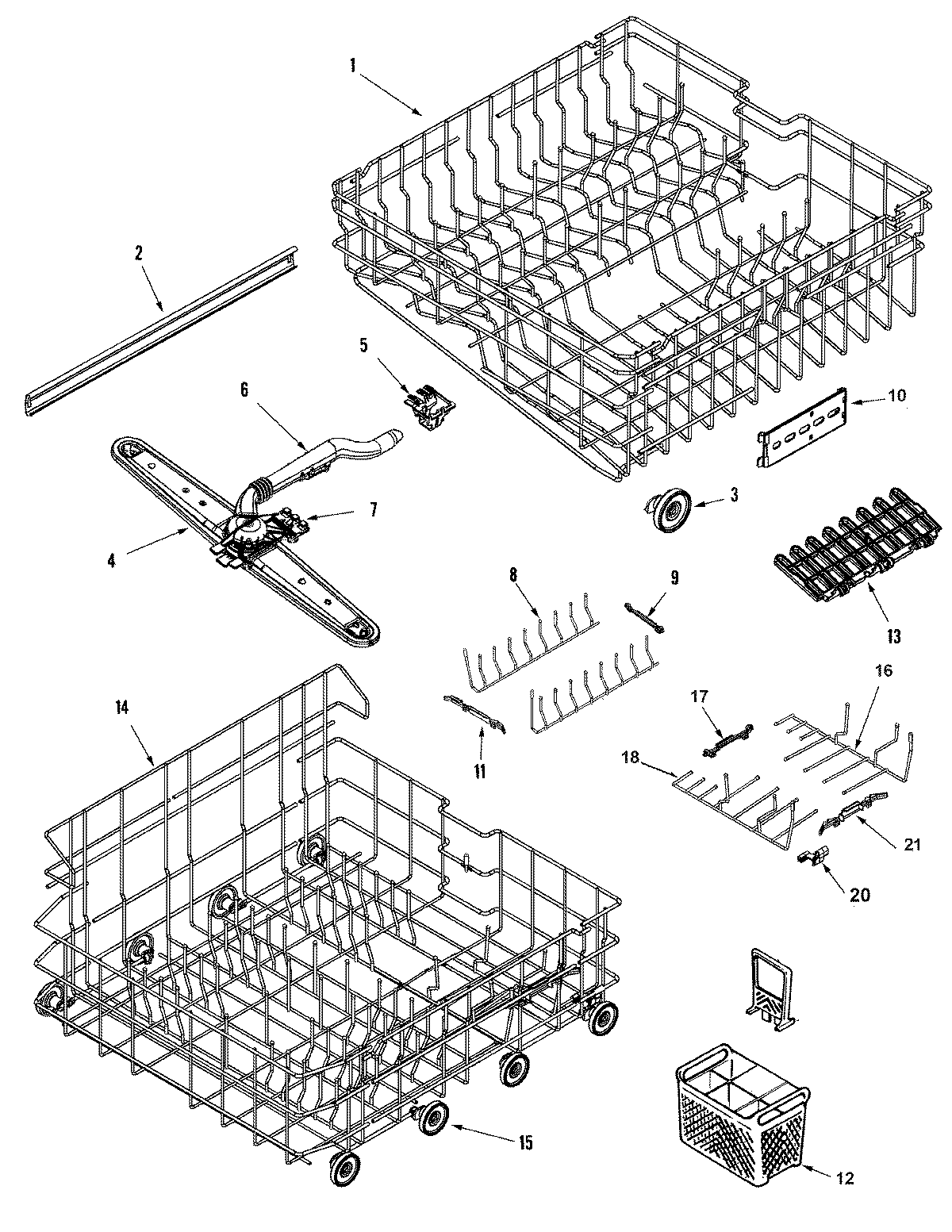

MDBM755AWB 04 – RAIL & RACK ASSEMBLY

MDBM755AWB 04 – RAIL & RACK ASSEMBLY

Written by

in

MDBM755AWB 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003492
2WP99003281 Whirlpool Gray Rail Stop
2MAY 99003069
2MAY 99003066
2WP99003068 Whirlpool Dishwasher Bearing
3WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8MAY 99003485
9WP99002709 Whirlpool Tine Pivot Clip
10MAY 99003053
10MAY 99003052
11WP99003484 Whirlpool Dishwasher Folding Tine Clip
12WP6-918873 Whirlpool Silverware Basket
12MAY 99002619
13MAY 99002671
14MAY 99002905
14MAY 99003311
15WP99002780 Whirlpool Lower Wheel Assembly
16WP99003497 Whirlpool Dishwasher Tine Row
17WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
18WP99003496 Whirlpool Convertible Row Tine
20MAY 99003003
21WP99002687 Whirlpool Tine Pivot Clip
