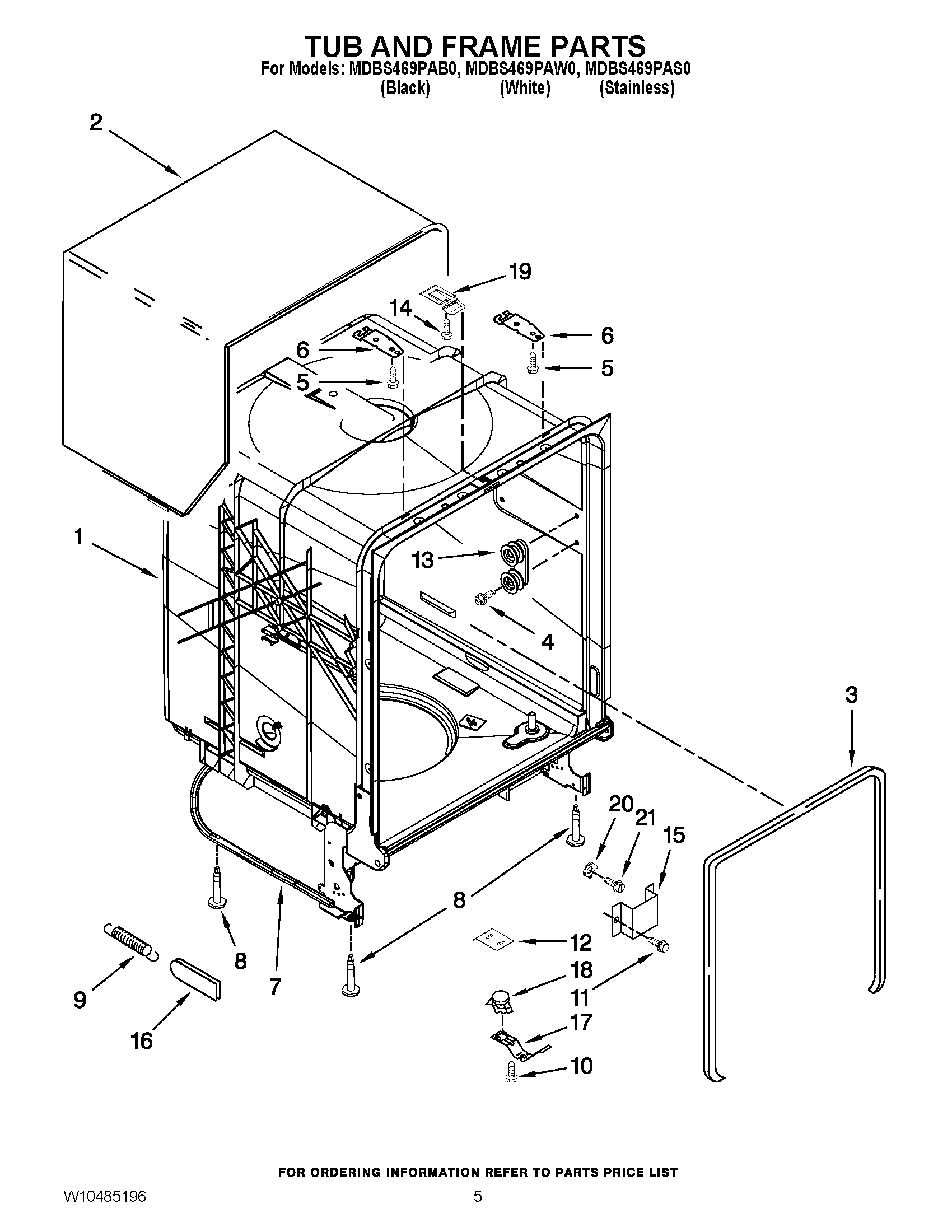

MDBS469PAB0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573240
3	MAY W10284090
4	MAY W10341745
5	MAY 3367670
6	MAY 8269145
7	SUPPORT ASSEMBLY, BOTTOM
8	MAY 8524584
9	SPRING, DOOR
10	SCREW
11	MAY W10165274
12	SHIELD, THERMOSTAT
13	MAY 8270016
14	MAY W10277003
15	MAY 8268991
16	MAY 8268990
17	MAY 3378595
18	MAY W10339474
19	STRIKE, LATCH
20	WASHER, PRONGED CUP
21	MAY 3400014
