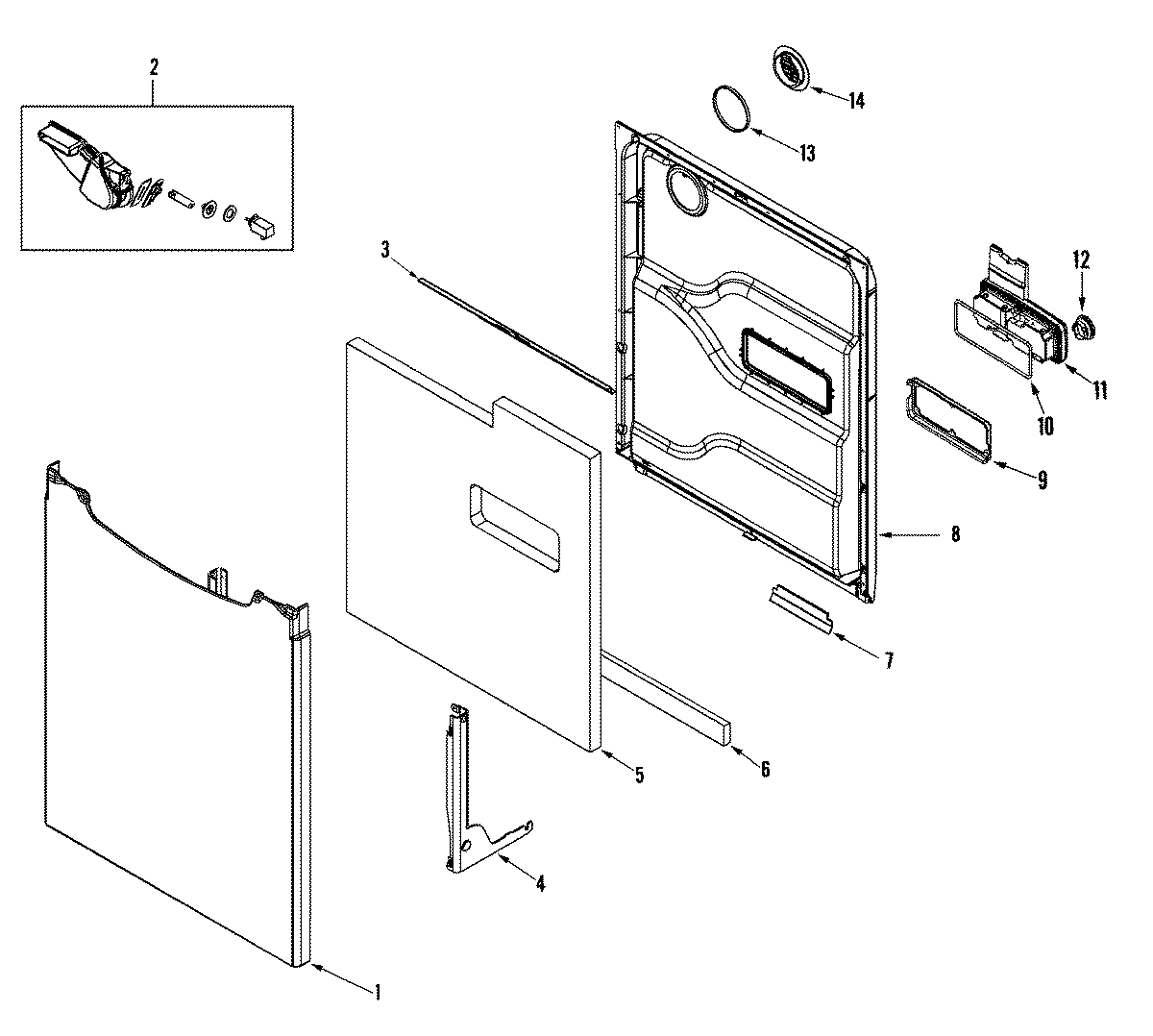

MDBS561AWB 02 – DOOR

MDBS561AWB 02 – DOOR

Written by

in

MDBS561AWB 02 – DOOR

Products

PositionProduct
1PANEL, DECO (W/DAMPER-BLK)
2VENT HOUSING ASSEMBLY
3MAY 99002586
4MAY W11063108
4MAY 99002929
4MAY 99001075
4WPW10118637 Whirlpool Dishwasher Bracket
4BRACKET, HINGE (RT)
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7WP99002589 Whirlpool Dishwasher Door Seal
8DOOR, INNER (W/DAMPER)
8DOOR LINER, SECONDARY
8MAY 99003541
8MAY 99003482
8Foam Strip(Long)
8WPY912620 Whirlpool Dishwasher Screw
9SCREW, No.8X1/2 HEX WASHER HEAD
96-918900 Whirlpool Dishwasher Bracket
10MAY 99002270
11MAY 99002611
12WP99002614 Whirlpool Dishwasher Rinse Knob
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
