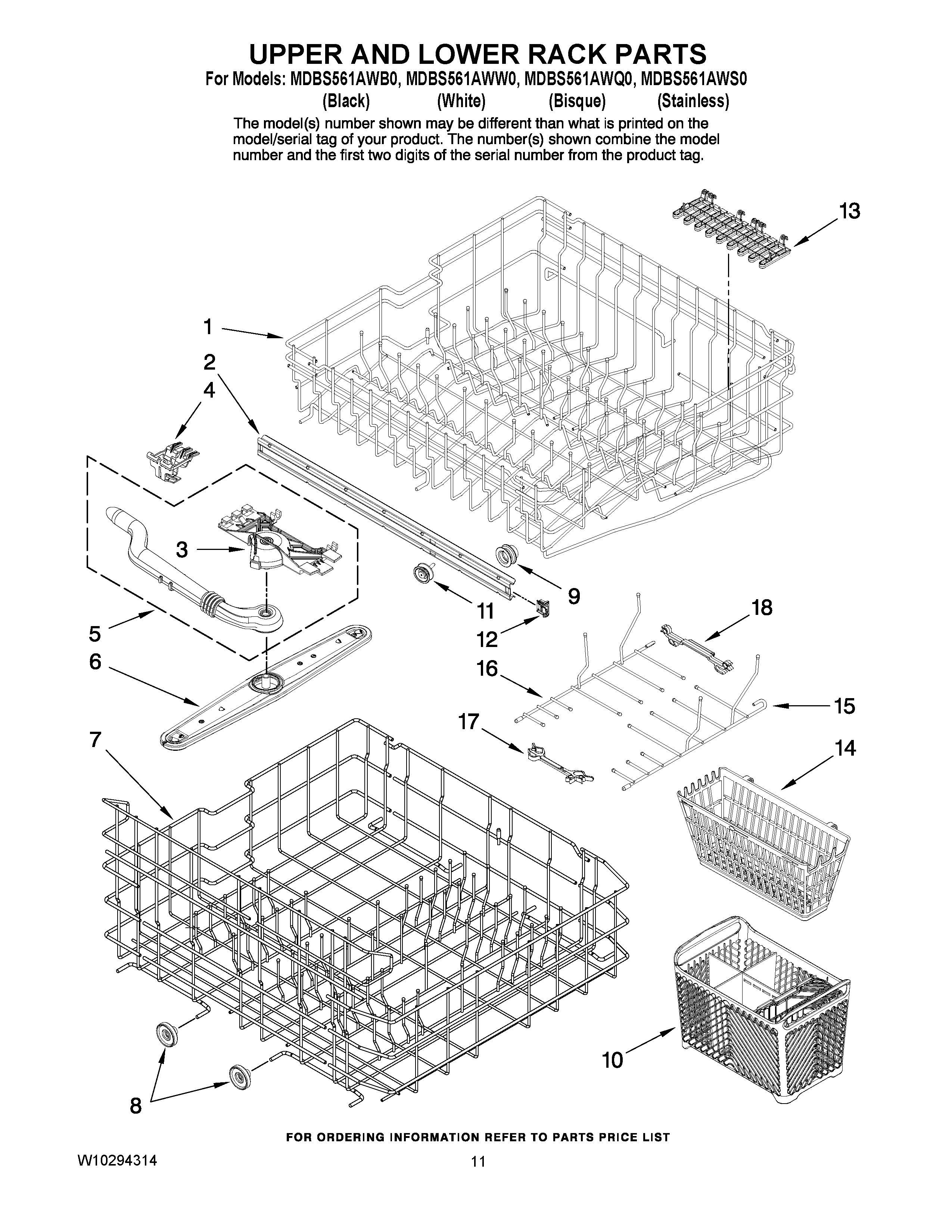

MDBS561AWS0 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10203876
2TRACK, RACK
3CLIP, UPR WASH MANIFOLD (FRT)
499002945 Whirlpool Dishwasher Upper Wash Manifold Clip
5WASH MANIFOLD ASSY (UPR)
6WP99003070 Whirlpool Dishwasher Wash Arm
7MAY W10203868
8MAY 6-916988
9WP99002781 Whirlpool Dishwasher Wheel
10MAY W10171734
11WP99002947 Whirlpool Tub Wheel
12MAY 99003476
13MAY 99002671
14BASKET, AUXILIARY
15TINE, CONV.(FRONT)
16TINE, CONV.(REAR)
17WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
18WP99002687 Whirlpool Tine Pivot Clip
