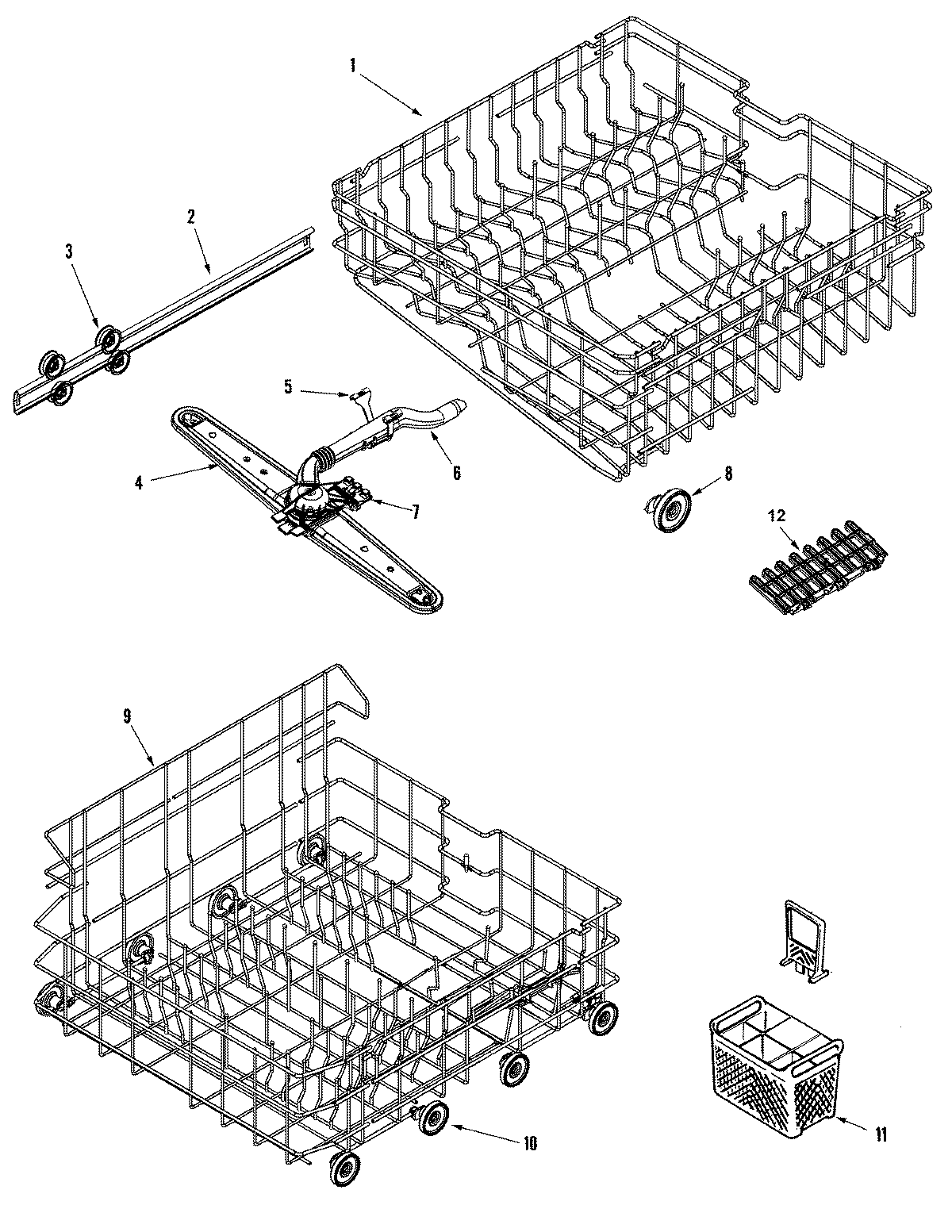

MDBS661AWQ 05 – TRACK & RACK ASSEMBLY

MDBS661AWQ 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBS661AWQ 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99002905
1MAY 99003313
2TRACK, RACK
2MAY 99003476
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
3WP99002947 Whirlpool Tub Wheel
4SCREW, TRUSS HEAD (10-18X.75)
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8WP99002781 Whirlpool Dishwasher Wheel
9MAY 99003311
10WP99002780 Whirlpool Lower Wheel Assembly
11MAY 99002618
11WP6-918873 Whirlpool Silverware Basket
11MAY 99002619
12MAY 99002671
