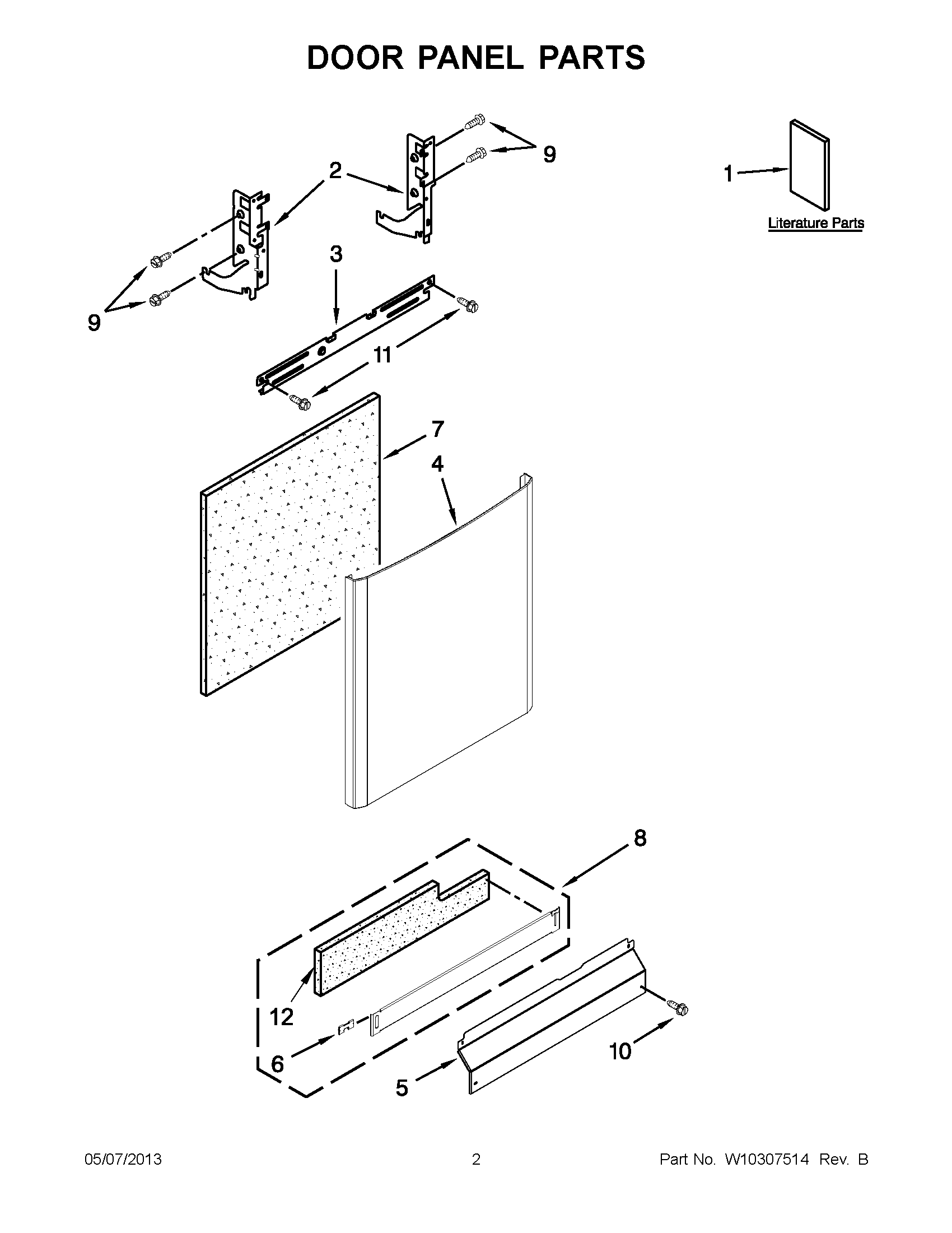

MDBTT53AWB1 01 – DOOR PANEL PARTS

MDBTT53AWB1 01 – DOOR PANEL PARTS

Written by

in

MDBTT53AWB1 01 – DOOR PANEL PARTS

Products

PositionProduct
1MAY W10240116
1TECH SHEET
1MAY W10240159
1MAY W10240117
1MAY W10240115
2MAY 8534854
2MAY 8534853
3MAY 8268983
4MAY W10240060
4MAY W10240061
5MAY W10195778
5MAY W10195777
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9SCREW
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
11Screw
12INSULATION, ACCESS PANEL
