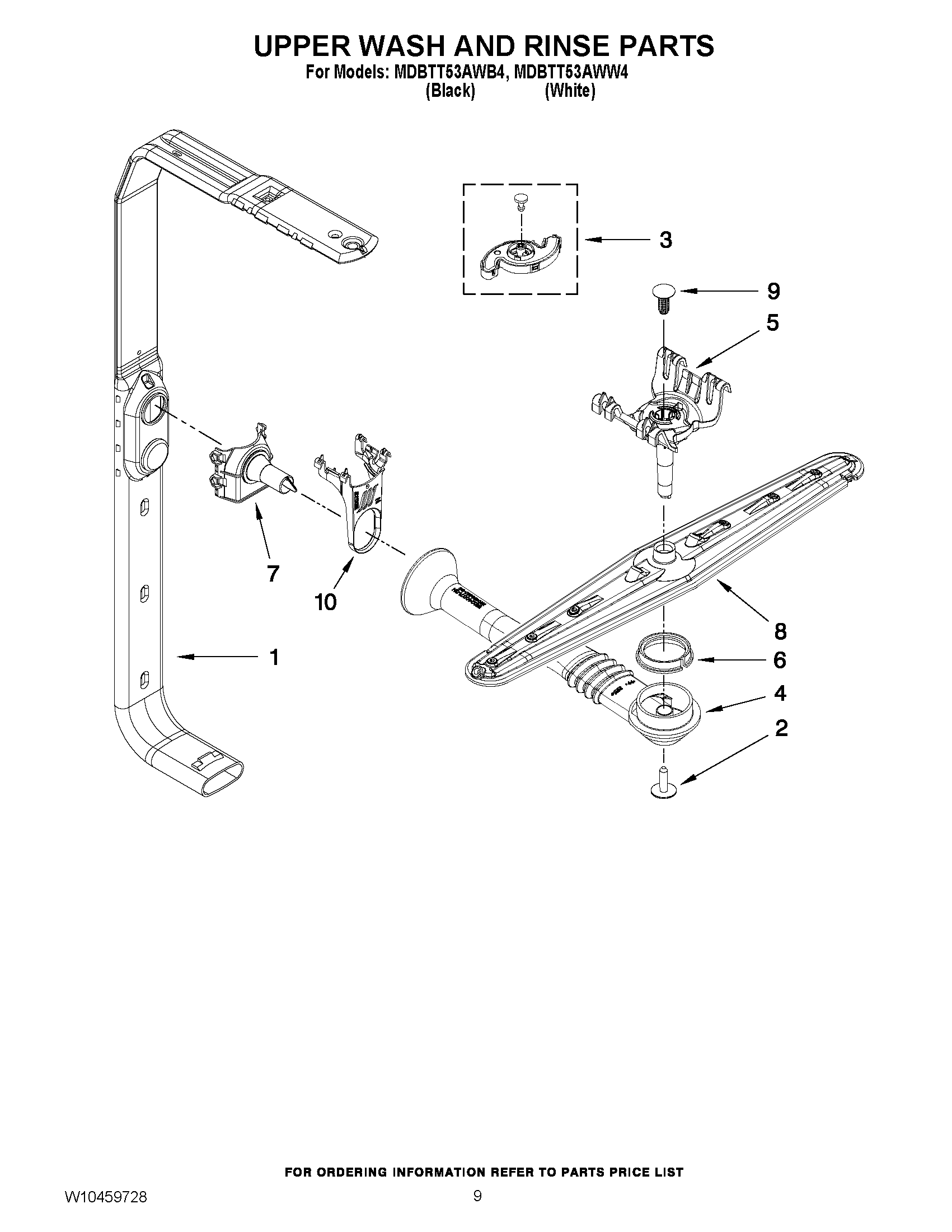

MDBTT53AWB4 07 – UPPER WASH AND RINSE PARTS

MDBTT53AWB4 07 – UPPER WASH AND RINSE PARTS

Written by

in

MDBTT53AWB4 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1FEED TUBE (INCLUDES ITEM 3)
2MAY W10349488
3SPRAYARM, 3RD LEVEL
4MAY W10199810
5MAY W10199808
6MAY 8268433
7NOZZLE-FEED
8SPRAY ARM
9RETAINER, PUSH-IN
10MAY W10199809
