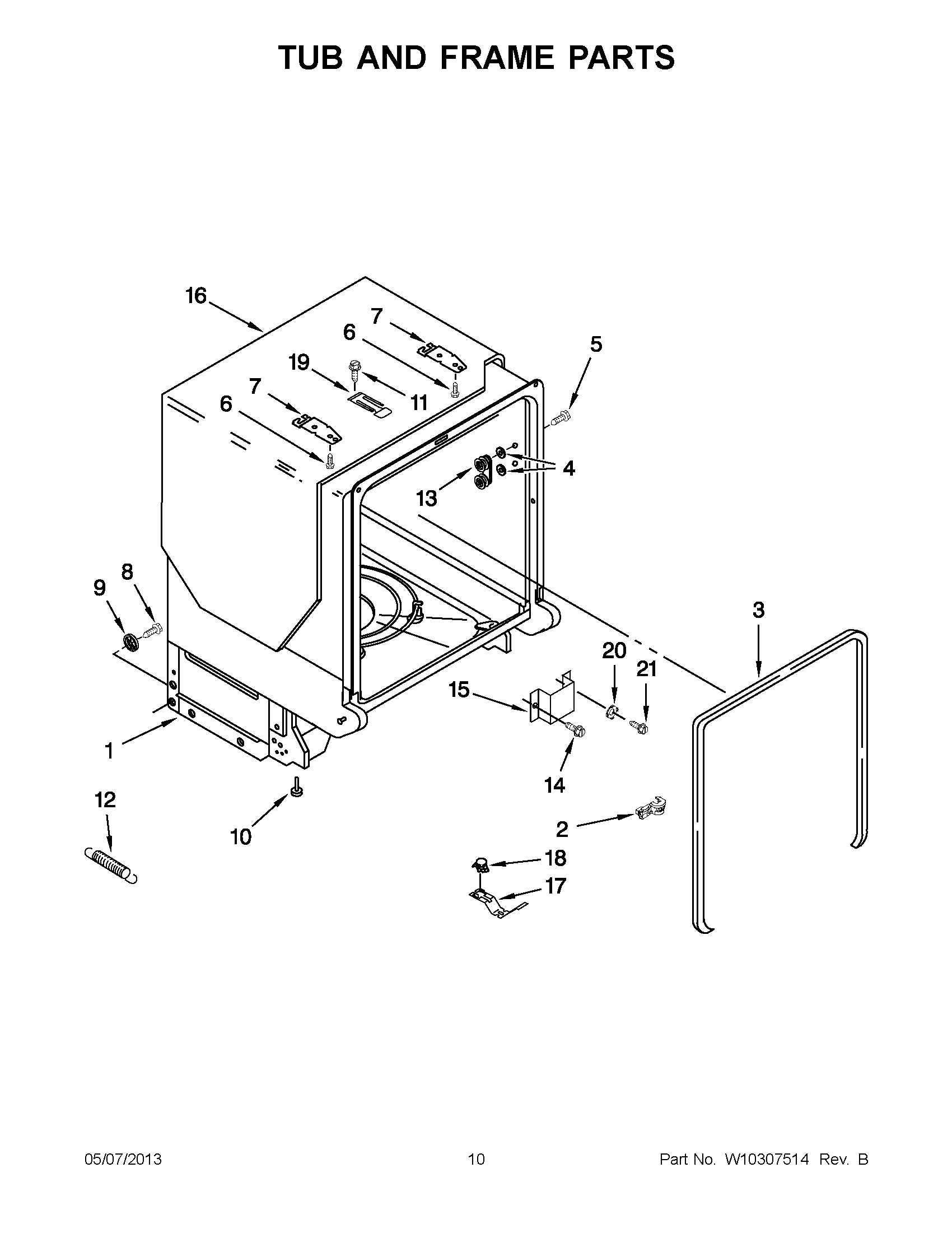

MDBTT53AWW1 05 – TUB AND FRAME PARTS

Written by

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	MAY 8268888
4	MAY 9743002
5	SCREW
6	MAY 3367670
7	MAY 8269145
8	SCREW
9	MAY 8269831
10	MAY 8524584
11	MAY W10165274
12	MAY 8524473
13	MAY 8270016
14	MAY 3400892
15	MAY 8268991
16	MAY 8573240
17	MAY 3378595
18	MAY 661566
19	STRIKE, LATCH
20	WASHER, PRONGED CUP
21	MAY 3400014
