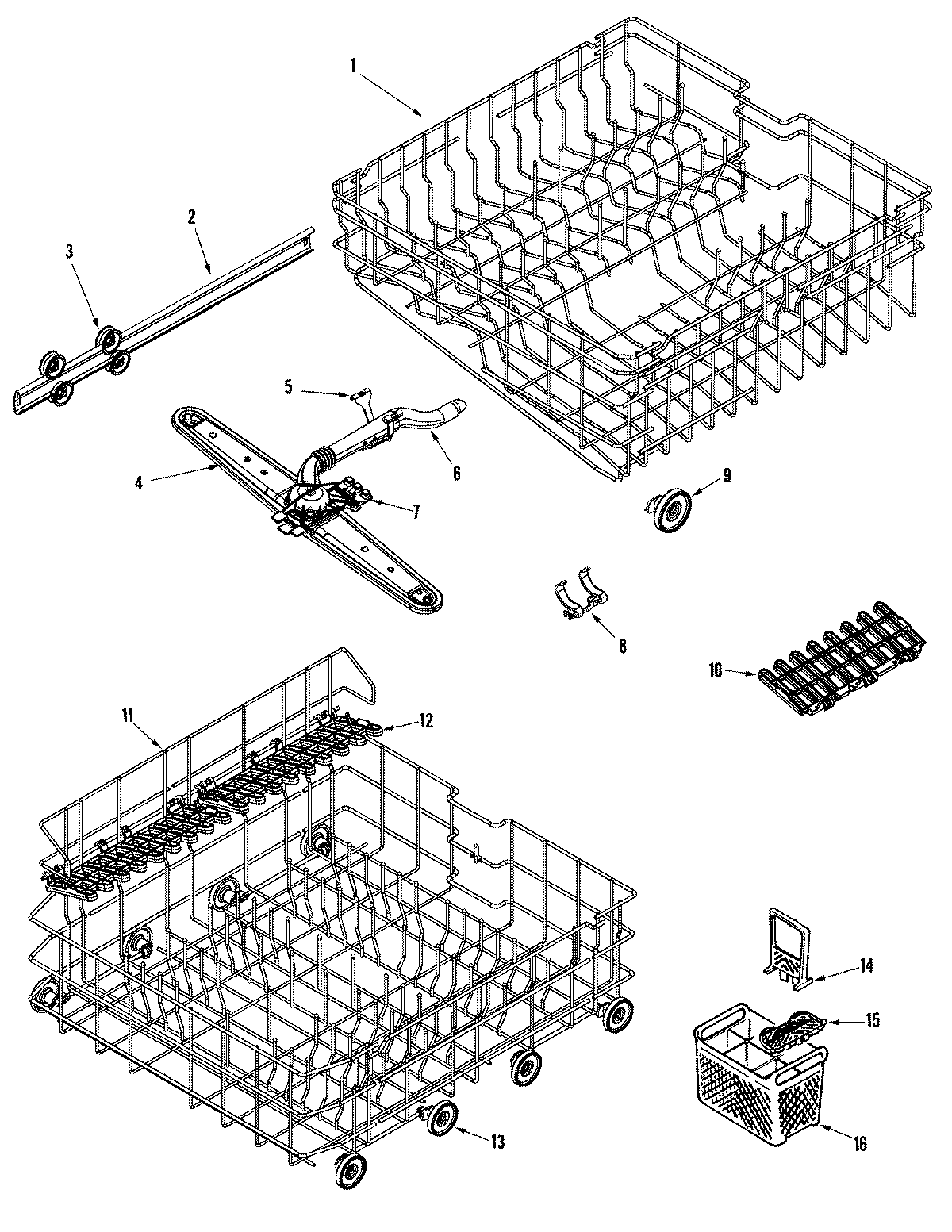

MDBTT59AWB 05 – TRACK & RACK ASSEMBLY

MDBTT59AWB 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBTT59AWB 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99002681
1MAY 99003018
2WPW10261227 Whirlpool Dishwasher Stop Assembly
2TRACK, RACK
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
3WP99002947 Whirlpool Tub Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
4SCREW, TRUSS HEAD (10-18X.75)
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
9WP99002781 Whirlpool Dishwasher Wheel
10MAY 99002671
11MAY 99002017
11MAY 99002616
11MAY 99002964
12MAY 99002672
13WP99002780 Whirlpool Lower Wheel Assembly
14MAY 99002619
15MAY 99002618
16WP6-918873 Whirlpool Silverware Basket
