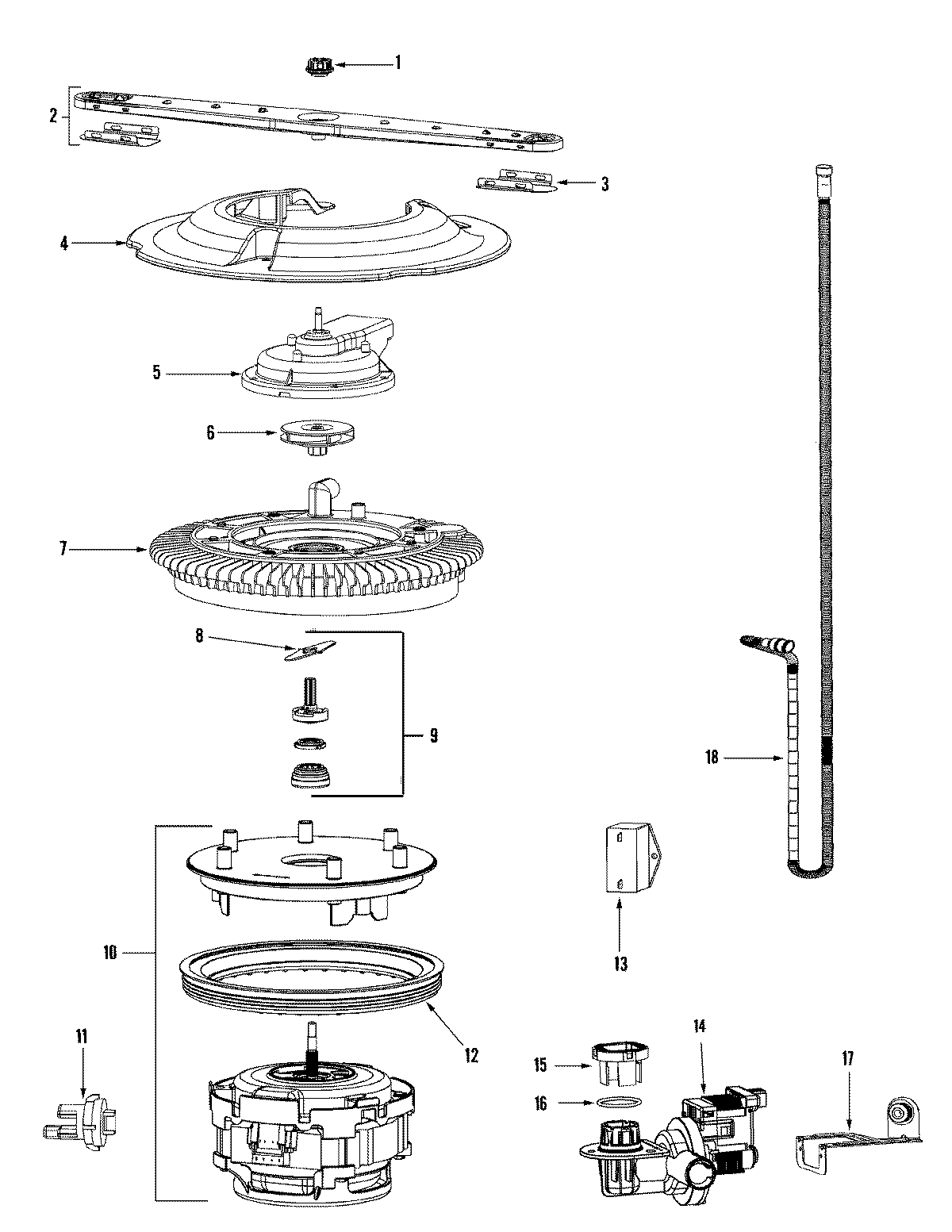

MDBTT60AWB 03 – PUMP & MOTOR

Products

Position	Product
1	WP99002654 Whirlpool Nut
2	WP6-917642 Whirlpool Dishwasher Wash Arm
3	MAY 99002653
4	MAY 99002666
4	WPW10166788 Whirlpool Dishwasher Filter Frame
5	SCREW, DISCHARGE HOUSING
5	DISCHARGE HOUSING ASSY (UPR)
6	WP99002659 Whirlpool Impeller
6	MAY 99002660
7	WPW10192799 Whirlpool Dishwasher Accumulator
7	SCREW, STAINLESS PAN HEAD
7	6-918900 Whirlpool Dishwasher Bracket
8	MAY 99003427
8	MAY 99002270
9	MAY 99003341
9	Dispenser, Rinse Aid
10	WP99002614 Whirlpool Dishwasher Rinse Knob
10	WASH MOTOR ASSY SEAL NOT INCL
11	MAY 99002186
11	MAY 99003613
11	WPW10120019 Whirlpool Dishwasher Sensor
12	99002590 Whirlpool Dishwasher Door Vent Bezel
13	MAY 99002586
14	MAY W10200518
14	MAY W10119816
15	MAY 99003309
15	WPY912620 Whirlpool Dishwasher Screw
16	MAY 99002857
17	MAY 99002752
17	MAY 99002657
18	WP99002652 Whirlpool Drain Hose
18	WP99002656 Whirlpool Dishwasher Drain Clamp
