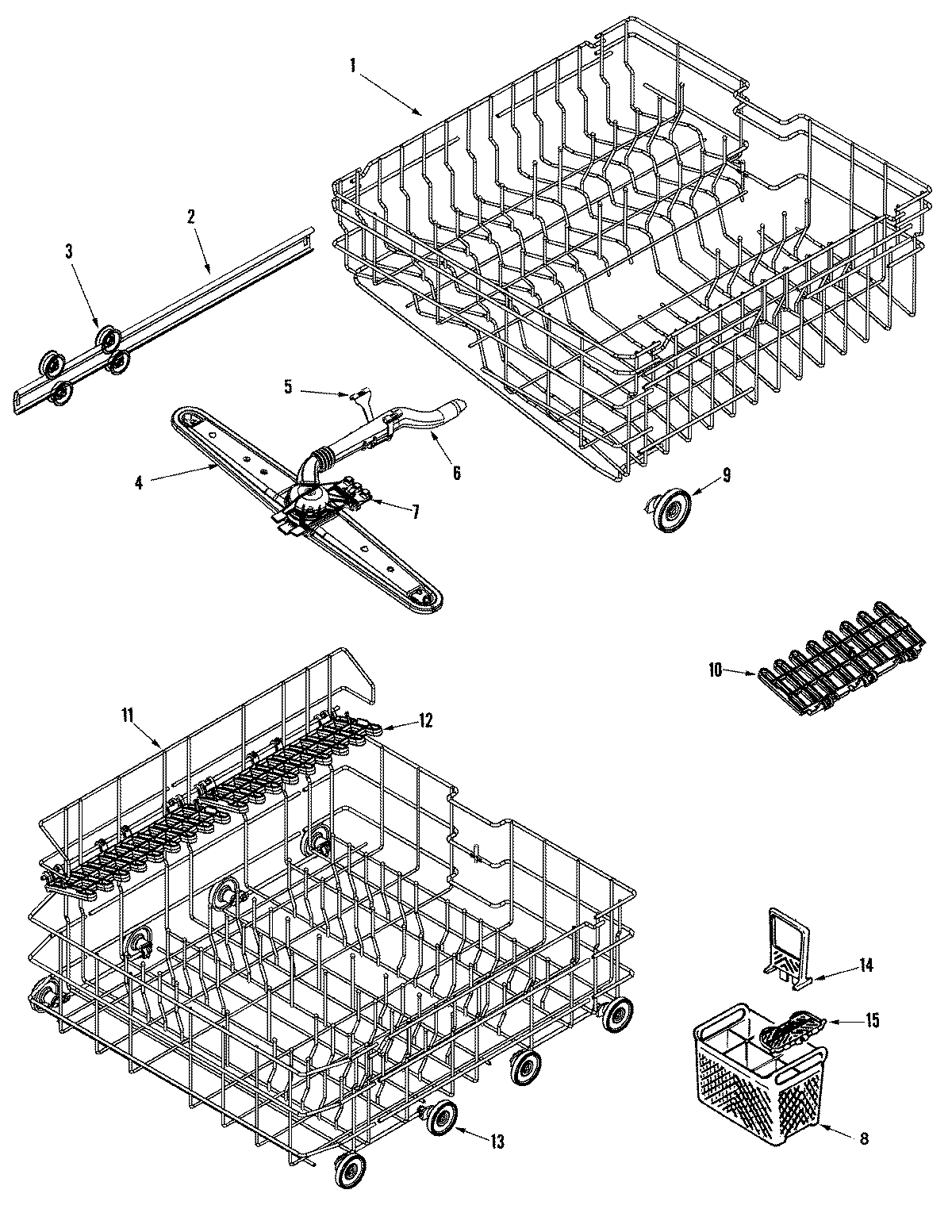

MDBTT60AWB 05 – TRACK & RACK ASSEMBLY

MDBTT60AWB 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBTT60AWB 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003218
2WPW10261227 Whirlpool Dishwasher Stop Assembly
2TRACK, RACK
3WP99002947 Whirlpool Tub Wheel
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4SCREW, TRUSS HEAD (10-18X.75)
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8WP6-918873 Whirlpool Silverware Basket
9WP99002781 Whirlpool Dishwasher Wheel
10MAY 99002671
11MAY 99002017
11MAY 99003477
12MAY 99002672
13WP99002780 Whirlpool Lower Wheel Assembly
14MAY 99002619
15MAY 99002618
