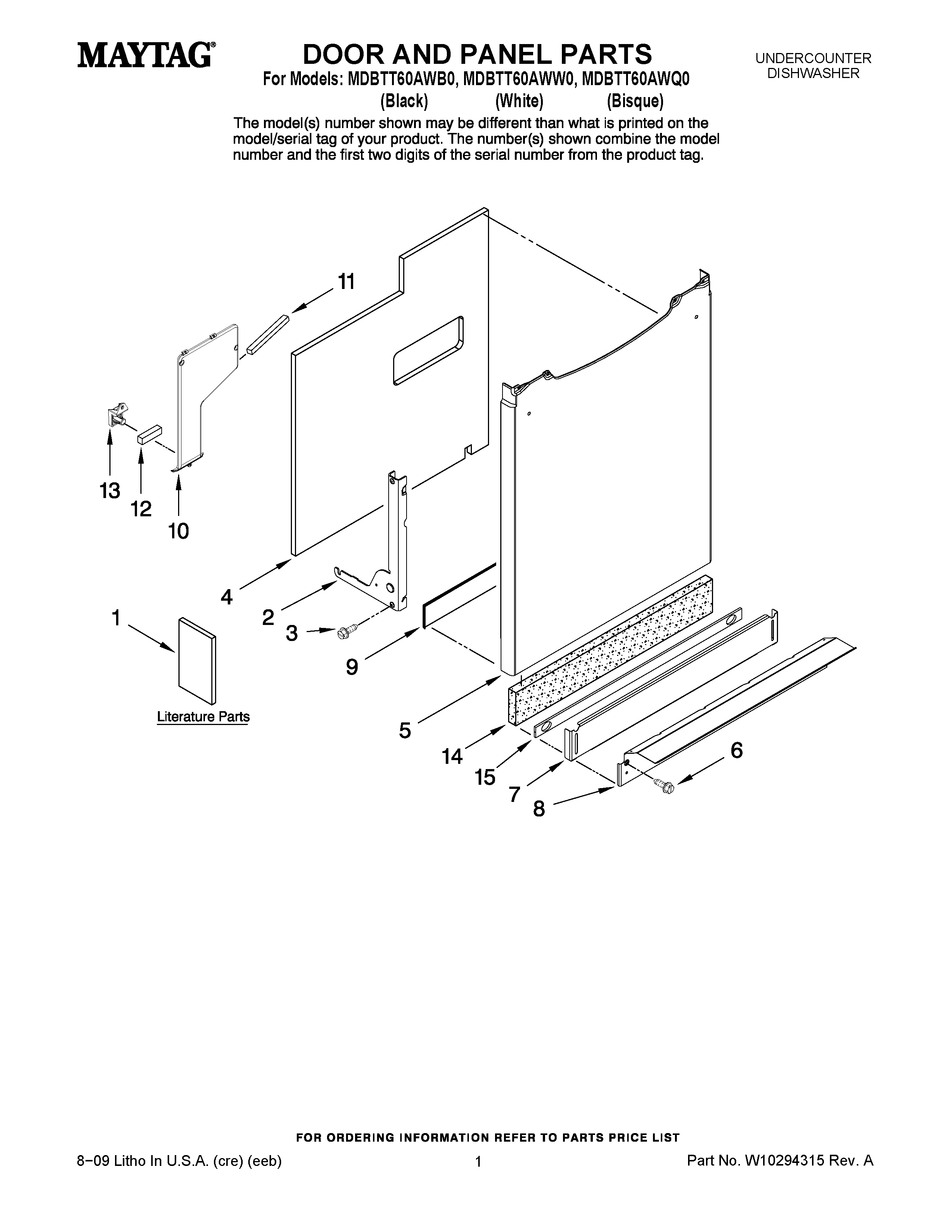

MDBTT60AWB0 01 – DOOR AND PANEL PARTS

MDBTT60AWB0 01 – DOOR AND PANEL PARTS

Written by

in

MDBTT60AWB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10157789
1MAY W10157790
1MAY W10158012
1MAY W10208026
2MAY W10202227
2MAY W10202226
3MAY 99001075
4INSULATION, DOOR
5PANEL, DECO (W/DAMPER-BLK)
5MAY 99002769
5MAY 99002770
6WP6-912366 Whirlpool Dishwasher Screw
6SCREW, ACCESS PANEL
7MAY 99002766
7PANEL, TOE (W/DAMPER-BLK)
8MAY 99002591
8MAY 99002593
9MAY W10117748
10MAY W10185633
11Foam Strip(Long)
12MAY 99003482
13MAY 99003541
14WP6-920587 Whirlpool Dishwasher Shield
15Damper, Toe Panel (Black)
15MAY 99002698
